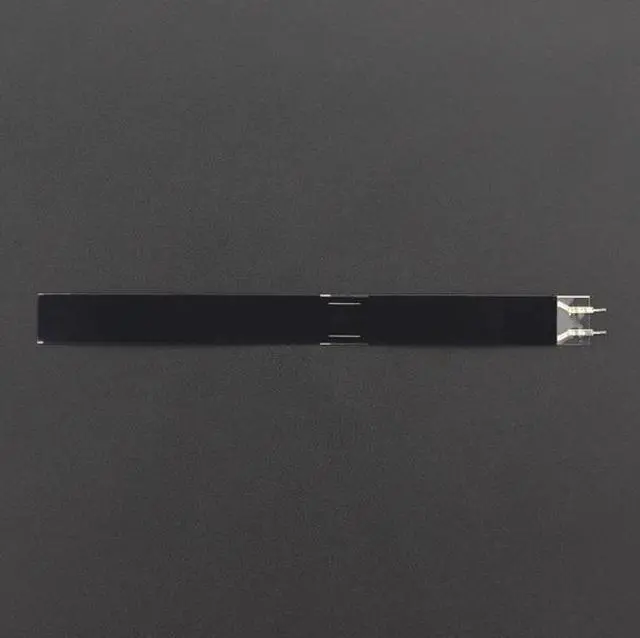

Resistance-type pressure sensor, 10Kg capacity, length 170mm

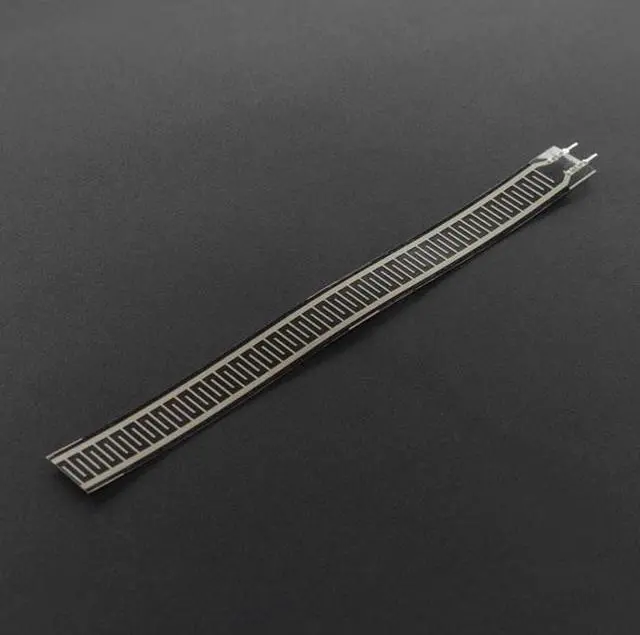

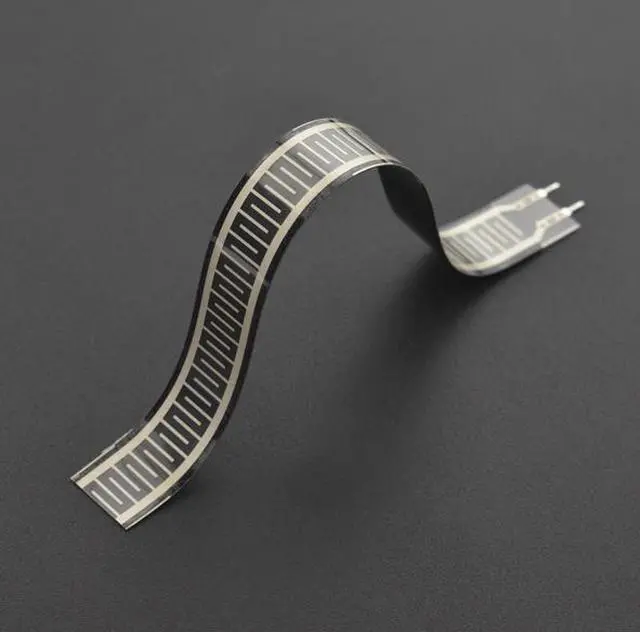

RP-L-170 is a 170mm-long flexible film pressure sensor. it is very easy to use. Just peel off the protective film and stickthe sensor onto the detection area. its application range is also quite wide.lt can be mainly used in pressure switchesbed-to-bed monitoring, smart running shoes, recording the intensity and frequency of pressure application, anddetecting the degree of pressure on the human body in medical equipment, etc. The RP-L flexible film pressure-sensitivesensor is composed of polyester film with excellent mechanical properties, high conductivity materials, and nano-levelpressure-sensitive materials. The top layer is a flexible film and the pressure-sensitive layer is laminated on it, and thebottom layer is a flexible film and the conductive circuit laminated on it. The two are bonded together by double-sidecadhesive and isolated in the sensing area, When the sensing area is under pressure, the mutually disconnected lines onthe bottom layer will conduct through the pressure-sensitive layer on the top layer, and the resistance output value atthe port changes with the pressure, and the greater the pressure, the smaller the resistance.

The RP-L flexible film pressure-sensitive sensor meets the following standards: it has both static anddynamic pressure sensing capabilities, a fast response speed, and a long durability and lifespan.
