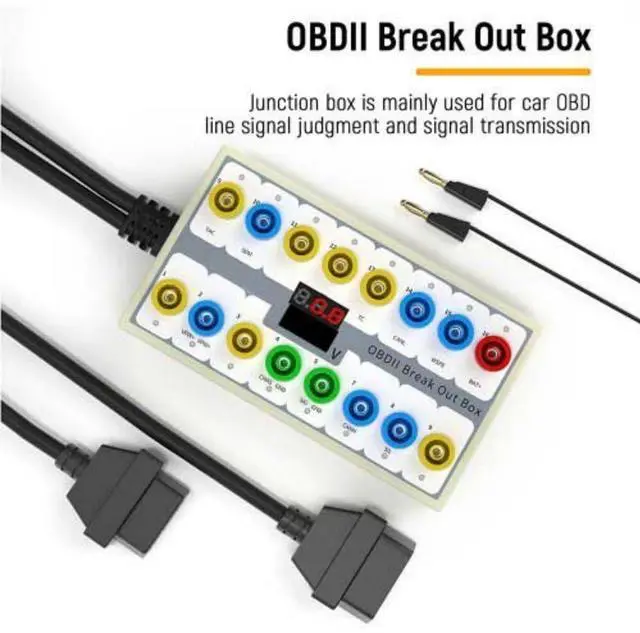

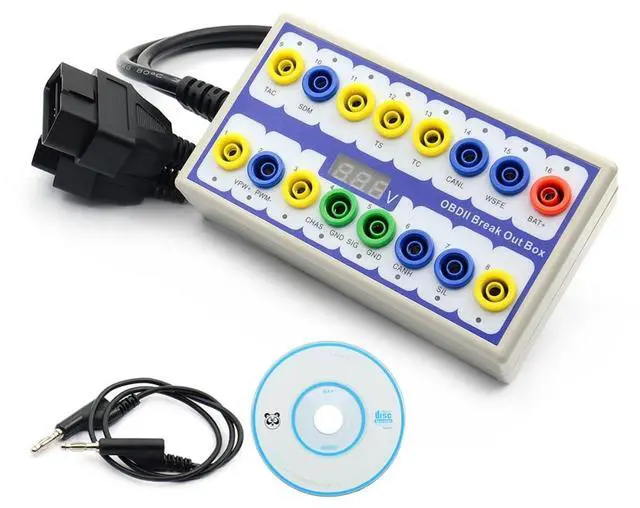

OBD2 Protocol Detector and Break Out Box, Automotive Diagnostic Tool with Signal Testing, 16-Pin Interface
- DIAGNOSTIC CAPABILITY: Professional-grade OBD2 protocol detector and breakout box for comprehensive vehicle diagnostics and signal monitoring
- COMPREHENSIVE PORTS: Features 16 color-coded test ports including CANH, CANL, VPW, PWM, ISO, and ground connections for thorough testing

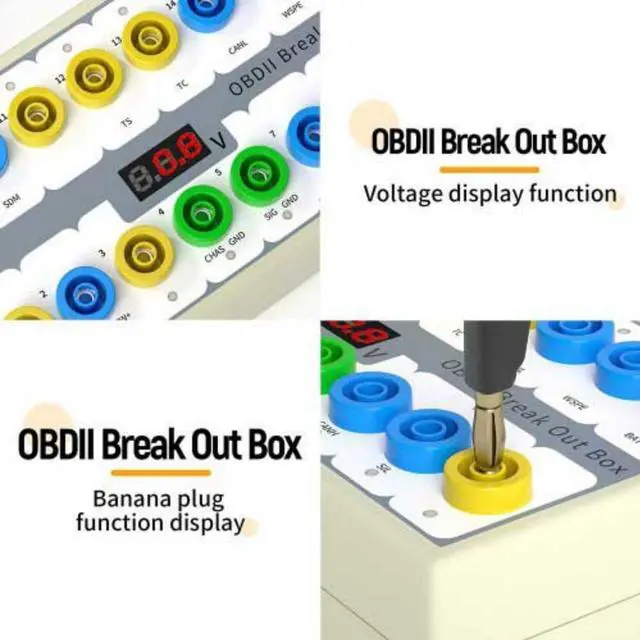

- VOLTAGE DISPLAY: Built-in digital voltage meter display for real-time signal monitoring and verification of pin outputs

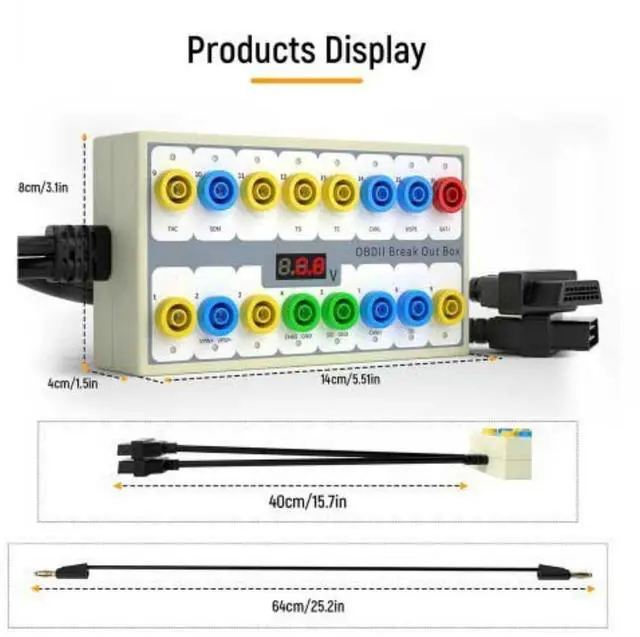

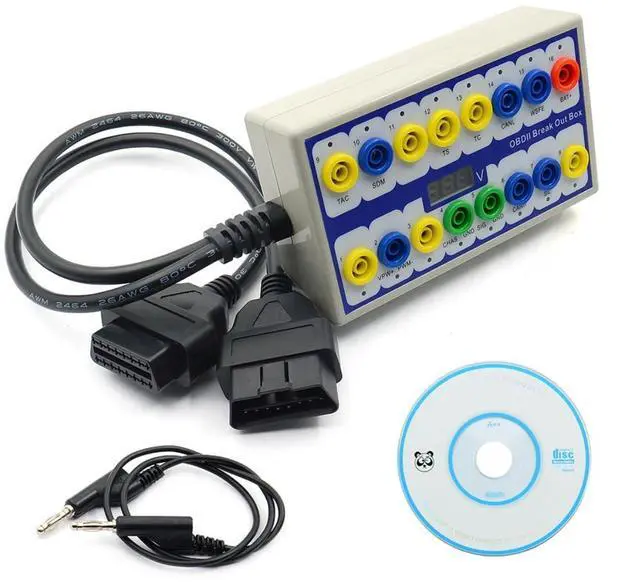

- COMPLETE KIT: Includes main breakout box unit, OBD2 connector cable, test leads, and software installation CD for full functionality
- UNIVERSAL COMPATIBILITY: Works with all OBD2 compliant vehicles for testing communication protocols and diagnosing connection issues
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This professional-grade OBDII Protocol Detector and Break Out Box is an essential diagnostic tool for automotive technicians and enthusiasts. The device features a comprehensive array of color-coded ports for easy identification and connection, including dedicated channels for CAN bus signals, ground connections, and battery monitoring. The built-in digital voltage display provides real-time readings, while the robust OBD-II connector ensures reliable communication with vehicle systems. This break out box allows for detailed signal analysis and troubleshooting of vehicle communication protocols, making it invaluable for diagnosing complex automotive electrical issues. The package includes necessary connection cables and software CD for complete functionality. Perfect for professional mechanics, automotive students, and DIY car enthusiasts who need to perform detailed diagnostic work on modern vehicles equipped with OBD-II systems.
Product Characteristics:
1. In the process of using decoder, error can be found and diagnosed OBD connector link.
2. You can monitor the OBD interface voltage and ground, showed low voltage. Display diagnostic stitching error.
3. Jump for OBD interface signals. Signal lines such as decoder of 7 to 15 vehicles online.

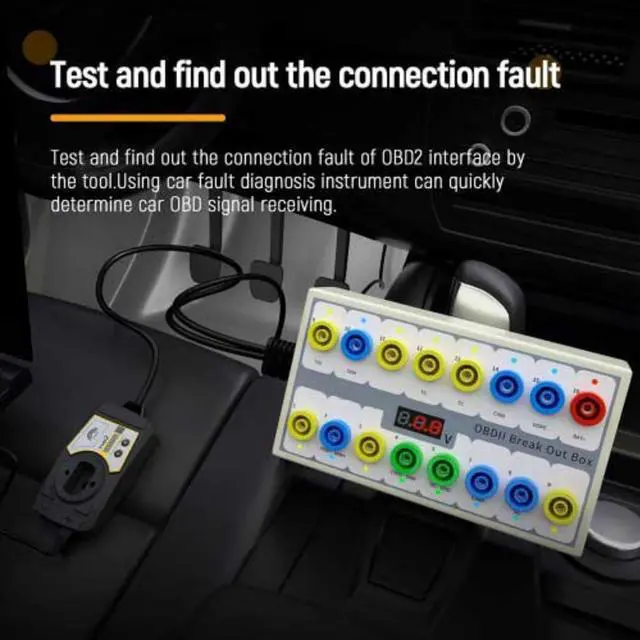

4. Rapid detection of OBD2 diagnostic connector whether every stitch of the normal communication.
5. Replace the battery, save the car data function. When replace the battery, plug OBD2 connector into the car, at the same time connect additional power to the control box, so that ensure vehicle data is not lost.
This OBDII Protocol Detector & Break Out Box has wide range of applications in diagnostics, key programming and chip tuning:
- To monitor data steam while performing test on vehicle using a Scantool. This makes it possible for you to both execute a test and simultaneously monitor the testing process.
- Display testing voltage on the car or truck
- Display communicating pin number
- Is an extension of OBD Diagnostic Link Connector (DLC)
