OBD2 Protocol Detector and Breakout Box Automotive Diagnostic Tool for Signal Testing 16-Pin Interface with Digital Voltage Display CAN Bus Monitoring OBD-II Connector Cable and Software CD
- OBD-II protocol detector and breakout box supports vehicle diagnostics, signal testing, and troubleshooting of communication connections.
- 16-pin interface with color-coded test ports helps identify CANH, CANL, VPW, PWM, ISO, ground, and other connections.
- Built-in digital voltage display shows OBD interface voltage in real time for monitoring and verifying test readings.
- Monitor OBD interface ground and battery connections while checking for low voltage and diagnostic wiring issues.
- Test OBD-II connector pins to determine whether each contact supports normal vehicle communication.
- Jump OBD interface signals, including signal lines such as decoder connections from 7 to 15 vehicles online.
- Display the communicating pin number during testing to help identify active communication connections.
- Connect the unit during battery replacement to help preserve vehicle data when additional power is supplied to the control box.
- Monitor vehicle data while conducting diagnostic tests, allowing simultaneous observation of the testing process.

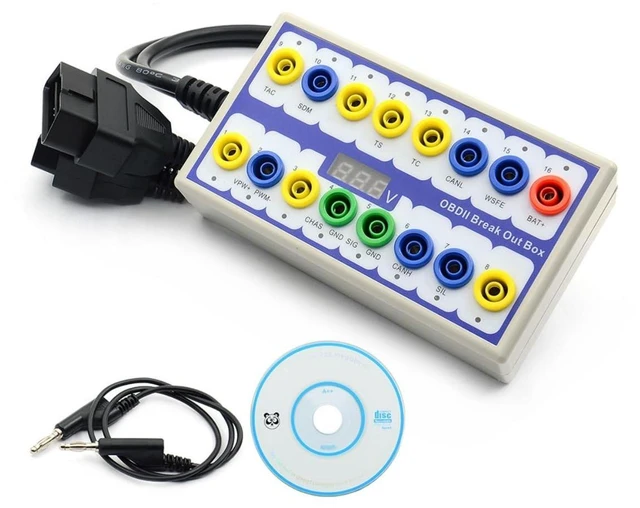

- Includes the breakout box, OBD2 connector cable, test leads, and software installation CD for the described diagnostic functions.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
The OBD2 Protocol Detector and Break Out Box is an automotive diagnostic tool designed to test OBD-II connector links, monitor communication signals, and support troubleshooting of vehicle electrical and communication issues. It provides access to a 16-pin interface for diagnostic testing on compatible vehicles.
Core Selling Points:
Color-coded test ports help identify and connect signal, ground, and battery monitoring points. The built-in digital voltage display provides real-time voltage readings during testing. The unit supports signal analysis, communication-pin identification, and rapid checking of OBD2 connector communication. It can also help preserve vehicle data during battery replacement when used with an additional power connection.
Technical Specifications:
Product type: OBD2 protocol detector and break out box. Interface: 16-pin OBD-II connector. Test ports: 16 color-coded ports, including CANH, CANL, VPW, PWM, ISO, and ground connections. Display: Built-in digital voltage display. Functions include monitoring OBD interface voltage and ground, displaying communicating pin numbers, checking signal lines, and extending the OBD Diagnostic Link Connector. Applications include vehicle diagnostics, key programming, chip tuning, signal testing, and communication protocol troubleshooting.
Package Contents:
Main break out box unit, OBD2 connector cable, test leads, necessary connection cables, and software installation CD.
Before Purchase:
For use with OBD2-compliant vehicles and OBD-II systems. Confirm that the vehicle uses the required OBD2 diagnostic connector and that the intended test application matches the available CAN, VPW, PWM, ISO, ground, and other interface connections. Additional power connection is required for the described data-preservation function during battery replacement.
