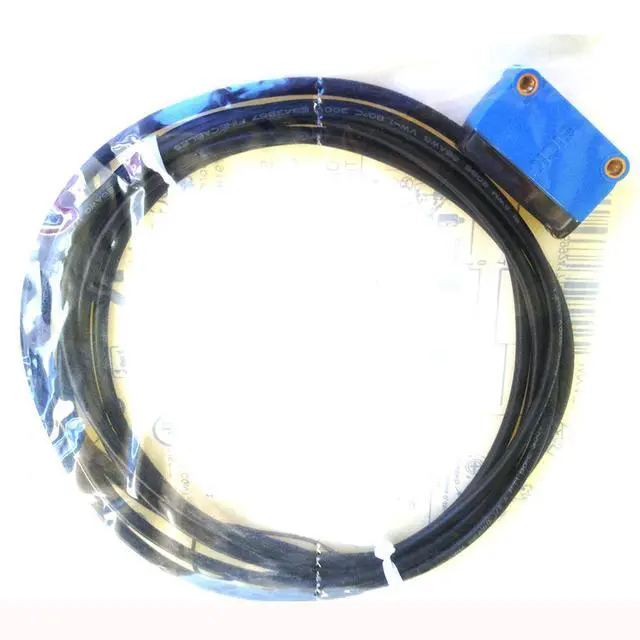

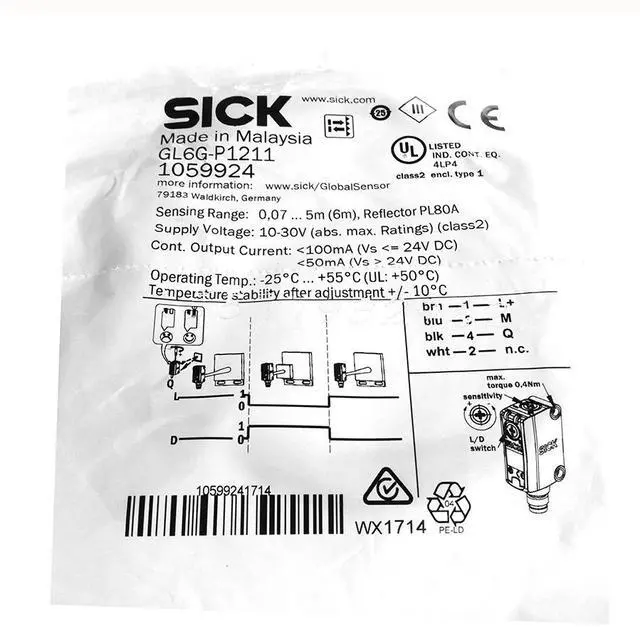

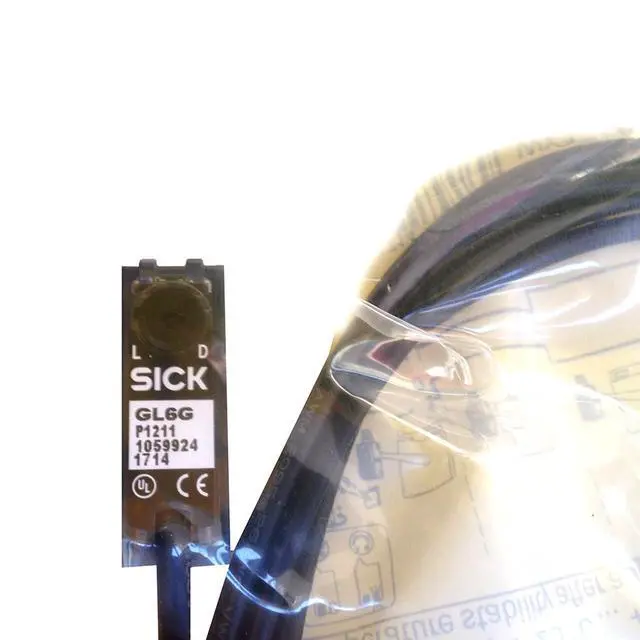

SICK GL6-P1211 Miniature Photoelectric Sensors,PNP,New

SICK GL6-P1211 Miniature Photoelectric Sensors, PNP, New
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

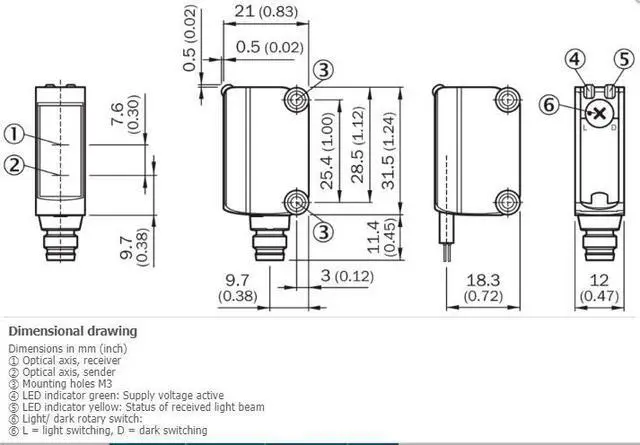

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Housing design (light emission) Rectangular
Sensing range max. = 6 m 1)
Sensing range = 5 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 8 mm (350 mm)
Wave length 650 nm
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V
Output current Imax. = 100 mA 4)
Response time < 625 µs 5)
Switching frequency 1, 000 Hz 6)
Connection type Cable, 3-wire, 2 m 7)
Cable material PVC
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 60 g
Polarisation filter?
Housing material Plastic, ABS/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature 25 °C... +55 °C 11)
Ambient storage temperature 40 °C... +70 °C
