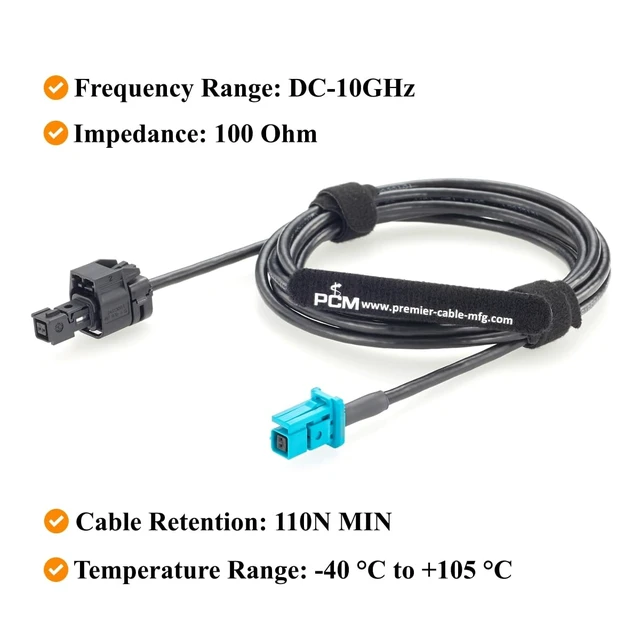

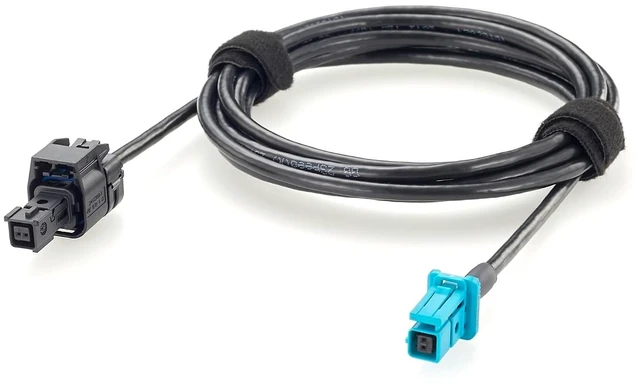

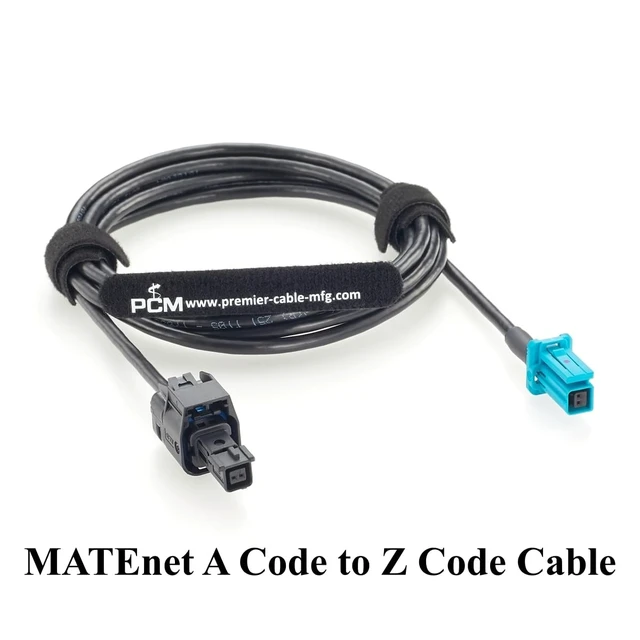

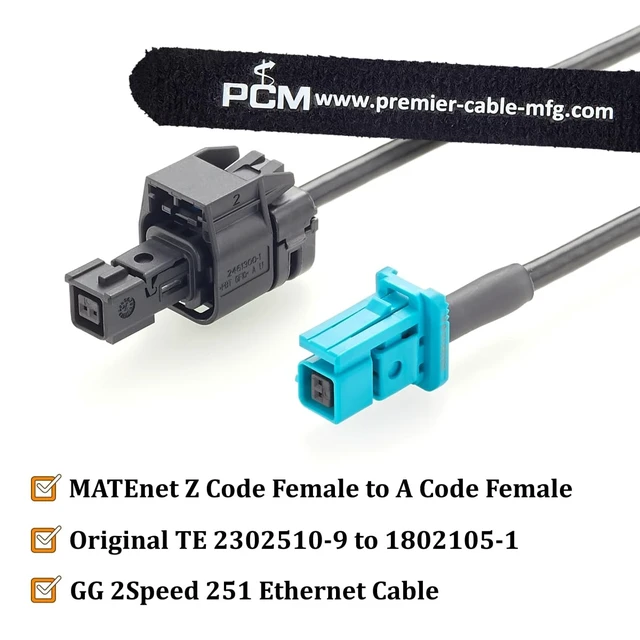

TE MATEnet Z Code Female to A Code Female Automotive Ethernet Cable (2M)
- Original Connector MATEnet Automotive Ethernet Cable, equipped with IP67 TE MATEnet A Code Female Connector (1802105-1) on one end, and TE MATEnet Z Code Female Connector (2302510-9) on the other, providing secure locking, vibration resistance and dependable automotive-grade connectivity.; 10Gbps High Speed IP67 Waterproof MATEnet A Code to Z Code Automotive Wiring Harness, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; 100 Ohm & DC10GHz The IP67 MATEnet A Code to Z Code Automotive Ethernet Cable features GG 2Speed 251 shielded twisted-pair cable, support 100 Ohm impedance and a DC10 GHz frequency range, and helps reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).; IP67 Waterproof & Automotive-Grade This 10Gbps automotive high-speed data cable provides IP67-rated protection against water and dust ingress when properly mated and installed, with 500 VRMS dielectric withstand, 110N cable retention, and an operating temperature range of -40°C to +105°C.; Wide Applications MATEnet Female to Female Automotive Ethernet Cable, ideal for automotive ethernet networks, ADAS, ECUs, automotive camera, radar, LiDAR, vehicle networking, autonomous driving, infotainment, telematics, sensor, vehicle gateways, domain controllers, digital cockpits, prototype development, and automotive R&D.; Custom Cable
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification: Product
Name: IP67 Waterproof MAT
Enet Z Code Female to A Code Female Automotive Ethernet Cable, 2302510-9 to 1802105-1
Part No.: PCM-ZC-0221
Cable Length: 2M/ 6.6FT

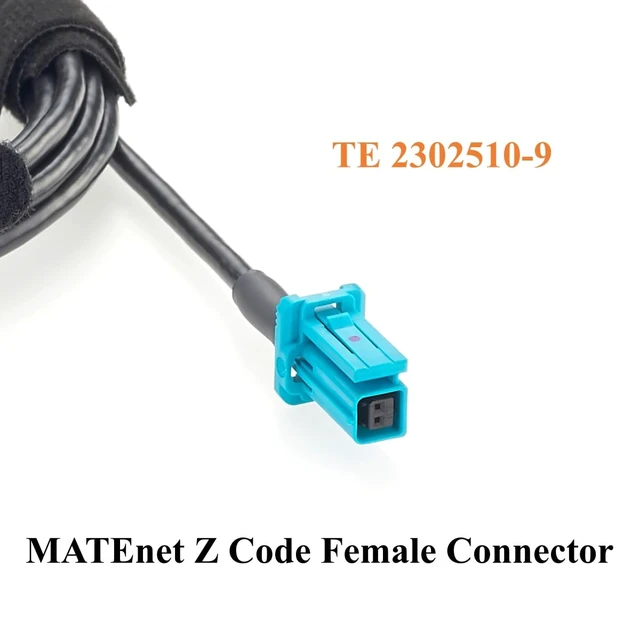

Connector A: MAT
Enet Z Code Female Connector, TE 2302510-9
Connector B: MAT
Enet A Code Female Connector, IP67 Waterproof, TE 1802105-1
Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C

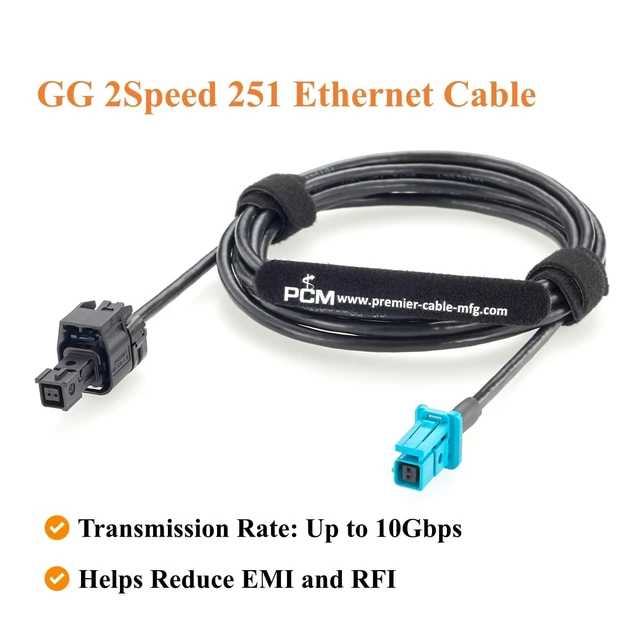

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10Gbps
Name: IP67 Waterproof MAT
Enet Z Code Female to A Code Female Automotive Ethernet Cable, 2302510-9 to 1802105-1
Part No.: PCM-ZC-0221
Cable Length: 2M/ 6.6FT
Connector A: MAT
Enet Z Code Female Connector, TE 2302510-9
Connector B: MAT
Enet A Code Female Connector, IP67 Waterproof, TE 1802105-1
Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10Gbps
