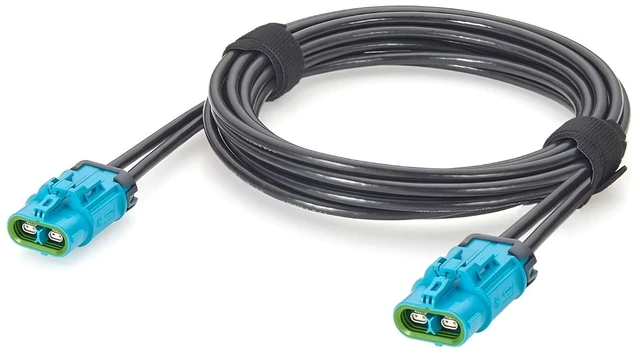

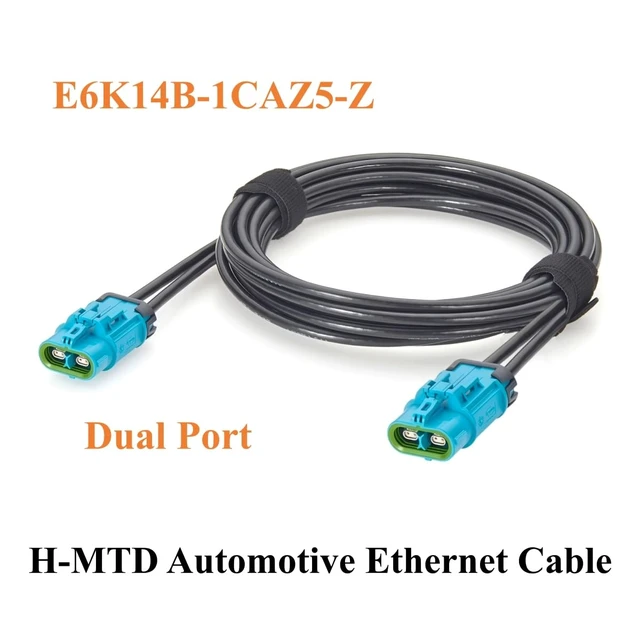

IP67 2-in-1 H-MTD Z Code Female to Female Automotive Ethernet Cable (2M)
- Original 2-in-1 Rosenberger H-MTD Connector 2-in-1 H-MTD Female to Female Automotive Ethernet Cable, equipped with IP67 Rosenberger Dual-Cavity H-MTD Z Code Female Connectors on both ends (E6K14B-1CAZ5-Z). Universal Z coding design to prevent mis-mating.; 10Gbps High Speed Waterproof Rosenberger H-MTD Vehicle Network Cable, supports up to 10Gbps high-speed data transmission with 100/1000BASE-T1 compatibility, ensuring ultra-low latency and stable communication for ADAS, autonomous driving, and ECU systems.; 100 Ohm & DC10GHz The H-MTD Automotive Wiring Harness, built with GG 2Speed 251 shielded twisted-pair cable, Support 100 Ohm Impedance and DC-10GHZ Frequency, resist electromagnetic interference (EMI/RFI).; IP67 Waterproof & Automotive-Grade 10Gbps High-Speed Data Harness, delivers IP67 level protection against water, dust, vibration, and harsh environmental conditions. features 500 VRMS dielectric strength and 110N cable retention, providing superior resistance to vibration and mechanical stress, with an operating temperature range of -40°C to +105°C.; Applications The Dual Port H-MTD Car Ethernet Cable, ideal for Automotive Ethernet networks, ADAS, robotaxi, autonomous driving platforms, vehicle networking, LiDAR, radar, ECU, automotive cameras, domain controllers, automotive sensor networks, infotainment, telematics, GPS Navigation, vehicle prototypes, gateway bench testing, automotive R&D or testing, and other high-speed in-vehicle data applications.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

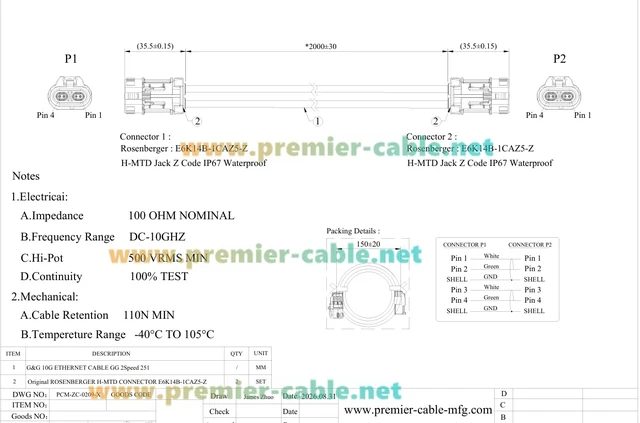

Specification: Product
Name: IP67 Waterproof 2-in-1 H-MTD Z Code Female to Female Automotive Ethernet Cable, Rosenberger E6K14B-1CAZ5-Z
Part No.: PCM-ZC-0209
Cable Length: 2m/ 6.6FT

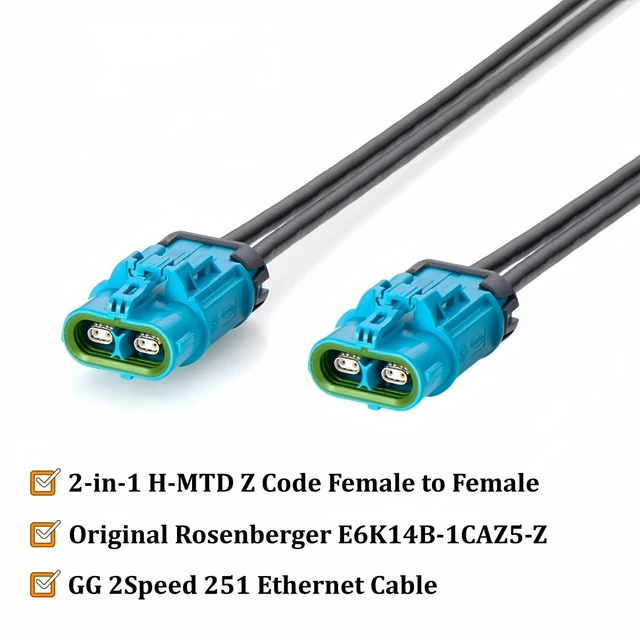

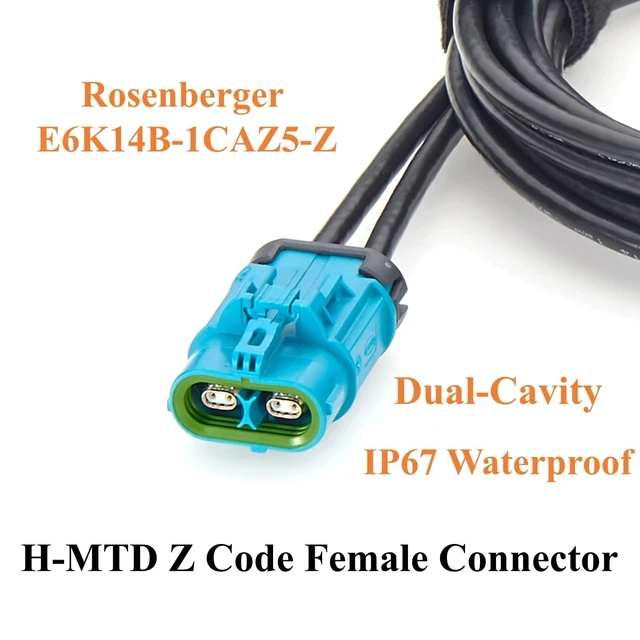

Connector A: 2-In-1 H-MTD Z Code Female Connector, IP67 Waterproof, Rosenberger E6K14B-1CAZ5-Z
Connector B: Dual-Cavity H-MTD Z Code Female Connector, IP67 Waterproof, Rosenberger
E6K14B-1CAZ5-Z Impedance: 100 Ohm

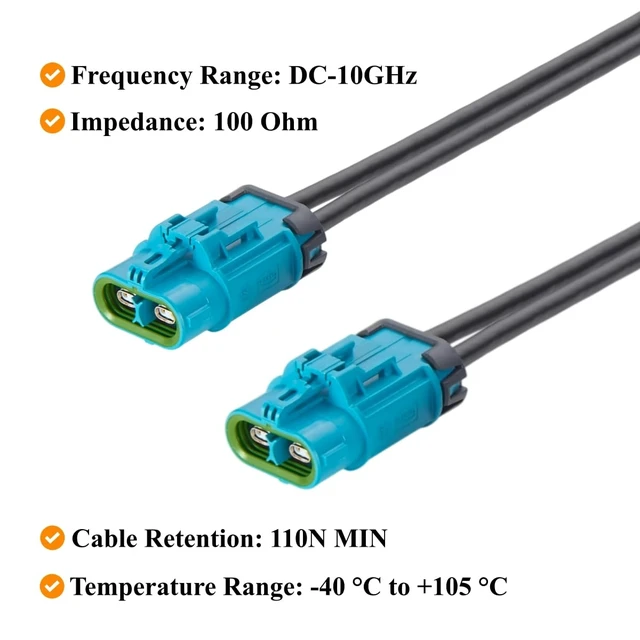

Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C

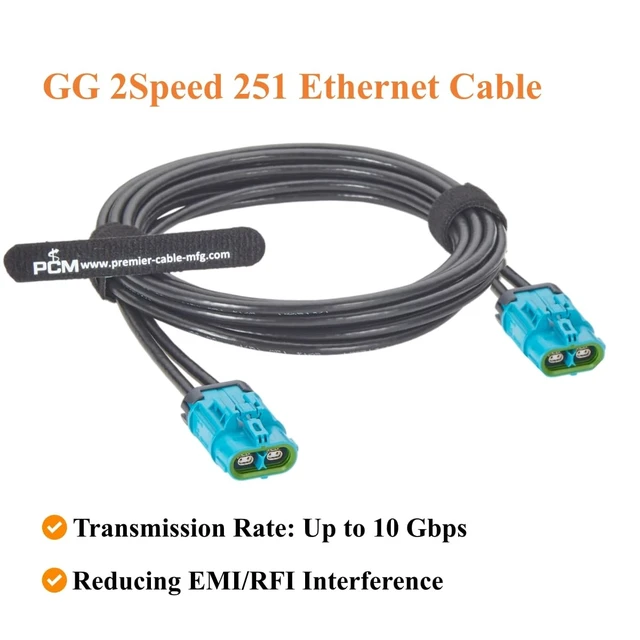

Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
Name: IP67 Waterproof 2-in-1 H-MTD Z Code Female to Female Automotive Ethernet Cable, Rosenberger E6K14B-1CAZ5-Z
Part No.: PCM-ZC-0209
Cable Length: 2m/ 6.6FT
Connector A: 2-In-1 H-MTD Z Code Female Connector, IP67 Waterproof, Rosenberger E6K14B-1CAZ5-Z
Connector B: Dual-Cavity H-MTD Z Code Female Connector, IP67 Waterproof, Rosenberger
E6K14B-1CAZ5-Z Impedance: 100 Ohm
Frequency Range: DC-10GHz
Hi-Pot: 500 VRMS MIN
Cable Retention: 110N MIN
Operating Temperature Range: -40°C to +105°C
Wire: GG 2Speed 251 Ethernet
Cable Transmission Rate: Up to 10 Gbps
