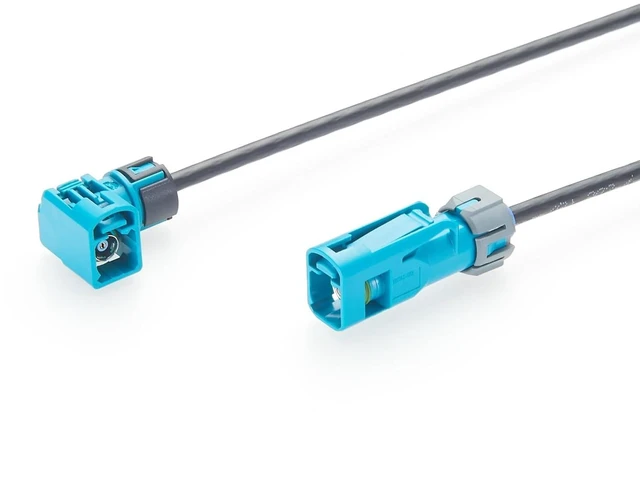

IP67 Left Angle Fakra Z Code Female to Female RF Coaxial Cable (Left, 2M)
- Original Connector IP67 Waterproof FAKRA Z Code Female to Female Cable, Both Equipped with Original Rosenberger Fakra Z Code Female Connector. One end is Straight (59Z163-003-Z); the Other End is Left Angle (59K2LK-102A4-Z).; Left Angle Design 59K2LK-102A4-Z Rosenberger Fakra Z Code Female Connector, Left Outlet 90 Degree Configuration, allows flexible installation in tight spaces.; IP67 Waterproof & Shielded Cable The FAKRA Z Code Female Connector Rated for IP67, Preventing Water, Dust from entering. The Vehicle Car GPS Antenna Extension Cable With LEONI DACRA 462 Coaxial shielded cable, 50 Impedance, DC-6GHZ Frequency, and minimizing electromagnetic interference (EMI) and radio frequency interference (RFI).; Applications Rosenberger Fakra Z Code Automotive RF Coaxial Cable, for ADAS, In-Vehicle Infotainment (IVI), FPD-Link/GMSL Cameras, Telematics, GPS Navigation, 360° Surround-View Cameras, Satellite Radio Antenna, Wireless Communication, 4G LTE, Bluetooth, Radar Systems and So on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification: Product
Name: Left Angle Fakra Z Code IP67 Waterproof RF Cable Assembly
Part No.: PCM-ZC-0096
Connector A: IP67 FAKRA Z Code Female Connector, Straight, Original Rosenberger 59Z163-003-Z
Connector B: IP67 FAKRA Z Code Female Connector, Left Angle, Original Rosenberger 59K2LK-102A4-Z
Waterproof Rating: IP67
Length: 2M/ 6.6FT, 6m
Optional Impedance: 50 Ohm
Frequency Range: DC to 6GHz
Temperature Range: -40 °C to +105 °C
VSWR: 1.800
MAX Hi-Pot: 800
VRMS MIN Wire: LEONI DACAR 462 Coaxial Cable
Name: Left Angle Fakra Z Code IP67 Waterproof RF Cable Assembly
Part No.: PCM-ZC-0096
Connector A: IP67 FAKRA Z Code Female Connector, Straight, Original Rosenberger 59Z163-003-Z
Connector B: IP67 FAKRA Z Code Female Connector, Left Angle, Original Rosenberger 59K2LK-102A4-Z
Waterproof Rating: IP67
Length: 2M/ 6.6FT, 6m
Optional Impedance: 50 Ohm
Frequency Range: DC to 6GHz
Temperature Range: -40 °C to +105 °C
VSWR: 1.800
MAX Hi-Pot: 800
VRMS MIN Wire: LEONI DACAR 462 Coaxial Cable
