CARROFIX RV Blade 7 Way Round Trailer Connector - 7 Pin Trailer Light Adapter Plug
- Featuers - This 7-way round RV-style, 7-pole connector provides a secure connection between your trailer and tow vehicle, it is widely used on RV camper horse trailers

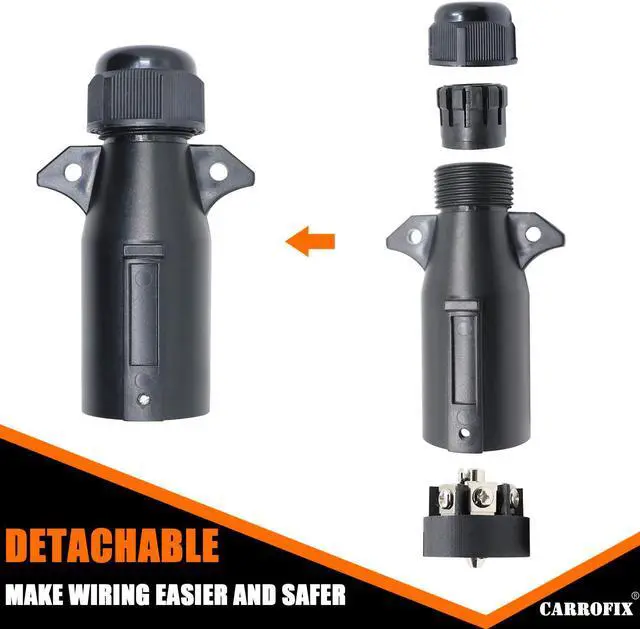

- Weatherproof Design - This 7-way blade connector is different from others on the market, constructed with detachable hardware design for easily splicing and well protect the terminals from the bad weather and hazardous road conditions
- Reliable Connection - This standard 7-way wiring connector is designed to connect your trailer to the 7-way round blade connector of your tow vehicle to supply power for tail lights, turn signals, electric trailer brakes, as well as a ground connection
- Durable Construction - Heavy duty molded construction, solid ABS plastic housing, features waterproof, corrosion resistance, easy setup. Over-sized finger grips for secure disconnections, enhances appearance and makes plug removal a snap
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Replacement 7-Way Round RV Style Trailer Connector This standard 7-pole plug connects trailer to socket on tow vehicle. The waterproof design is going to keep dust and moisture out of the connection points once you have your wires ran through.

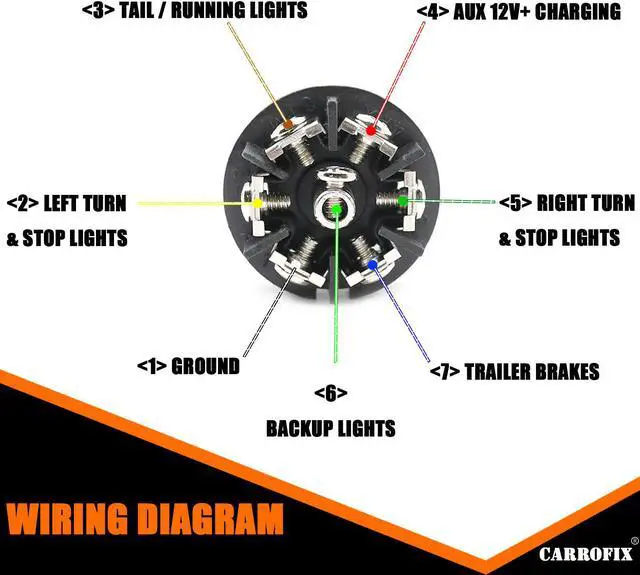

Wiring Configuration:
Blue: Electric brake
Green: Right turn signal and brakes
Red: Auxiliary 12V+ and reverse lights
Brown: Tail / running lights
Yellow: Left turn signal and brakes
White: Ground wire
Wiring Configuration:
Blue: Electric brake
Green: Right turn signal and brakes
Red: Auxiliary 12V+ and reverse lights
Brown: Tail / running lights
Yellow: Left turn signal and brakes
White: Ground wire
