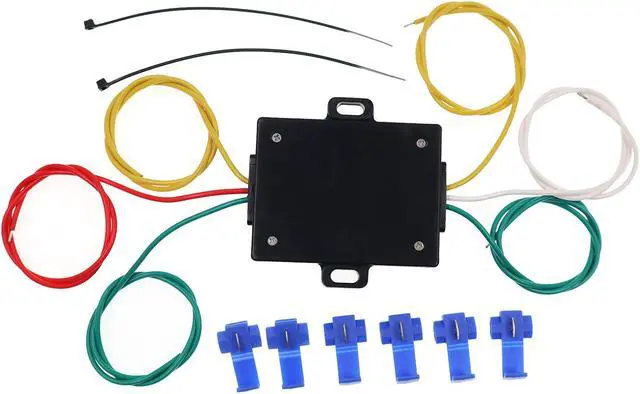

CARROFIX LED Compatible 2 Wire to 3 Wire Trailer Tail Light Converter Electrical Adapter
- This tail light converter converts standard motor-home or camper taillight wiring (2-wire system) to towed vehicles with separate turn and stop lights (3-wire system)
- This trailer electrical converter is designed to splice directly into the tail light wiring, rather than plug into various sockets, which offers a reliable, long-term connector solution
- For import and domestic vehicles requiring a 2-to-3-wire taillight converter to ensure proper towed vehicle light functions when tow vehicle has a different lighting system
- All solid state components in converter will not work with low-side switch or multiplex systems, cannot be reversed to convert a 3-wire tow vehicle to a 2-wire towed vehicle
- This trailer light converter cannot be installed backwards, meaning the input going to the output side to covert a tow vehicle down
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

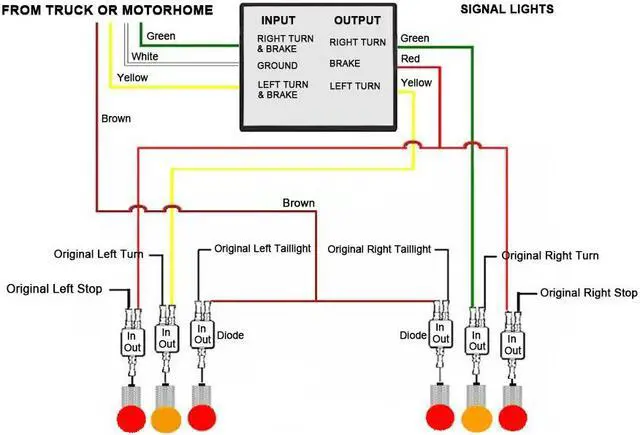

CARROFIX - 2 WIRE TO 3 WIRE TAILLIGHT CONVERTER This electrical tail light converter is designed for use with import and domestic vehicles requiring a taillight converter to ensure proper towed vehicle light functions when tow vehicle has a different lighting system. It's basically used when your towing vehicle has the 2-wire system and the vehicle being towed is on the 3-wire system, where the vehicle usually have amber turn signal separate from the break signals, this vehicle-to-vehicle tail light converter will need to be use.

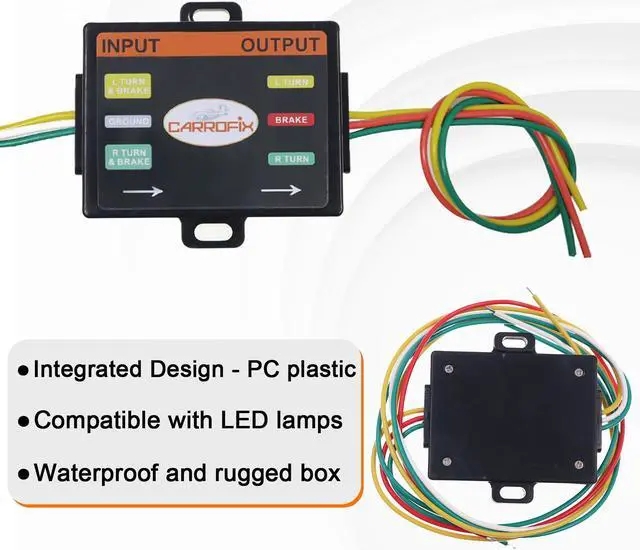

FEATURES: 2 Wire to 3 wire taillight converter - 2.1 Amps per circuit Converts a 2-wire electrical system to 3-wire Constructed w/SMT circuitry for better performance No heavy-duty flasher or direct battery connection required Color-coded wires for easier installation

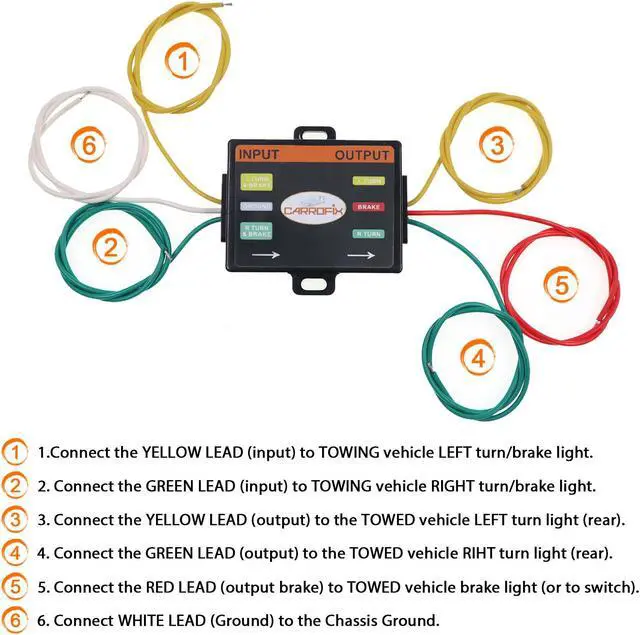

INSTALLATION INSTRUCTION
: ****Position this converter securely at the rear of the TOWING vehicle*****
Connect the Yellow Lead (input) to TOWING vehicle's LEFT turn/brake light
Connect the Green Lead (input) to TOWING vehicle's RIGHT turn/brake light
Connect the White Lead (ground) to the Chassis of the TOWING vehicle. (Towed vehicle connection must include ground)
Connect the Yellow Lead (output) to the TOWED vehicle's LEFT turn light (rear)
Connect the Green Lead (output) to the TOWED vehicle's RIGHT turn light (rear)
Connect the Red Lead (output brake) to TOWED vehicle's brake light (or to switch)
FEATURES: 2 Wire to 3 wire taillight converter - 2.1 Amps per circuit Converts a 2-wire electrical system to 3-wire Constructed w/SMT circuitry for better performance No heavy-duty flasher or direct battery connection required Color-coded wires for easier installation
INSTALLATION INSTRUCTION
: ****Position this converter securely at the rear of the TOWING vehicle*****
Connect the Yellow Lead (input) to TOWING vehicle's LEFT turn/brake light
Connect the Green Lead (input) to TOWING vehicle's RIGHT turn/brake light
Connect the White Lead (ground) to the Chassis of the TOWING vehicle. (Towed vehicle connection must include ground)
Connect the Yellow Lead (output) to the TOWED vehicle's LEFT turn light (rear)
Connect the Green Lead (output) to the TOWED vehicle's RIGHT turn light (rear)
Connect the Red Lead (output brake) to TOWED vehicle's brake light (or to switch)
