CARROFIX RV Blade 7-Way Replacement Trailer Socket - Vehicle End 7-Pin Trailer Light Connector Adapter
- Main Features - Upgraded vehicle-side 7 pole connector socket; Solid black plastic housings; Impact and corrosion resistant; Quick and easy to install

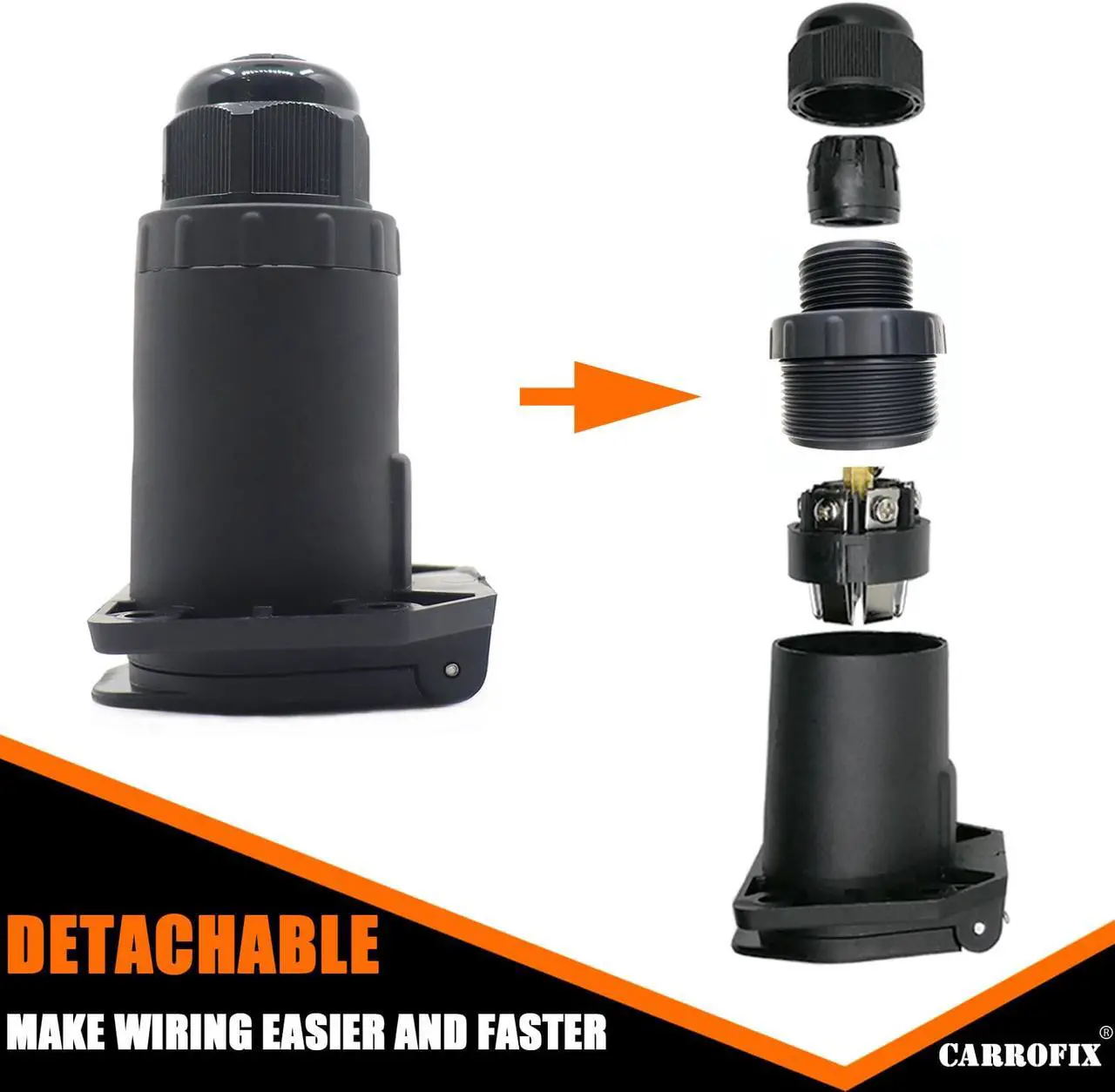

- Unique Design - This 7-way blade socket is different from others on the market, constructed with detachable hardware design for easily splicing and well protect the terminals from the bad weather and hazardous road conditions
- Reliable Connection - This standard 7-way wiring connector is designed to mount on the vehicle-side to provide a connection for a trailer plug, it is usually used to connect the taillights, brake lights, reverse lights, turn signals, trailer brakes and auxiliary power

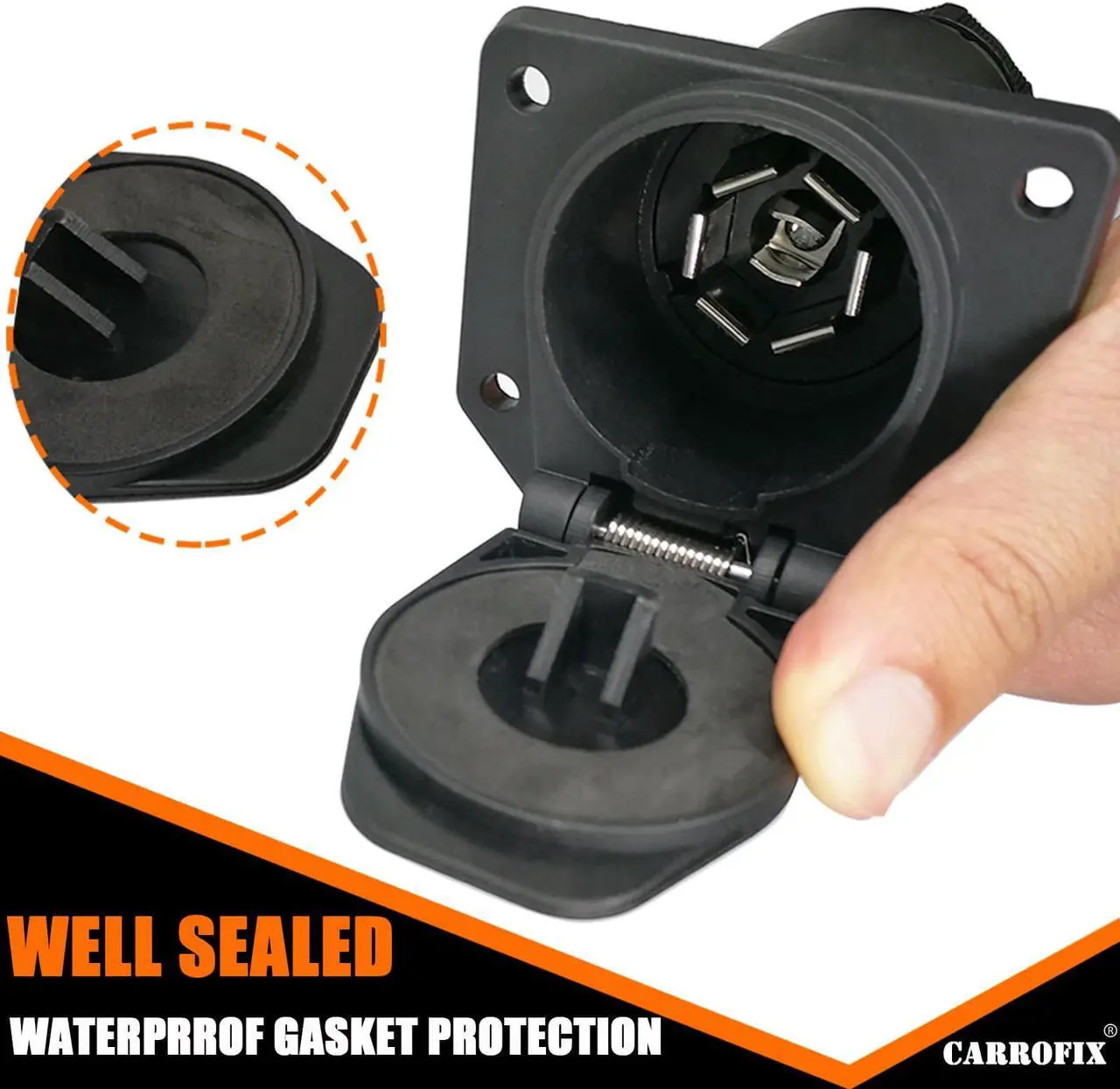

- An additional mat attached to the spring-loaded cover can effectively strengthen the waterproof protection, keeping the COPPER points safe from dirt, rain, corrosion, greatly extending the service life, typically used on RV travel trailers, as well as larger utility trailers and boat trailers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

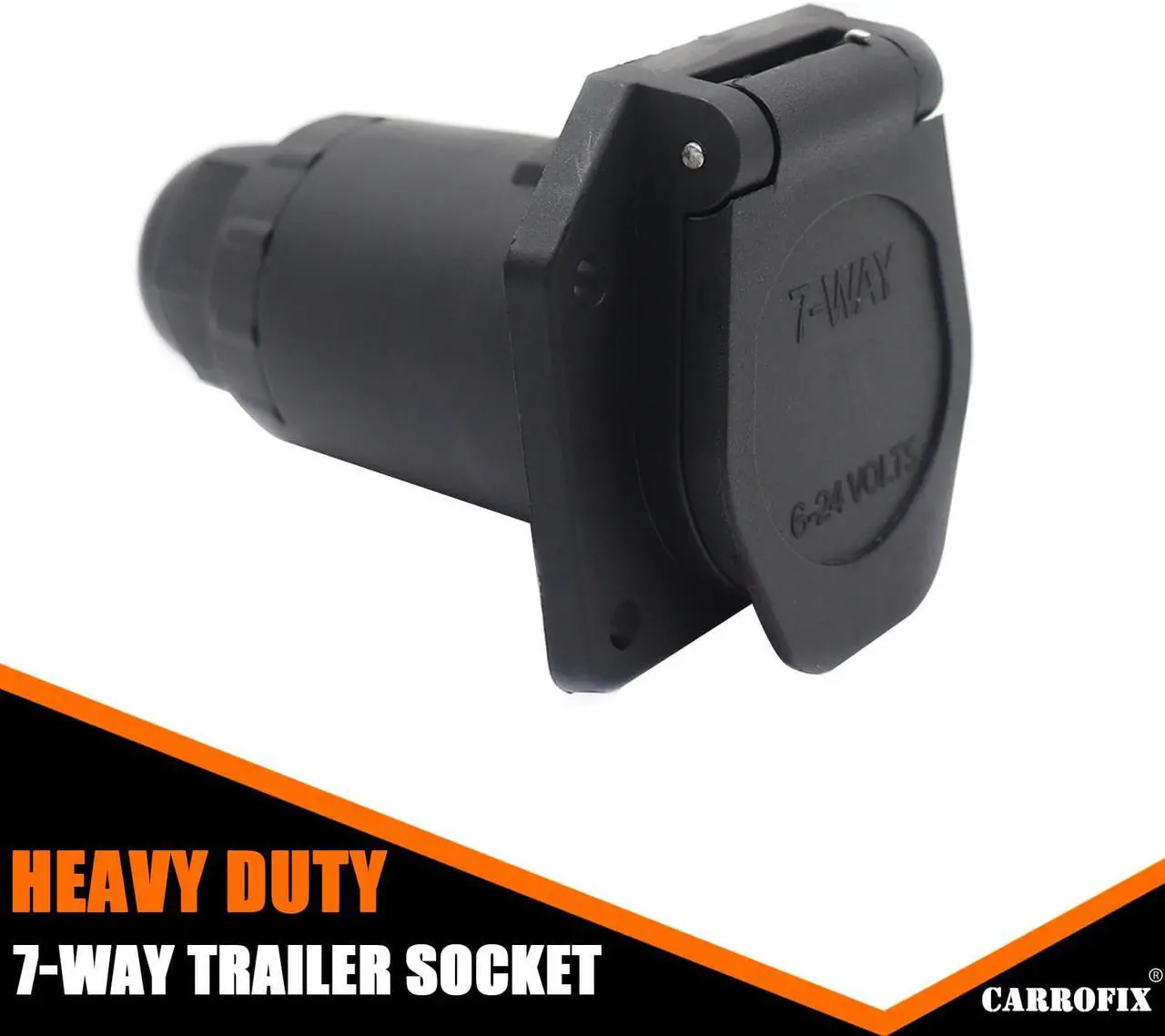

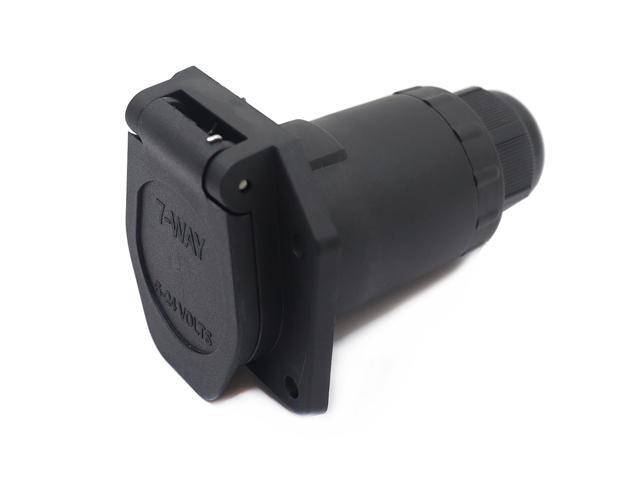

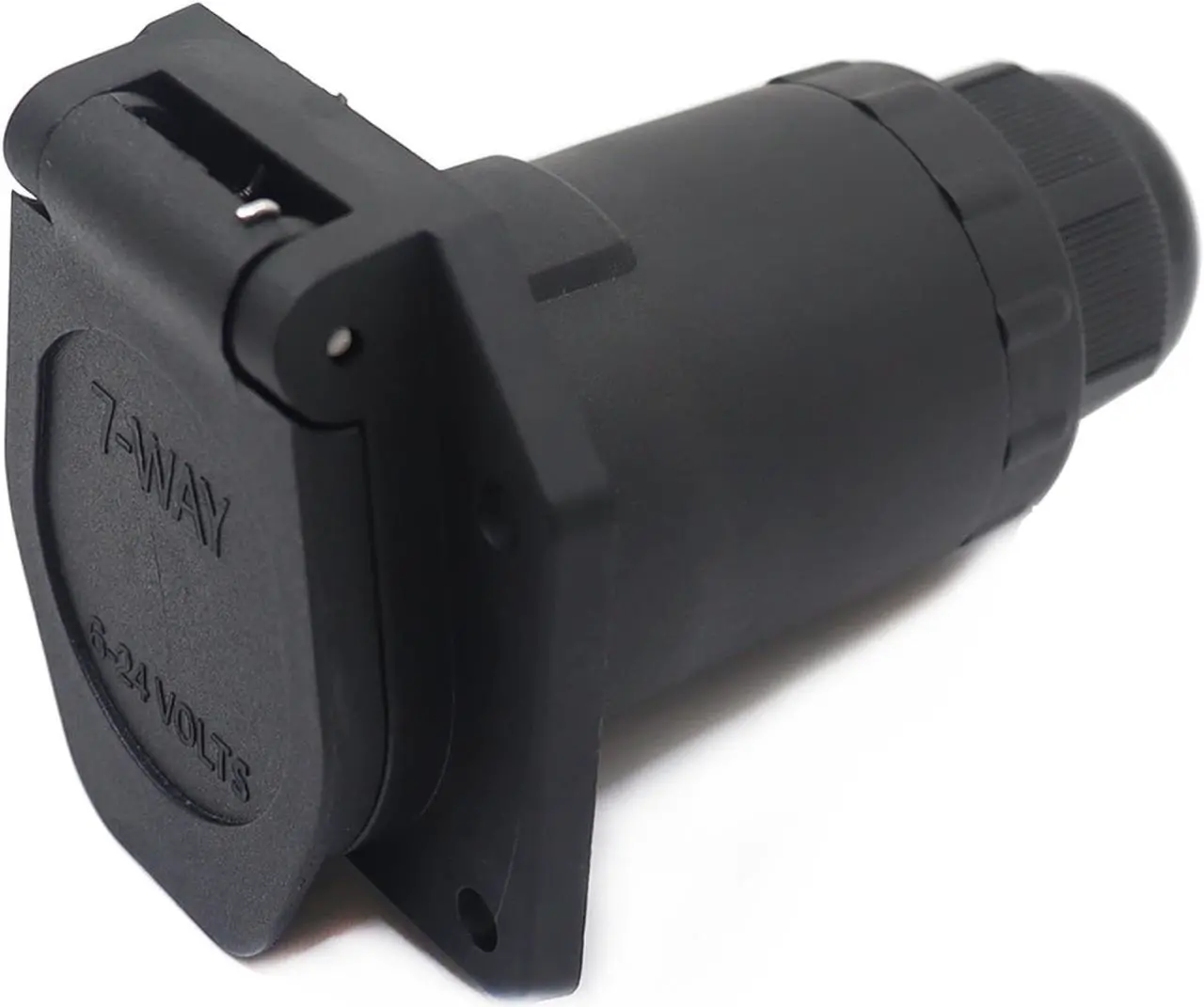

Heavy-Duty Vehicle-Side 7-Way Blade Trailer Connector Socket
This 7 way RV-style socket will help you establish a secure connection between your towing vehicle and your trailer, it provides a connection for the taillights, turn signals, brake lights, backup or reverse lights, electric trailer brakes and a 12-volt battery. It also provides a connection for the ground wire. Constructed from durable black molded plastic to be impervious to rust, and it features a dust cap with a waterproof gasket and water-resistant insert to keep out rain. Most of all, unique detachable design make wiring easier and faster.

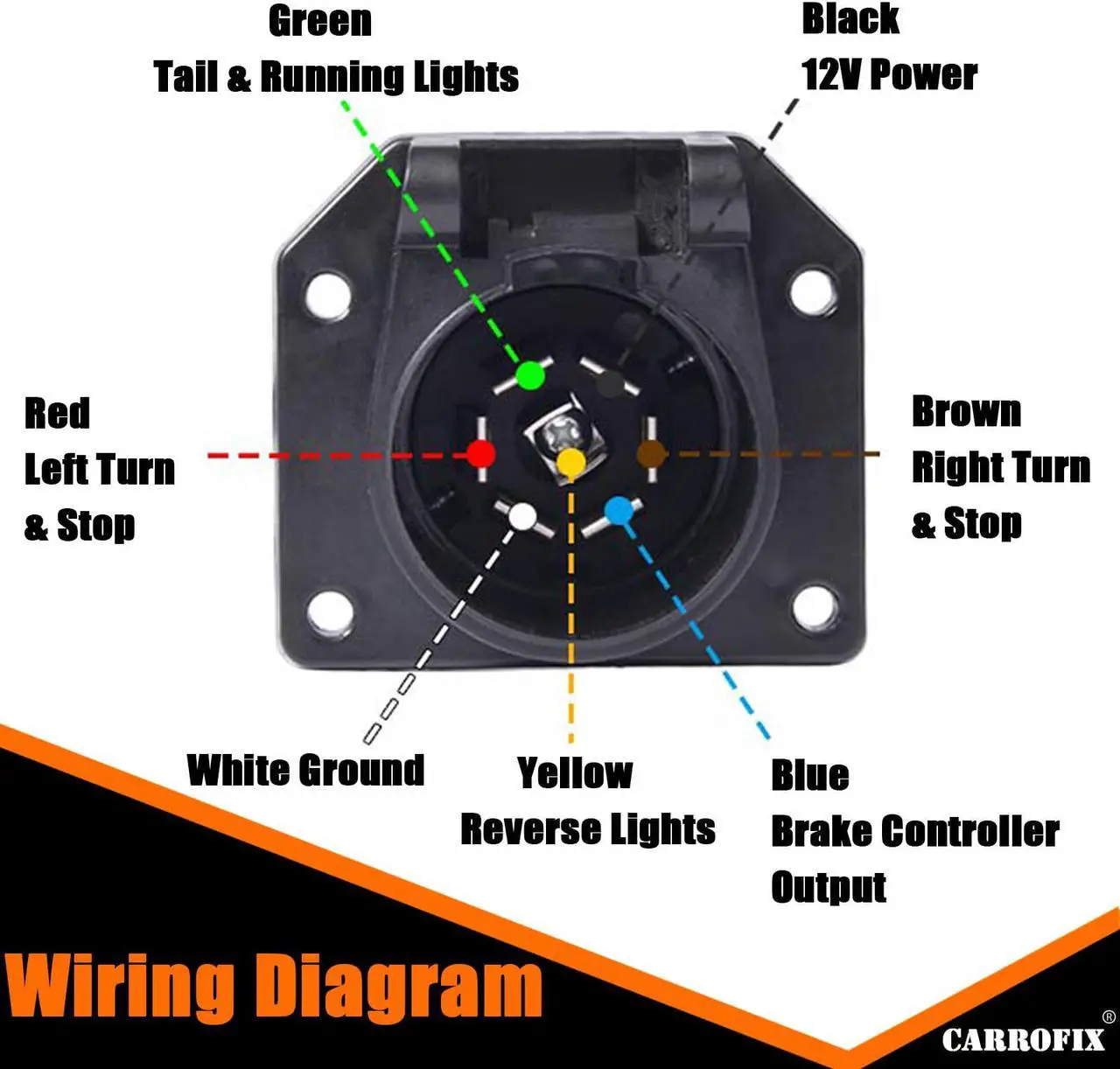

Wiring Specification
Color - circuit - recommended wire gauge:
White - Ground - 10 gauge
Blue - Electric Brake - 12 gauge
Green - Tail, License, and Running Lights - 14 gauge
Black - Battery Charge - 10 gauge
Red - Stop and Left Turn Signal - 14 gauge
Brown - Stop and Right Turn Signal - 14 gauge
Yellow - Auxiliary Circuit - 14 gauge
This 7 way RV-style socket will help you establish a secure connection between your towing vehicle and your trailer, it provides a connection for the taillights, turn signals, brake lights, backup or reverse lights, electric trailer brakes and a 12-volt battery. It also provides a connection for the ground wire. Constructed from durable black molded plastic to be impervious to rust, and it features a dust cap with a waterproof gasket and water-resistant insert to keep out rain. Most of all, unique detachable design make wiring easier and faster.
Wiring Specification
Color - circuit - recommended wire gauge:
White - Ground - 10 gauge
Blue - Electric Brake - 12 gauge
Green - Tail, License, and Running Lights - 14 gauge
Black - Battery Charge - 10 gauge
Red - Stop and Left Turn Signal - 14 gauge
Brown - Stop and Right Turn Signal - 14 gauge
Yellow - Auxiliary Circuit - 14 gauge
