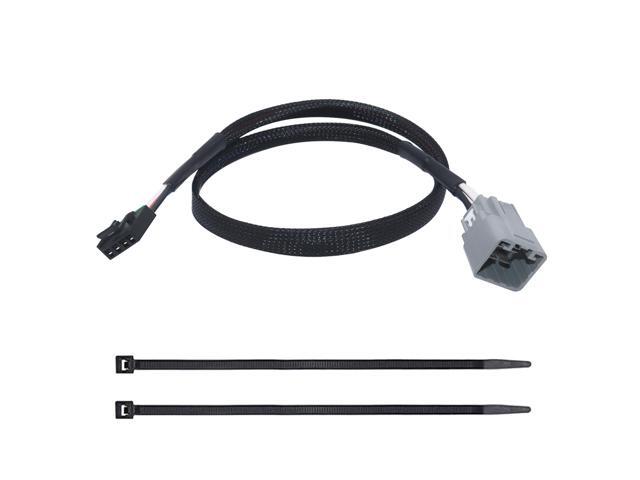

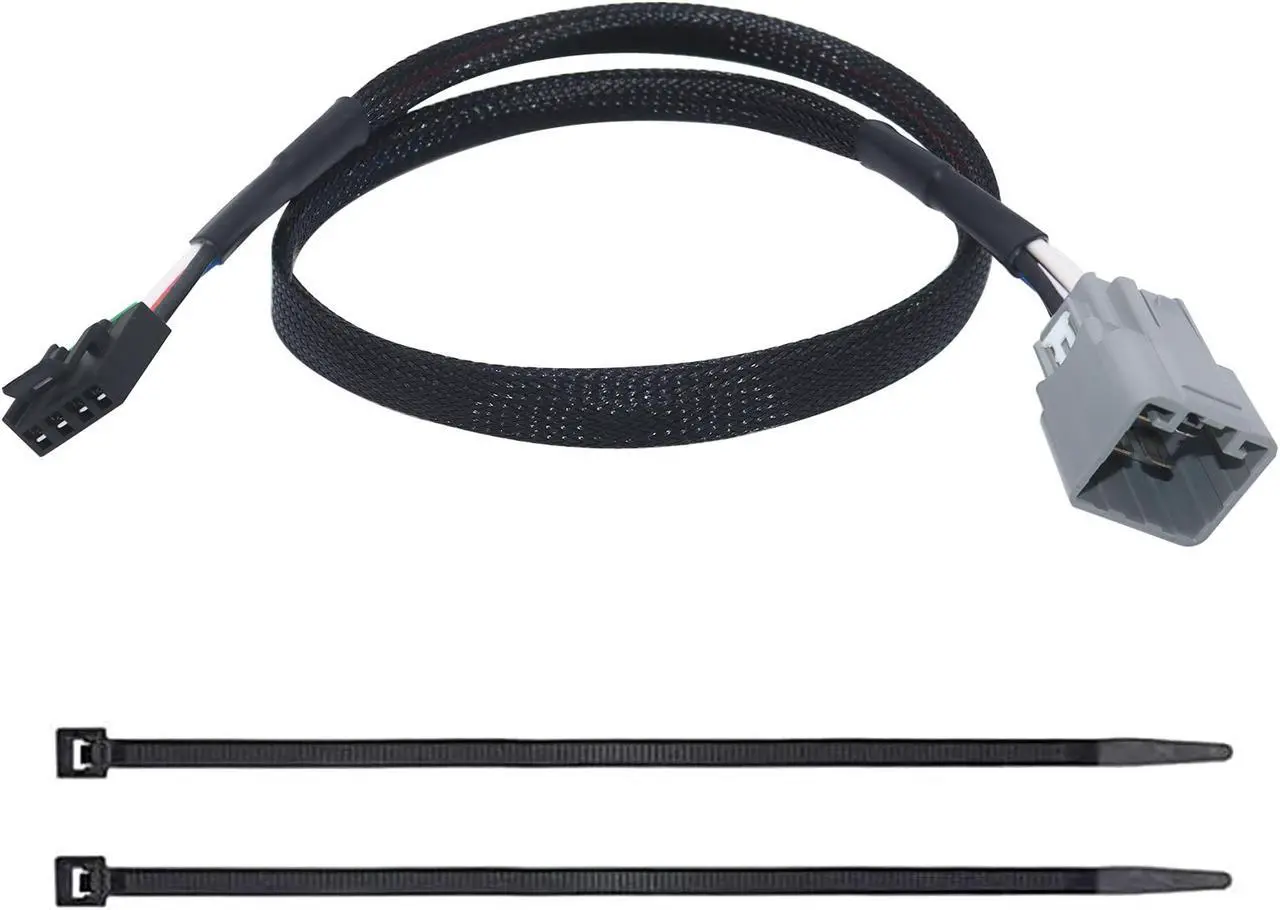

CARROFIX Trailer Electric Brake Control Harness Plug-in Wiring Adapter, Compatible with 2015-2022 RAM 1500, 2500, 3500, 4500, 5500

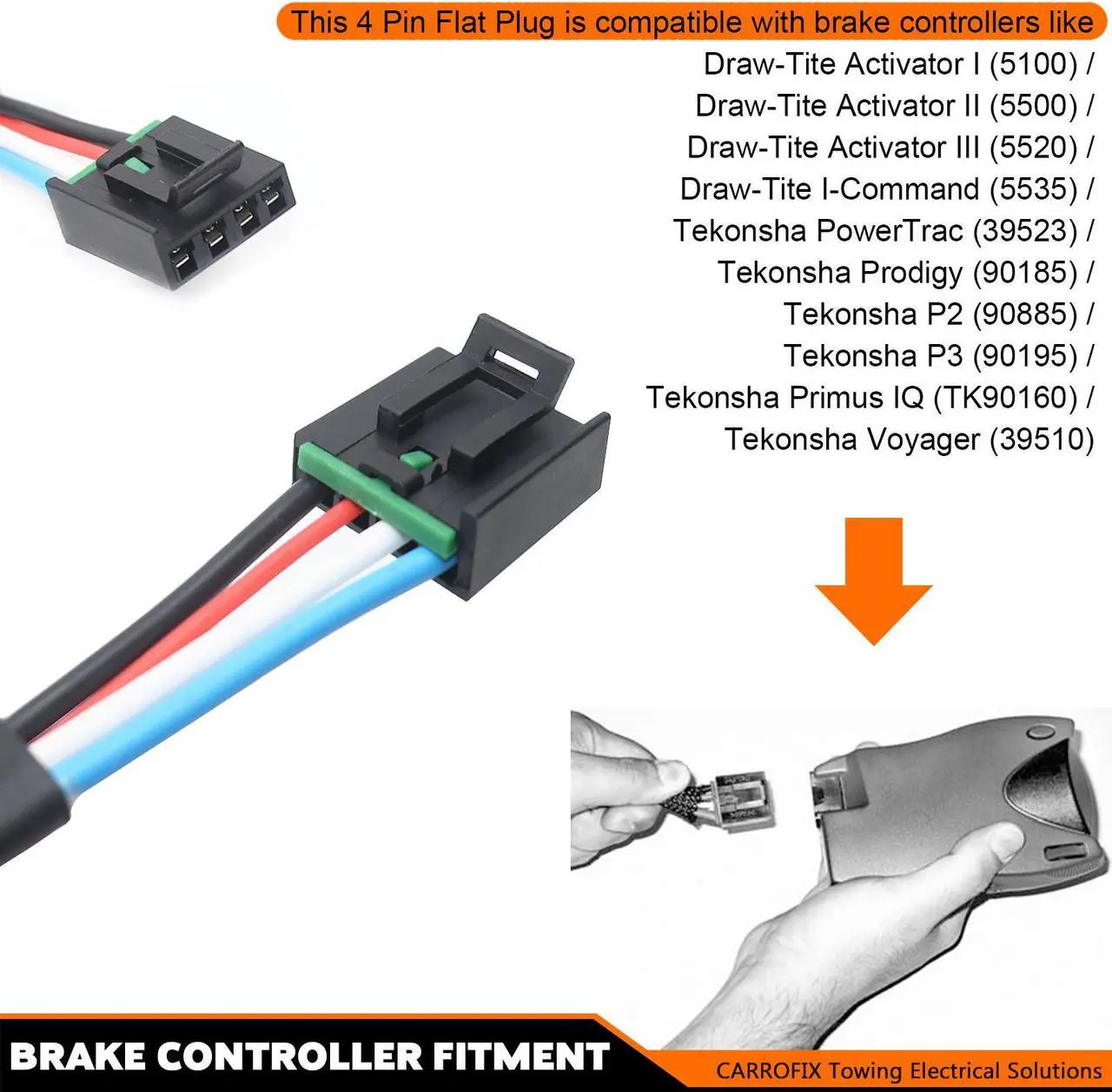

- Vehicle Fitment - This vehicle specific electric brake controller harness is compatible with 2015 - 2022 Ram 1500&2500&3500 / 2019 - 2022 Ram 1500 Classic / 2016 - 2022 Ram 4500&5500. The 4 Pin Flat Plug is compatible with the brands of brake controllers like Draw-Tite and Tekonsha

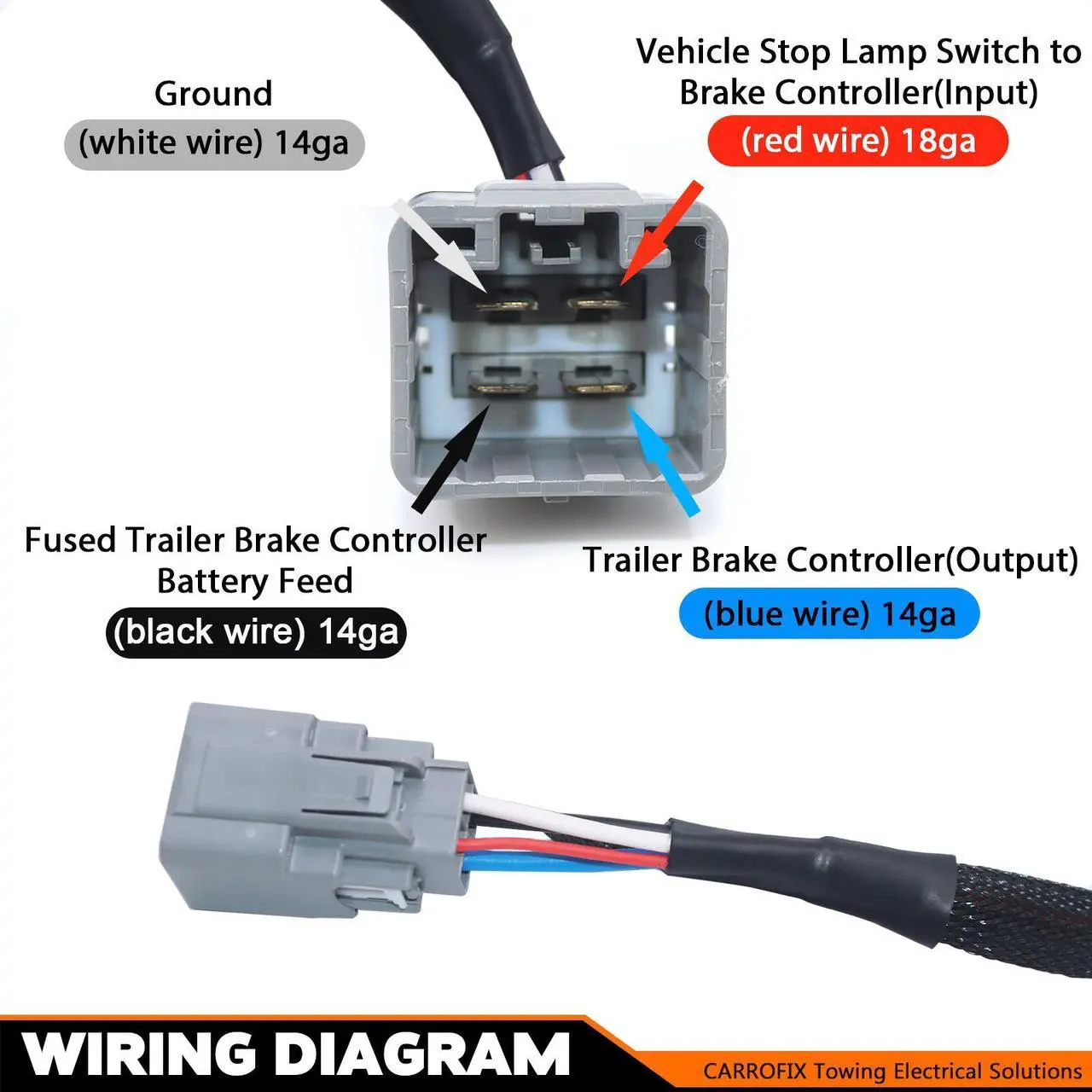

- Stable Connection - Brake controller wiring adapter is designed to use for installing electric brakes on your vehicle, reduces possible short circuits and cross wiring of brake controls. The black wire (14ga) is for 12 volt power, red wire (18ga) is for stop light, blue wire (14ga) is for brake output signal and white wire (14ga) is for ground

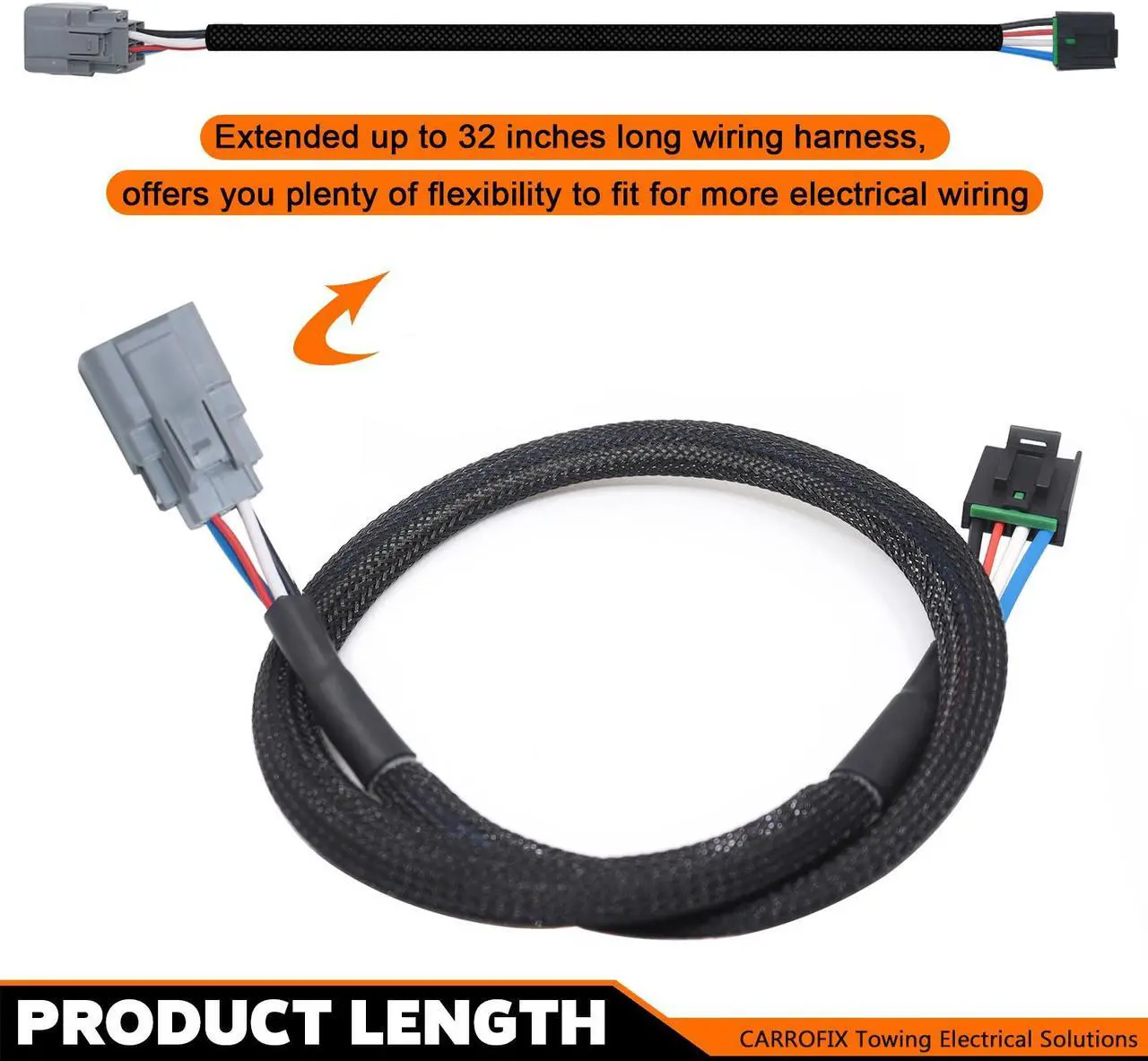

- Simple Installation - Equiped with custom plugs for quickly and easily assembly. Simply plug one end of the adapter into your brake controller and then plug the RAM specific wiring connector end into the built-in port beneath your vehicle's dash, no cutting, splicing or tapping required, up to 32" length for flexible positioning
+
+
Overview
Specs
Reviews

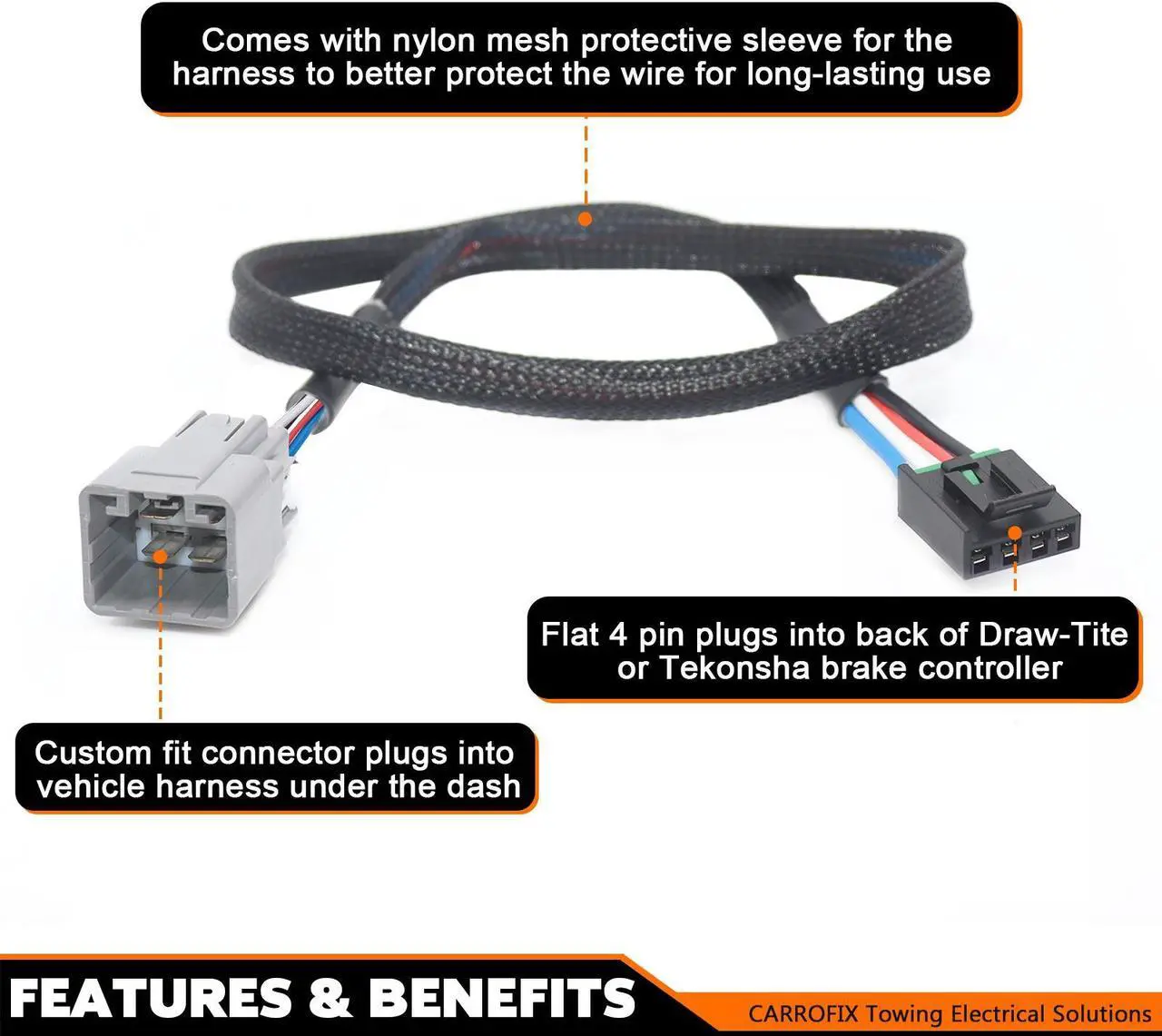

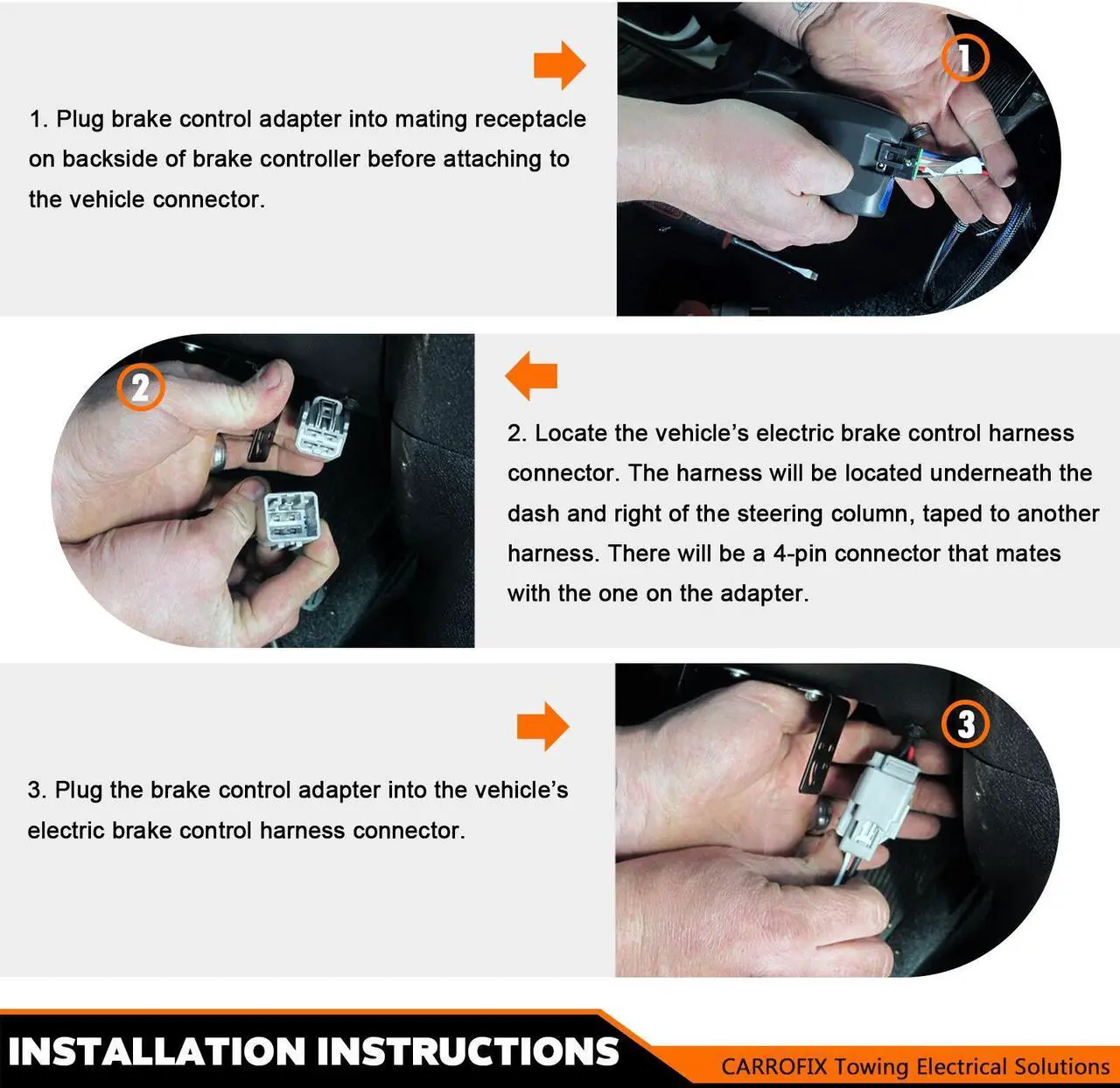

This two plug wiring adapter is designed for brake controller that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of your brake controller and then plug the other end into the built-in port beneath your RAM's dash. No hardwiring is required to install this adapter. You can unplug and remove your brake controller at any time to transfer it to another vehicle or securely stow it away.
