CARROFIX 4 Way Flat to 6 Pole Round Trailer Wiring Adapter Quick-Connect 6 Way Connector with Mounting Bracket
Limited time offer, ends 07/12 By LUOYIMAN
- Carrofix brand new - adapter converts your vehicle's 4-way flat wiring to the 6-pole round trailer connector
- Simple installation - wiring harness plugs into existing 4-way flat plug and hardwires to existing wiring
- Additional leads for brake and 12V power can be connected for electric brakes and accessories

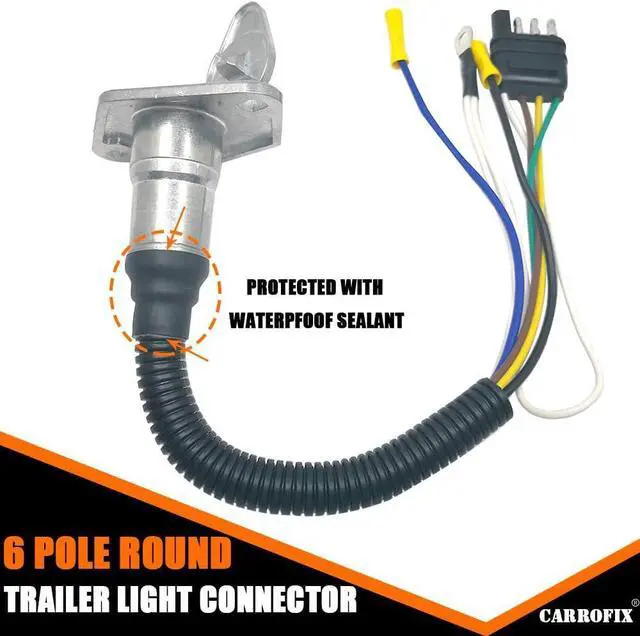

- Included a spring-loaded cover on the 6-way side to protect connector from the elements
- Money back guarantee - If you're not 100% satisfied for any reason, we'll refund you money
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

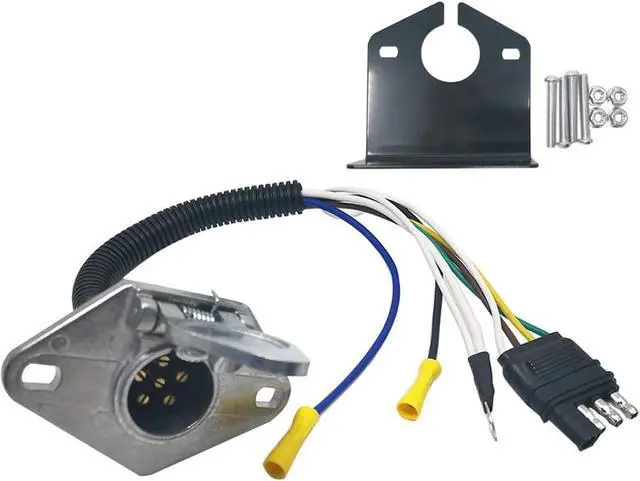

4 Pin Flat to 6 Pole Round Trailer Wiring Adapter w/ Mounting Bracket
In order to connect the 4-Way Flat Connector on your truck to the 6-Way Round Connector on your trailer, you can use carrofix 6 way round connector.
This adapter allows to plug it into your vehicle's 4 way flat plug and provide a 6 way round connection on the other end. The additional white wire is for ground and will need to be attached to a clean, bare metal surface. The other two wires (Black for 12V power and Blue for brake) from the adapter can simply be tied off and left unused, assuming you only need to power the basic signal lights on the camper.

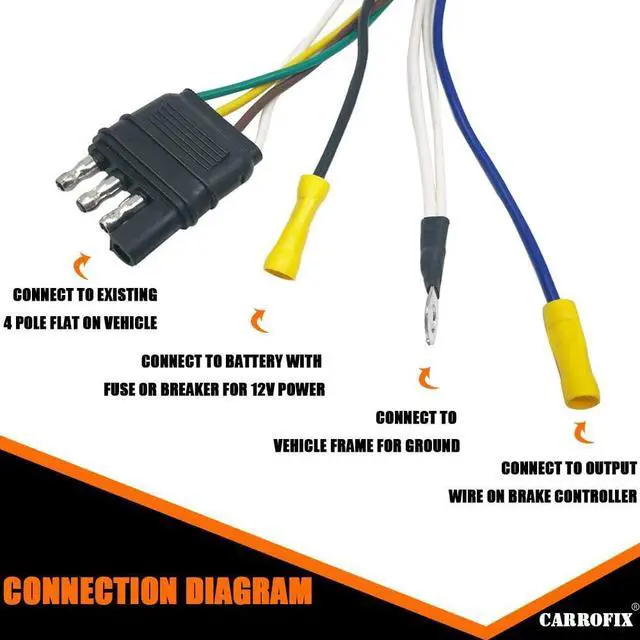

Wire configuration
Green(4-way flat): Right turn signal and brakes; Yellow(4-way flat): Left turn signal and brakes; Brown(4-way flat): Tail lights; Blue wire: Electric brakes; Black wire: 12V Battery charge; White wire: Ground wire
In order to connect the 4-Way Flat Connector on your truck to the 6-Way Round Connector on your trailer, you can use carrofix 6 way round connector.
This adapter allows to plug it into your vehicle's 4 way flat plug and provide a 6 way round connection on the other end. The additional white wire is for ground and will need to be attached to a clean, bare metal surface. The other two wires (Black for 12V power and Blue for brake) from the adapter can simply be tied off and left unused, assuming you only need to power the basic signal lights on the camper.
Wire configuration
Green(4-way flat): Right turn signal and brakes; Yellow(4-way flat): Left turn signal and brakes; Brown(4-way flat): Tail lights; Blue wire: Electric brakes; Black wire: 12V Battery charge; White wire: Ground wire
