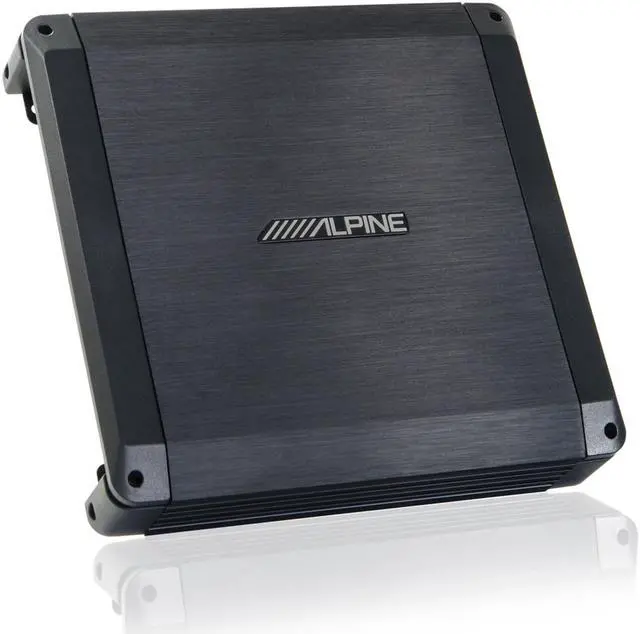

Alpine BBX-T600 2-Channel Class AB Car Amplifier

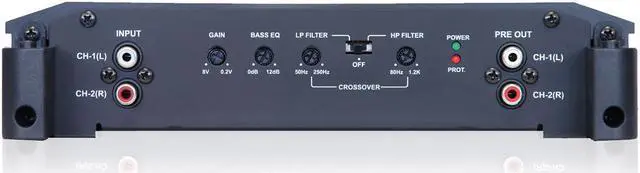

Alpine BBX-T600 amplifier gives you alpine power performance at an amazing price they’re designed to fit easily in virtually any system. high power, great value this amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget. high pass and low pass filters – these two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency. H Input Gain Adjustment Control Set the Alpine BBX-T600 input gain knobs to the minimum (8V) position.

Using a loud CD/DVD as source, turn up the head unit volume until it distorts. Then, reduce the volume 1 step. You can then increase amplifier gain until the sound from the speakers becomes distorted. Bass EQ Adjustment Adjust the low frequency output of the amplifier from 0dB (flat) to +12dB. Adjust the Bass EQ (centered at 45Hz) to suit your personal taste Low Pass Filter Use this control to adjust the crossover frequency between 50Hz to 250Hz on the Alpine BBX-T600. RCA Input Jacks Connect these jacks to the line out leads on your head unit using RCA extension cables (sold separately).

Be sure to observe correct channel connections; Left to Left and Right to Right. (Front to Front and Rear to Rear) RCA Pre Out Jacks These jacks provide a line level output on the Alpine BBX-T600. This is an ideal output for driving a second subwoofer amp. This output is full-range, and is not affected by the crossover. Pulse Width Modulated MOSFET power supply, LED power (green) and protect (red) indicators, Soft start turn-on. 2 or mono channel operation, 1 pair of preamp outputs to connect multiple amplifiers, 3-way protection circuitry (thermal, overload, and speaker short protection).

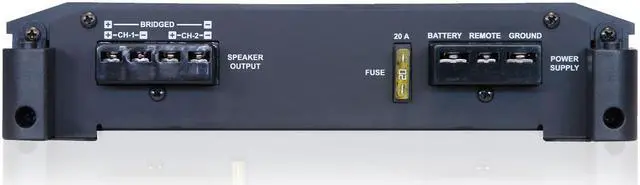

Dual speaker terminals simplify the hookup of multiple speakers, and heavy duty aluminum alloy heat-sink
