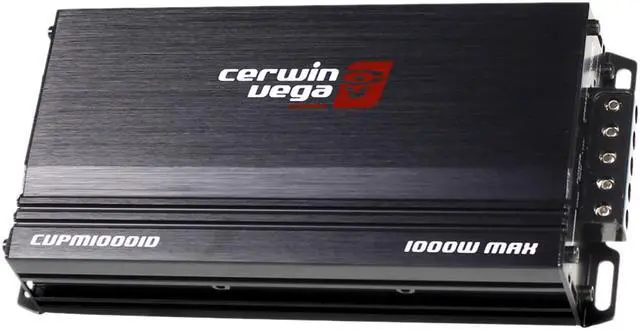

Cerwin Vega 1 Channel Monoblock Amplifier Mini Series Amp CVPM10001D
- Max Power
- 1000W MAX
- Bridged (mono 2 O)
- 500W x 1 @ 2O RMS
- Bridged (mono 4 O)
- 310W x 1 @ 4O RMS
- Type
- Full Class D
- Power Supply
- Full PWM
- Power Supply Threshold
- 10.0DVC – 17.0DVC
- Idle Current
- (0.7A)
- THD (1KHz @4O)
- 0.1%
- S-N Ratio (A weighted @ 1W)
- -85dBA
- S-N Ratio (A weighted @ FP)
- -101.1dBA
- Sensitivity-Hi/Low Input Level
- 250mV – 6.0V
- Damping Factor
- >70
- Bandwidth (-3dB)
- 10Hz-45KHz
- Crossover (-12 dB/ Oct) – Variable High Pass
- N/A
- Crossover (-12 dB/ Oct) – Variable Low Pass
- 35Hz-500Hz
- Crossover (-12 dB/ Oct) – Variable Sub-Sonic
- N/A
- Fuse Rating ATC Mini Fuse ( Inside Amplifier)
- 2 x 30A
- Dimentions- Length x Width x Height (inches)
- 7.64” x 3.7” 1.47?
- Dimentions- Length x Width x Height (mm)
- 194 x 95 x 37.3mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Cerwin Vega 1 Channel Monoblock Amplifier Mini Series Amp CVPM10001D
The CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable. Striking an expert balance for those who are budget-conscious, yet uncompromising in their pursuit of car audio excellence the CVPM10001D really delivers. Cerwin Vega is committed to offering a universe of mono and multi-channel amplifiers to select from at a tremendous value considering outstanding engineering and performance. Enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products!
Features
Latest High-Efficiency Class D Topology
ULTRA Compact Size
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
NOT 1 Ohm Stable
2 Ohm Stable for Monoblock
4/2 Ohm Stable Stereo / 4 Ohm Mono for 4 Channel
Proprietary Vega Bass Boost EQ Up To 12dB
MINI 1-Channel
500W x 1 @ 2 Ohm
350W x 1 @ 4 Ohm
15-500Hz Frequency Response
IRS2092 Main Power Chip
Low Pass Crossover 30Hz~500Hz
12dB Crossovers Slope
Dimensions (L x W x H): 7.64" x 3.6" x 1.44"
The CVP Performance series products make owning a Cerwin-Vega Mobile sound system very affordable. Striking an expert balance for those who are budget-conscious, yet uncompromising in their pursuit of car audio excellence the CVPM10001D really delivers. Cerwin Vega is committed to offering a universe of mono and multi-channel amplifiers to select from at a tremendous value considering outstanding engineering and performance. Enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products!
Features
Latest High-Efficiency Class D Topology
ULTRA Compact Size
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
NOT 1 Ohm Stable
2 Ohm Stable for Monoblock
4/2 Ohm Stable Stereo / 4 Ohm Mono for 4 Channel
Proprietary Vega Bass Boost EQ Up To 12dB
Specifications
MINI 1-Channel
500W x 1 @ 2 Ohm
350W x 1 @ 4 Ohm
15-500Hz Frequency Response
IRS2092 Main Power Chip
Low Pass Crossover 30Hz~500Hz
12dB Crossovers Slope
Dimensions (L x W x H): 7.64" x 3.6" x 1.44"
