Kenwood X Series X302-4 Class D Mono 4 Channel Power Amplifier, 600W Max

  • 4-channel car amplifier
  • Class D amp technology
  • Variable high- and low-pass filters (50-200 Hz, 12 dB/octave)
  • 8-gauge power and ground leads recommended
  • Variable bass boost on B channels (0-18 dB at 40 Hz)
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

X302-4

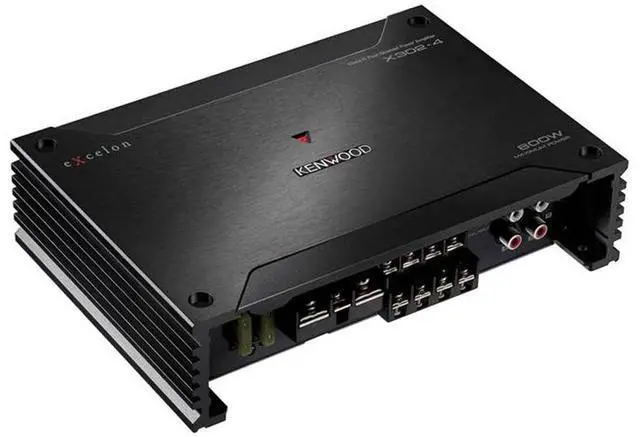

Kenwood Excelon X302-4 - X Series 4-channel car amplifier

Need power, Kenwood's Excelon X302-4 four-channel amplifier delivers 50 watts RMS per channel, yet still fits almost anywhere in your vehicle. Switch this amp over to bridged, 2-channel mode, and you can power a pair of high-performance speakers or subs with 150 watts RMS each. In 3-channel mode, you can use the amp's front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub. This versatility pays off as your system evolves over time.

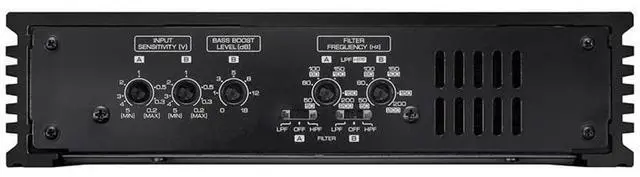

High-and low-pass filters let you optimize the sound for your vehicle and speakers. When you're running a subwoofer with the rear channels, you can adjust a bass boost to get just the right tone to fit your musical tastes.

X302-4

Convenient technology

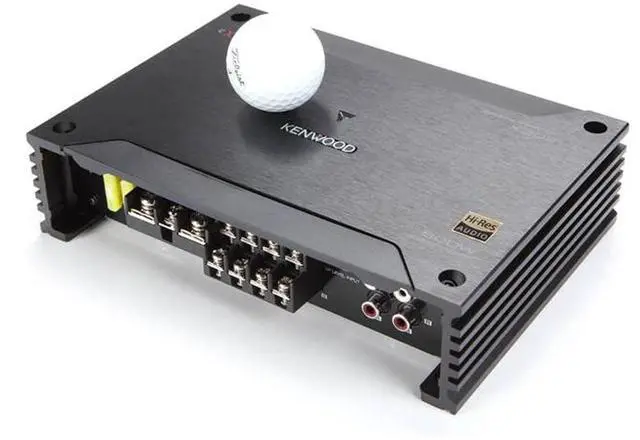

Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp's internal circuitry — analog, digital, and power supply — onto separate, non-overlapping circuit boards for improved overall sound quality. The X302-4 accepts input signals via RCA cables from an aftermarket receiver or by way of your vehicle's speaker wiring, so it'll work with almost any mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.

X302-4

Sliding Terminal Cover

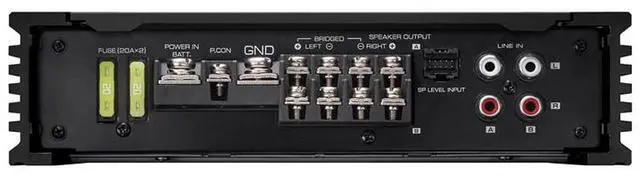

Detachable sliding terminal cover offers a sleek design and easier installation. All terminals and connections are on one side for easier installation and a cleaner look.

X302-4

CEA-2006 Compliant

CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured over a frequency range of 20 Hz to 20 kHz (for full range amplifiers), with 1% or less Total Harmonic Distortion plus noise (THD+N). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4 ohms. CEA-2006 standards allow consumers to compare car amplifiers and receivers under the same conditions.

X302-4

Kenwood Excelon X302-4 - X Series 4-channel car amplifier

Need power, Kenwood's Excelon X302-4 four-channel amplifier delivers 50 watts RMS per channel, yet still fits almost anywhere in your vehicle. Switch this amp over to bridged, 2-channel mode, and you can power a pair of high-performance speakers or subs with 150 watts RMS each. In 3-channel mode, you can use the amp's front channels to drive a pair of speakers with 50 watts each, and bridge the rear channels to send 150 watts to a sub. This versatility pays off as your system evolves over time.

High-and low-pass filters let you optimize the sound for your vehicle and speakers. When you're running a subwoofer with the rear channels, you can adjust a bass boost to get just the right tone to fit your musical tastes.

X302-4

Convenient technology

Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp's internal circuitry — analog, digital, and power supply — onto separate, non-overlapping circuit boards for improved overall sound quality. The X302-4 accepts input signals via RCA cables from an aftermarket receiver or by way of your vehicle's speaker wiring, so it'll work with almost any mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.

X302-4

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation. All terminals and connections are on one side for easier installation and a cleaner look.

X302-4

CEA-2006 Compliant

CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured over a frequency range of 20 Hz to 20 kHz (for full range amplifiers), with 1% or less Total Harmonic Distortion plus noise (THD+N). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4 ohms. CEA-2006 standards allow consumers to compare car amplifiers and receivers under the same conditions.

Brand: Kenwood
Mfr Part Number: X302-4/B
Manufacturer: KENWOOD
Model Number: X302-4
Package Weight: 1.562 kilograms
Item Package Dimensions: 8.8 L x 20 W x 25.9 H centimeters
Item Weight: 4 pounds
Package Level: unit
Item Dimensions: 14 L x 11 W x 4 H inches
Number of Items: 1
Product Tax Code: A_GEN_TAX
Are Batteries Included: false
Are Batteries Required: false
Built-In Media: AMPLIFIER
Package Type: Standard Packaging
Package Quantity: 1
