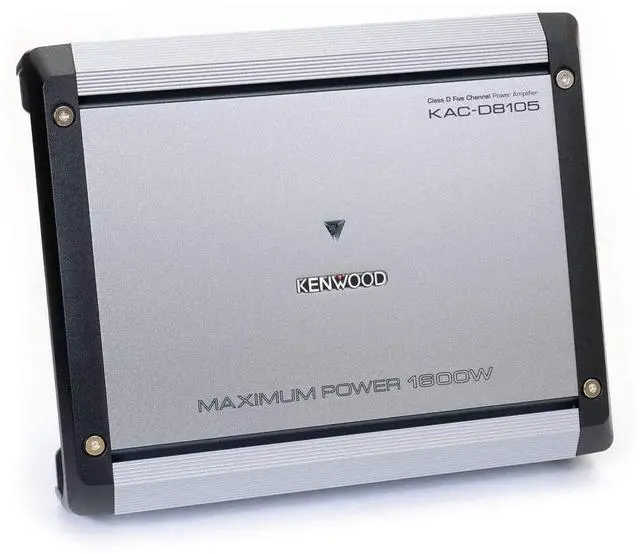

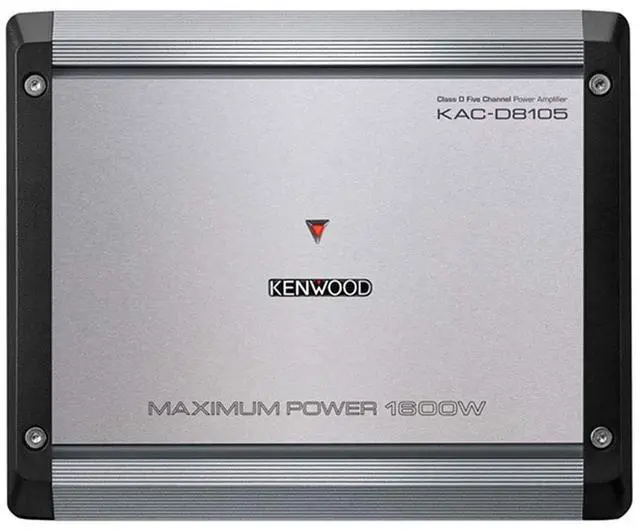

    Kenwood D Series KAC-D8105 Class D 5-Channel 1600 Watt Max Power Amplifier

    REFURBISHED Product Type
    • 1600 Watt Class D 5-Channel Amplifier
    • Variable Low-pass Crossover Frequency - 50Hz - 200Hz
    • Frequency Response - 20Hz - 50kHz
    • 4 Gauge power wire recommended
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    RFRB Kenwood D Series KAC-D8105 Class D 5-Channel 1600 Watt Max Power Amplifier


    Kenwood D Series KAC-D8105 amplifiers provide a powerful solution in a compact design. Supporting Hi-Res Audio, KAC-D8015 is ideal for high-resolution audio playback as it features a frequency response that extends to 50kHz. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal.


    Product Highlights:



    • Refurbished

    • 1600 Watt Class D 5-Channel Amplifier

    • The amplifier will operate with 2 ohm or 4-ohm loads

    • 200mV-5V High Speaker Level or Low-Level RCA Inputs

    • Extruded aluminum heat sink design

    • Speaker Level Input for easy integration to factory audio systems

    • Signal Sensing Turn-on for easy integration to factory audio systems

    • 4 Gauge power wire recommended

    • Fuse - 30A x 3

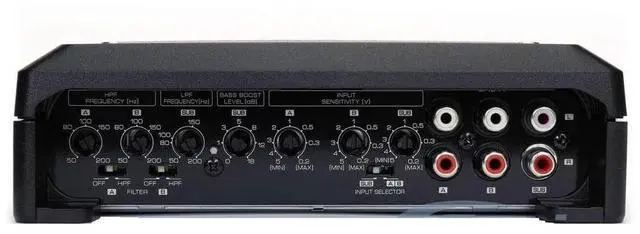

    Pre-Amp features:



    • Frequency Response - 20Hz - 50kHz

    • Signal to Noise Ratio - >80dB

    • Gain Adjust - 200mV - 5V

    • Speaker Level Gain Adjust - 4V - 12V

    • Total Harmonic Distortion - 1.0%

    • Variable Low-pass Crossover Frequency - 50Hz - 200Hz

    • Variable Low-pass Crossover Slope - (dB/oct): 24dB/octave

    • Variable Bass Boost @ 40Hz (0 - 18 dB)


    Power Output:



    • 50W x 4 @ 4 ohm and 300W x 1 @ 4 Ω

    • 75W x 4 @ 2 ohm and 500W x 1 @ 2 Ω

    • 150W x 2 @ 4 ohm (bridged) and 300W x 1 @ 4 Ω
