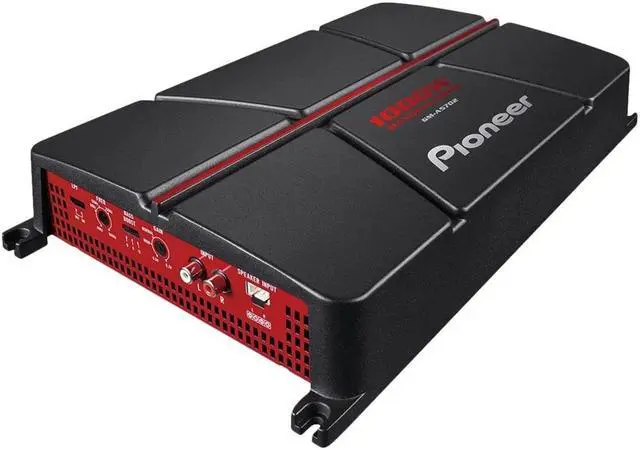

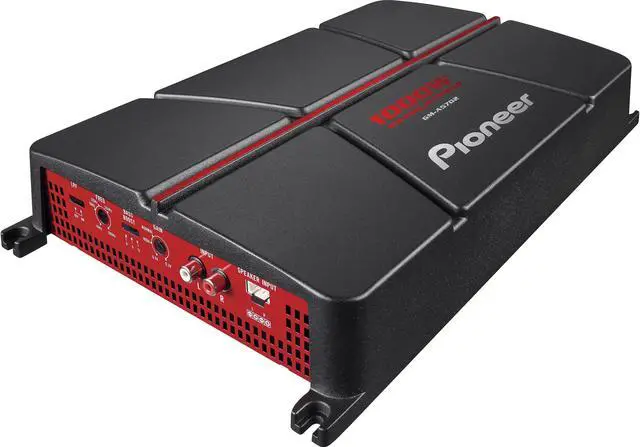

Pioneer GM-A5702 2-channel car amplifier 150 watts RMS x 2

Refurbished Pioneer GM-A5702 Class AB 1000W Max Power 2-Channel Bridgeable Amplifier

The Pioneer GM-A5702 Amplifier delivers powerful performance with a total of 1000 watts max power, offering 150W RMS x2 @ 4 ohms for clean, dynamic sound. With 300W max x2 output at 4 ohms and just 1% THD, this amp ensures high-quality audio. It features automatic signal sensing and turn-on for easy integration, a switchable built-in active filter for precise sound control, and an adjustable bass boost to enhance low-end performance. Ideal for upgrading your car audio system with reliable, high-output power.

Product Highlights:

• Condition: Refurbished


• Total maximum power: 1000W


• RMS power: 150W x2 @ 4Ω (1% THD)


• Max power: 300W x2 @ 4Ω (1% THD)


• Bridgable: Yes (480W x1 @ 4Ω)


• Amplifier class: A/B


• Load impedance range: 2Ω to 8Ω


• Power source: 14.4V (10.8V–15.1V allowable)


• Avg current: 9.5A x2 @ 4Ω, 15.5A x1 @ 4Ω


• Grounding system: Negative


• Protection control system: Yes


• Terminal type: Screw


• Unit weight: 4.9 lbs


• Adjustable bass boost at 50Hz


• Built-in active filter (switchable)


• Crossover: LPF 40Hz–500Hz


• Crossover slope: -12dB/oct


• Frequency response: 10Hz–70kHz (+0dB, -3dB)


• Fuse rating: 30A x2


• RCA inputs: 2-channel


• Speaker line input sensor: Yes
