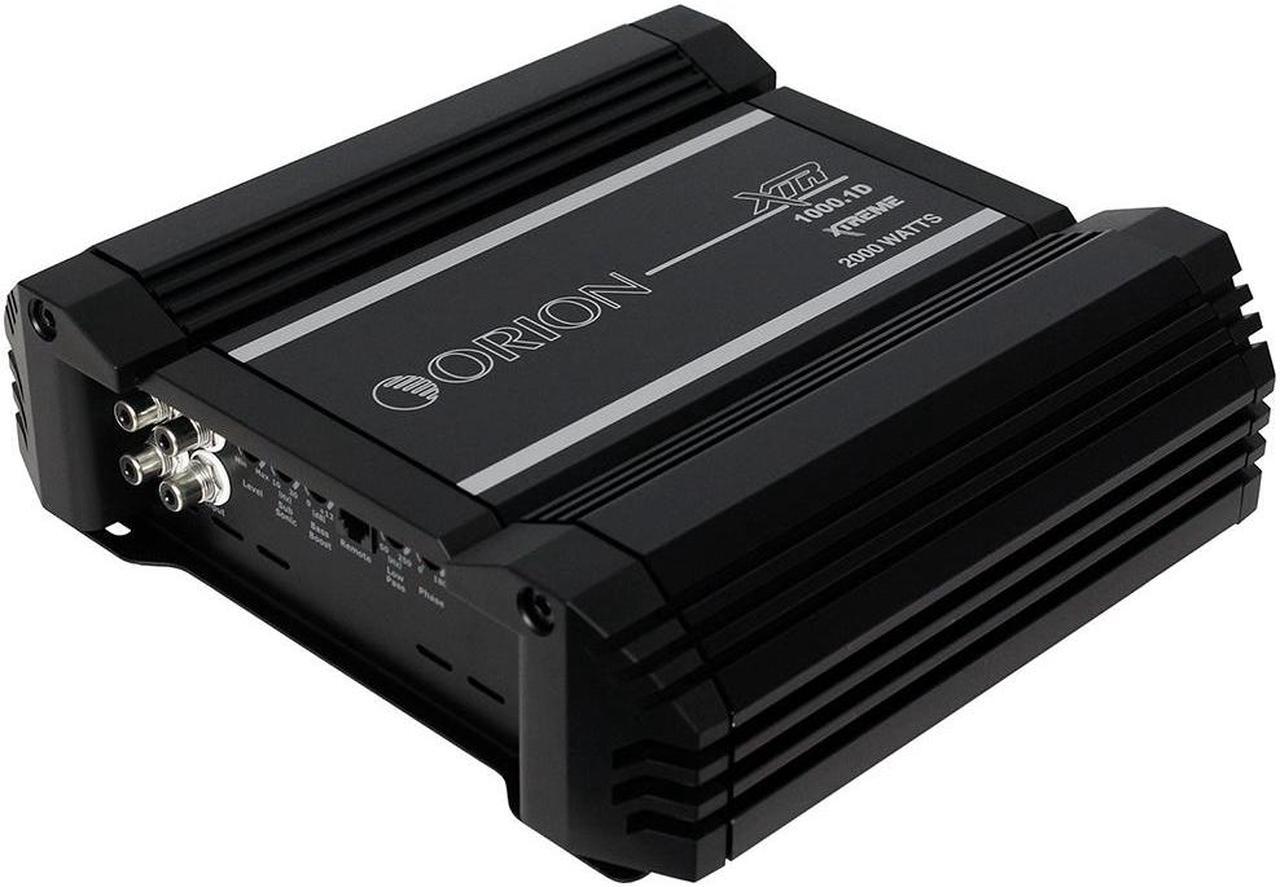

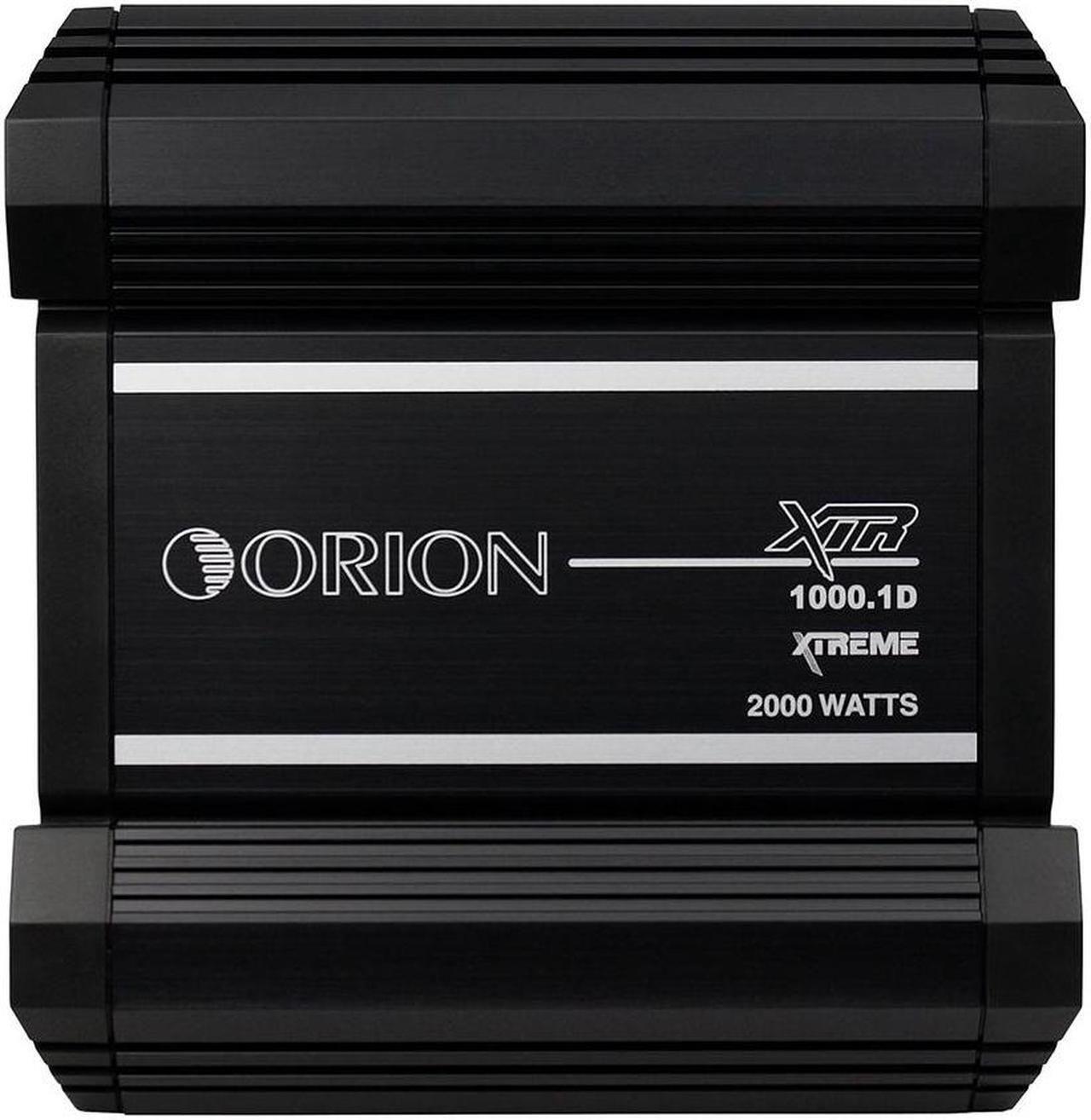

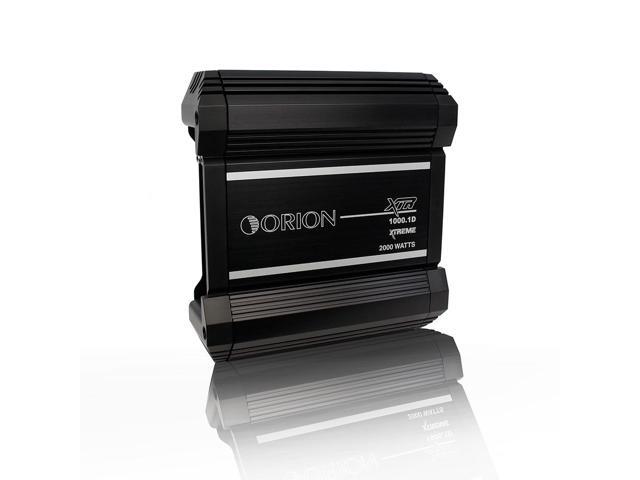

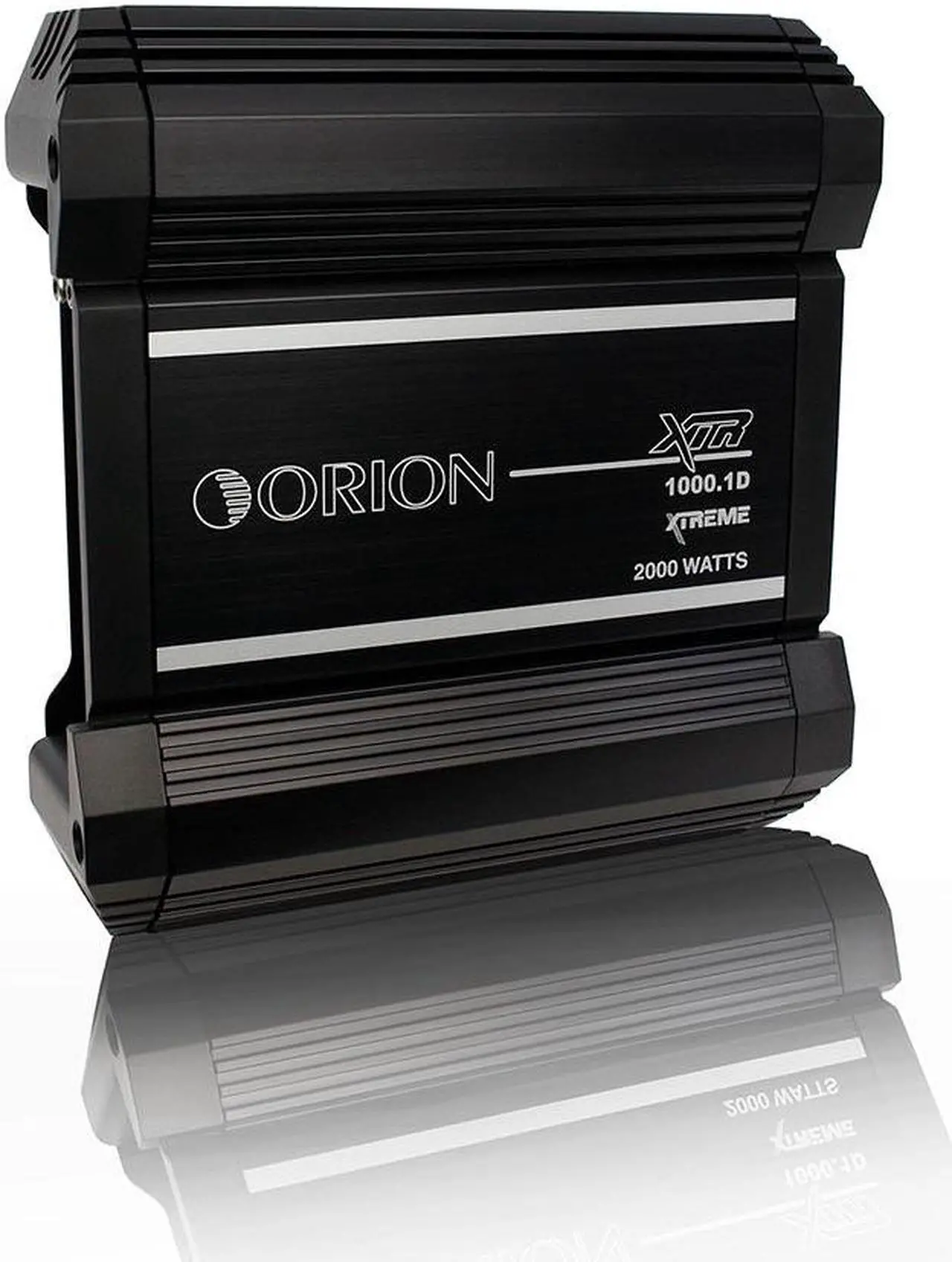

Orion XTR Series Monoblock Class D Amplifier 1 Ohm Stable 1000W Rms XTR1000.1D
- RMS Power @ 1 Ohms MONO @ 0.5% THD+N: 1080 Watts
- Class: D
- Mono Channel
- Frequency Response: 15Hz to 250Hz
- Signal to Noise Ratio: >90dB
+
+
Overview
Specs
Reviews
Orion XTR Series Monoblock Class D Amplifier 1 Ohm Stable 1000W Rms XTR 1000.1D
The Orion XTR 1000.1D XTR Series amplifier offers an unrivaled audio performance. This amplifier is a class D mono channel amp with an RMS Power at 1 Ohm of 1000 Watts. The adjustable built-in crossover enables meticulous calibration of audio frequencies, optimizing speaker performance. Its compact design ensures versatile installation without compromising on its performance. Please see below for more features and specifications.
RMS Power @ 4 Ohms MONO @ 0.5 %
THD+N: 510 Watts
RMS Power @ 2 Ohms MONO @ 0.5 %
THD+N: 790 Watts
RMS Power @ 1 Ohms MONO @ 0.5 %
THD+N: 1080 Watts
Class: D
Mono Channel
12dB/Octave Low-Pass Filter
Frequency Response: 15Hz to 250Hz
Low Pass Crossover: 30Hz~300Hz
Signal to Noise Ratio: >90dB
THD at 1 Watt,
4 Ohm: <0.5%
Damping Factor: 20dB
ALL MOSFET Power Supply and Output Stage
Electronic Crossover Network
Bass Boost Circuit
Remote Gain Control
Low Pass Filter Control
Power and Protection LED Indicators
Phase Control 0~180 degree
Soft Turn-on/Turn-off
The Orion XTR 1000.1D XTR Series amplifier offers an unrivaled audio performance. This amplifier is a class D mono channel amp with an RMS Power at 1 Ohm of 1000 Watts. The adjustable built-in crossover enables meticulous calibration of audio frequencies, optimizing speaker performance. Its compact design ensures versatile installation without compromising on its performance. Please see below for more features and specifications.
Specifications
RMS Power @ 4 Ohms MONO @ 0.5 %
THD+N: 510 Watts
RMS Power @ 2 Ohms MONO @ 0.5 %
THD+N: 790 Watts
RMS Power @ 1 Ohms MONO @ 0.5 %
THD+N: 1080 Watts
Class: D
Mono Channel
12dB/Octave Low-Pass Filter
Frequency Response: 15Hz to 250Hz
Low Pass Crossover: 30Hz~300Hz
Signal to Noise Ratio: >90dB
THD at 1 Watt,
4 Ohm: <0.5%
Damping Factor: 20dB
ALL MOSFET Power Supply and Output Stage
Electronic Crossover Network
Bass Boost Circuit
Remote Gain Control
Low Pass Filter Control
Power and Protection LED Indicators
Phase Control 0~180 degree
Soft Turn-on/Turn-off
