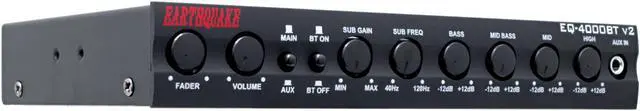

Earthquake Sound EQ-4000BT v2 9V Max RMS 4-Band Equalizer w/ Bluetooth

Earthquake Sound EQ-4000BT v2 9V Max RMS 4-Band Equalizer w/ Bluetooth

Take complete control of your mobile audio system with the new Earthquake Sound EQ-4000BT v2 4-band parametric equalizer. With essential features that any mobile audio enthusiast would enjoy, Earthquake went one step further in offering the ability to stream your favorite tunes and playlists from your smartphone or other Bluetooth-enabled devices. Four input source options are available giving users maximum flexibility for a better listening experience. Subwoofer level and crossover frequency controls are also at the front panel making it easier for users to tailor low frequencies to their listening preferences. Whether used for personal or commercial audio systems, the new EQ-4000BT v2 will give you the ability to get the most out of your audio system and contour the sound to suit your musical taste..

Features:

Operating Voltage: 10.516VDC
Idle: 280 mA
Recommended Fuse Size: 1 Ampere
Input Sensitivity: 100 mVrms up to 14 Vrms
Input Impedance: 8 kOhm up to 10.2 kOhm
Output Impedance:
Sub Channel: 510 Ohm
Front & Rear Channels: 6.3 kOhm
Output Level:
Sub Channel 5 Vrms @ 0.1% THD
Front & Rear Channels 4 Vrms @ 0.1% THD
THD @ 3 Volts Output: 0.05%
Frequency Response: 15Hz34kHz @ -3dB
Sub Frequency Control Range: 35120Hz @ -3dB, 18dB/Oct.
Sub Upper Cut Off Frequency: 100Hz
Signal-to-Noise Ratio: 68dB
Center Frequencies: 92dB
Control Range: 150Hz, 550Hz, 2.5kHz, 15kHz
Channel Separation: 3040dB (12 Oclock is bypass position)
Din Size: 1/2 Din
4 Adjustable Bands of Equalization (-12dB to +12dB)
4 Input Sources (RCA, AUX, mini jack, Bluetooth)

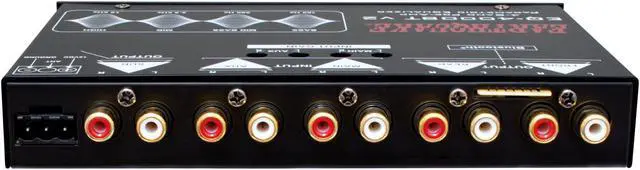

3 Stereo RCA Outputs (Front, Rear, Sub)
9 Volt RMS Output
Input Gain Control
Media Player Ready
Fully Retractable Controls
Volume Level Control
Subwoofer Level Control
Subwoofer Frequency Control
Front Panel MAIN/AUX Control
Front Panel Bluetooth ON/OFF Control
Fader Action Control
Blue Background LED
Mounting Hardware and 1A Fuse Included
3 Pin Plug-in PCB Screw Terminal Block Connector Included
