DS18 7 Band Equalizer Subwoofer Control with High Level Input Auto Turn on EQX7
- Frequency Response:10Hz-50KHz +/-1dB
- Maximum Output voltage:8V
- Input impedance:50mV- 3 V
- Operating voltage:11V-15V Negative Ground
- THD:0.005%
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

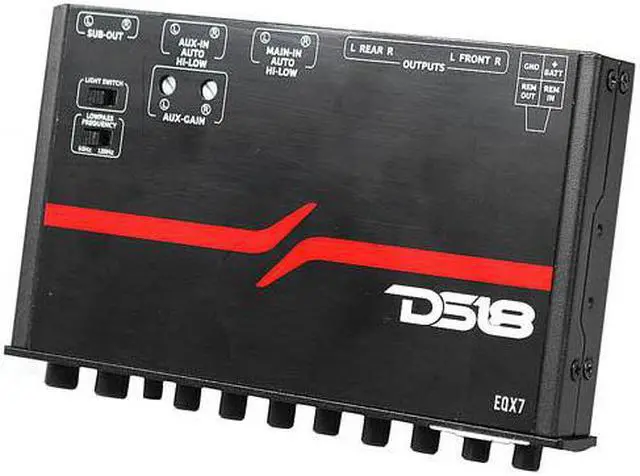

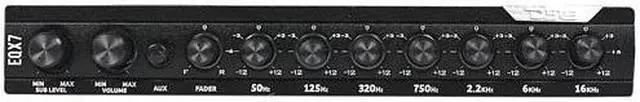

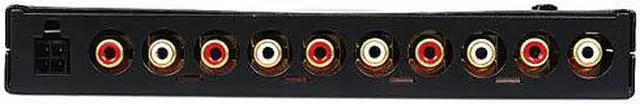

DS18 7 Band Stereo Equalizer Subwoofer Control EQX7
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure clarity and peak efficiency for your acoustic needs. This EQ has 7 separate bands including bass and is adjusted in real-time while sitting in your vehicle and on the fly with just a twist of your fingers. The included hi-lo converter also makes it the perfect choice for those looking to add amplifiers to their factory radio.
Features
Boost / Cut: 12dB
S/N ratio: 100dB
Frequency Response: 10Hz-50KHz +/-1dB
Maximum Output voltage: 8V
THD: 0.005 %
Input impedance: 50mV- 3 V
HeadRoom: 20 dB
Output impedance: 2K Ohms
Input impedance: 20K Ohms
Stereo Separation: 82 dB/1 KHz
Operating voltage: 11V-15V Negative Ground
Dimension (L x W x H): 7" x 4.40" x 1.18"
Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure clarity and peak efficiency for your acoustic needs. This EQ has 7 separate bands including bass and is adjusted in real-time while sitting in your vehicle and on the fly with just a twist of your fingers. The included hi-lo converter also makes it the perfect choice for those looking to add amplifiers to their factory radio.
Features
Boost / Cut: 12dB
S/N ratio: 100dB
Frequency Response: 10Hz-50KHz +/-1dB
Maximum Output voltage: 8V
THD: 0.005 %
Input impedance: 50mV- 3 V
HeadRoom: 20 dB
Output impedance: 2K Ohms
Input impedance: 20K Ohms
Stereo Separation: 82 dB/1 KHz
Operating voltage: 11V-15V Negative Ground
Dimension (L x W x H): 7" x 4.40" x 1.18"
