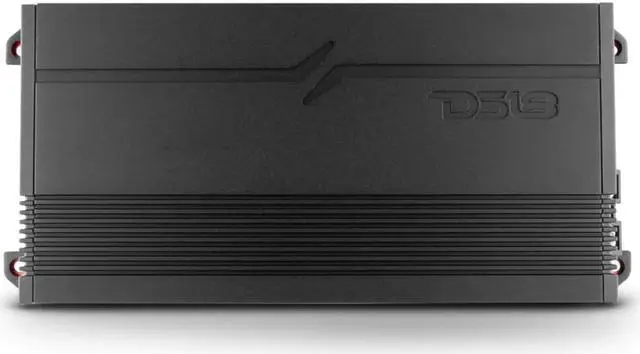

DS18 G1800.4D 1800W Max 4-Channel Class-D Stereo Full Range Car Audio Amplifier

BRAND NEW

DS18 G1800.4D

1800 Watts Max 4 Channel Class D Car Stereo Full Range Amplifier

Key Features:

• Digital Class D 4 Channel Amplifier
• MAX Wattage: 1800W PeakKEY_TAB
• RMS Wattage: 2x430 Watts RMS @ 4 ohm bridge, 4x230 Watts RMS @ 2 ohms, 4x150 Watts RMS @ 4 ohms
• Frequency Response: 20-20KHz
• Signal to Noise Ratio: >90dB
• Efficiency at 4 ohms: 81%
• Total Harmonic Distortion: 0.01%
• Input Range: .25-6v
• Selectable X-over: LPF, HPF. Flat
• Phase: 0-180
• Power and Ground Terminal: 4 GA
• Minimum Impedance: 2 ohm

Specifications:

• Amplifier Class: Digital (D)
• Amplifier Type: 4CH Full Range
• Number of Channels: 4CH
• Minimum Impedance: 2 ohm St / 4 ohm Bridge

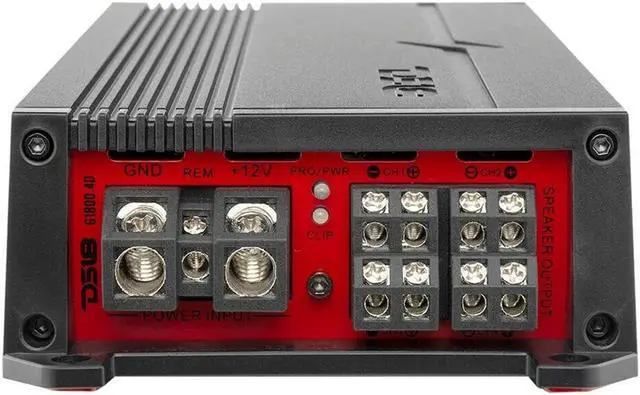

• Led Indicator: Power / Protection / Clip
• Power Input Terminal Size: 4 ga
• Fuse Size: 2 X 40A
• Remote Level Control: NO
• Cooling Fan: NO
• Voltmeter: NO
• Thermal Protection: YES
• Over-Load Protection: YES
• DC Output Protection: YES
• Short Circuit Output Protection: YES
• Voltage Input Protection: YES
• Clipping Protection: YES
• Body Color / Finish: Matte black

Power:

• Total Watts (Peak): 1800W
• RMS Power @ 4 ohm: 4 x 150W
• RMS Power @ 2 ohm: 4 x 230W
• RMS Power @ 4 ohm Bridge: 2 x 430W

Audio:

• Frequency Response: 20Hz-20KHz
• Signal to Noise Ratio: >90dB
• Efficiency @ 4ohm: 81%
• Damping Factor: 78
• Input Impedance: 22K
• Channel Separation: 70dB
• Total Harmonic Distortion (THD): 0.01%
• Low-Level Input Range: 0.25-6V
• High-Level Input: NO

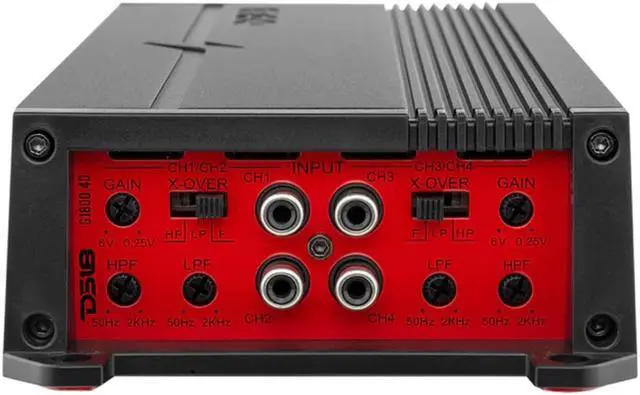

• Selectable X-Over: LPF/FLAT/HPF
• X-Over Filter Range: 50Hz-250Hz
• Bass Boost Range: N/A
• Bass Boost Frequency: N/A
• Infrasonic Filter: N/A
• Phase Selector: NO

Measurement:

• Overall Length: 10.43" / 265mm
• Overall Wide: 4.72" / 120mm
• Overall Height: 1.96" / 50mm
• Heatsink Length: 8.58" / 218mm
• Gross Single Unit Weight: 1.6KG
