Taramps DS 1200X4 Module DS Class D 4 Channels 2 Ohm 300 Watts RMS Amplifier
- CLASS OF OPERATION Class D
- NUMBER OF CHANNELS 04
- MAXIMUM POWER @ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS) @ 12.6 VDC-4 OHMS: 768W RMS (4 x 192W RMS)
- INPUT SENSITIVITY 250mV
- SIGNAL / NOISE RATIO> 80dB
- FREQUENCY RESPONSE 9Hz ~ 27KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 90Hz (-12dB / 8th) Fixed
- CROSSOVER LOW PASS (LPF) 90Hz (-12dB / 8th) Fixed
- IMPEDANCE OF INPUT 18K OHMS
- OUTPUT IMPEDANCE 2 OHMS
- PROTECTION SYSTEM Output Overload
- MINIMUM POWER SUPPLY VOLTAGE 9VDC
- MAXIMUM POWER SUPPLY VOLTAGE 16VDC
- CONSUMPTION AT HOME 1.8A
- MAXIMUM MUSICAL CONSUMPTION @ 12,6VDC 67,5A
- MAXIMUM CONSUMPTION IN SENOIDAL SIGNAL 135A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BRAND NEW

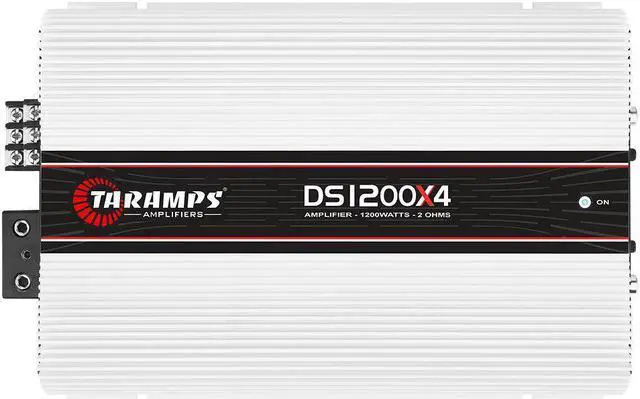

TARAMPS DS1200X4
2-Ohms 300 Watts RMS 4 Channel Class D Car Stereo Amplifier
Key Features:
- OPERATION CLASS: D
- NUMBER OF CHANNELS: 04
- MAXIMUM POWER:
- KEY_TAB - @ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS)
- KEY_TAB - @ 12.6 VDC - 4 OHMS: 768W RMS (4 x 192W RMS)
- INPUT SENSITIVITY: 250mV
- SIGNAL TO NOISE RATIO: >88dB
- FREQUENCY RESPONSE: 9Hz to 27KHz (-3dB)
- CROSSOVER HIGH PASS (HPF): 90Hz (-12dB/8a) Fixed
- CROSSOVER LOW PASS (LPF): 90Hz (-12dB/8a) Fixed
- INPUT IMPEDANCE: 18K Ohms
- OUTPUT IMPEDANCE : 2 Ohms
- PROTECTION SYSTEM: Output overload
- MIN. SUPPLY VOLTAGE: 9VDC
- MAXIMUM POWER SUPPLY VOLTAGE: 16VDC
- CONSUMPTION AT REST: 1.8A
- MAXIMUM MUSIC CONSUMPTION: @12.6VDC 67.5A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL: 135A
- DIMENSIONS (WXHXD): 7.17" x 2.05" x 11.06" (182 x 52 x 281mm)
- WEIGHT: 4.62lb (2,1kg)
