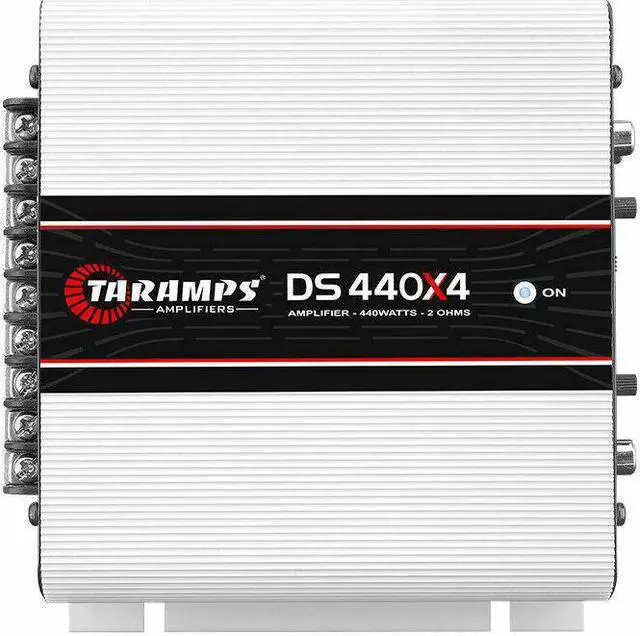

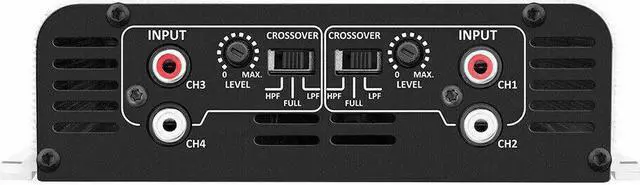

Taramps DS 440X4 440 watts Amplifier Class D - 4 Channels 110W Rms Each

The DS 440X4 2 OHMS amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a stero and its maximum power is 440W RMS with 2 OHMS impedance, and four 110w RMS channel. With a size that fits in the palm of the hand. The DS 440X4 is FULL RANGE this way you appreciate all the frequencies in the right measure.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

89dB

- Frequency Response: (Full Range): 8Hz to 26KHz (-3dB)

- High Pass Filter (HPF): 90Hz (-12dB/8th) Fixed

- Low Pass Filter (LPF): 90Hz (-12dB/8th) Fixed

- Input Impedance: 18K OHMS

- Protection System: Output Short Circuit

- Minimum Supply Voltage: 8VDC

- Maximum Supply Voltage: 16VDC

- Consumption at rest: 0.8A

- Maximum Musical Consumption: 23.5A @ 12.6 VDC

- Nominal Consumption: 47A

- Dimensions (W x H x D): 6.3" x 1.73" x 5.71" inches (160 x 44 x 145 mm)

- Weight: 1.32 lb ( 0.60 Kg)
