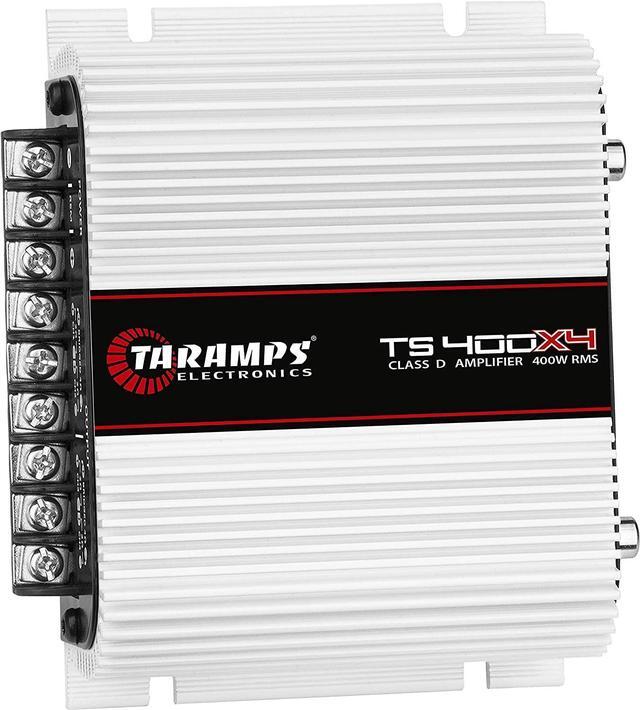

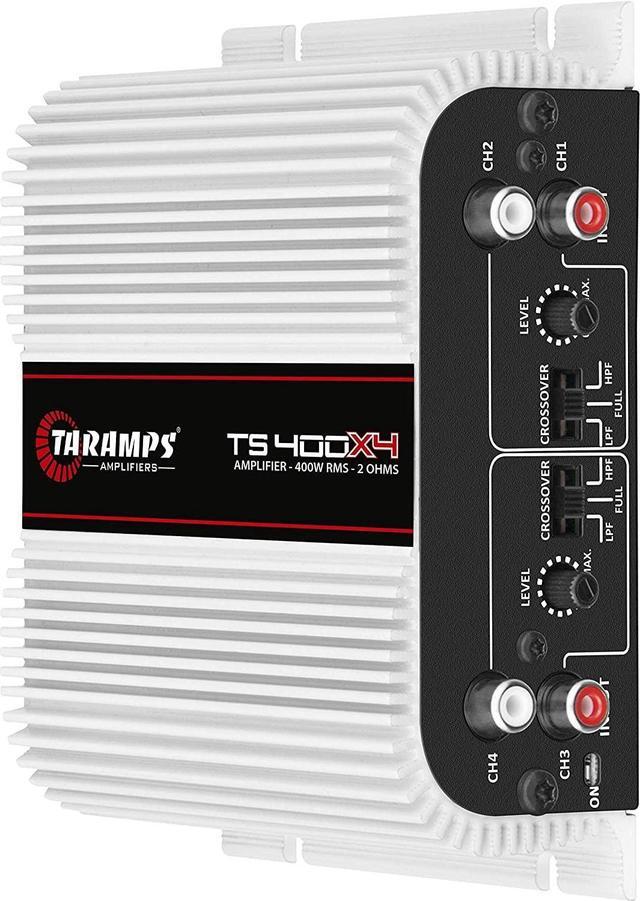

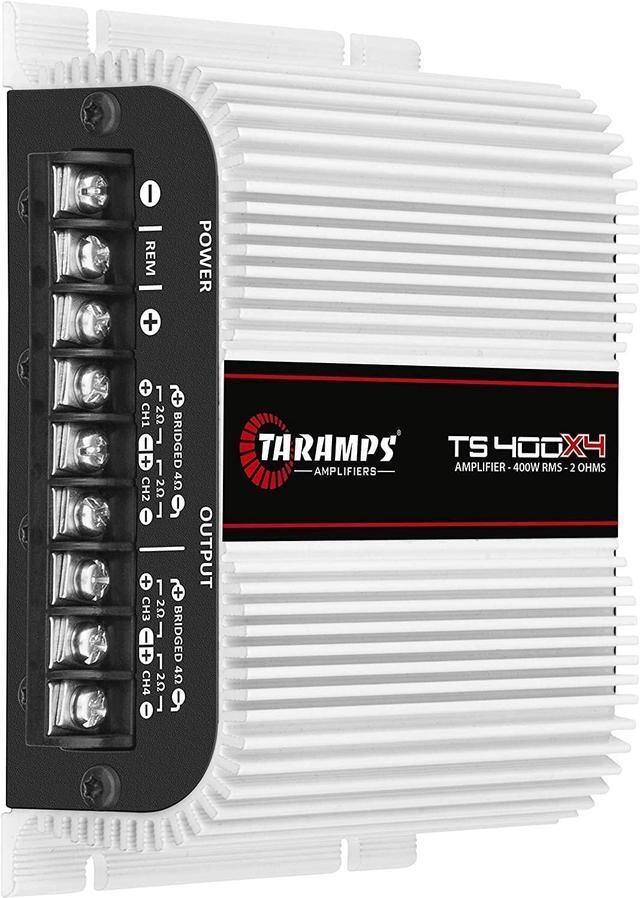

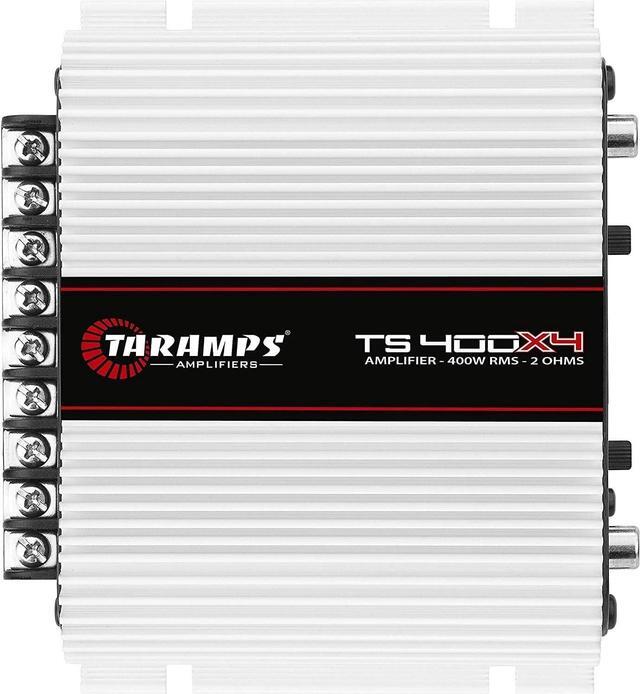

Taramps TS 400x4 400 watts RMS 4 Channels Full Range Car Audio Amplifier, 2 Bridged Channels, RCA Input Class D, Output Power, Multichannel Amplifier System, Small
- The TS line is Full Range amplifiers so it can be wired with subwoofers, woofers, drivers and tweeters, in addition to being 4-channel amplifiers with RCA input and High Level Input.
- The TS 400x4 is 400 Watts RMS rated at 2 Ohms, with 4 channels of 100 Watts RMS each and is a FULL RANGE amplifier.

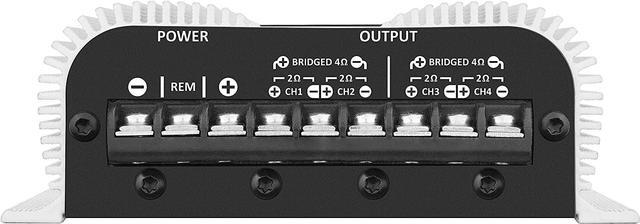

- The Positive/Negative power supply cable is 11 AWG. The output cables wire gauge is 15 AWG and the remote cable is 18 AWG. 20A circuit breaker or a fuse is recommended

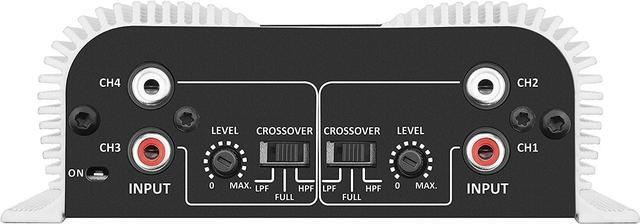

- Crossover: HPF 90Hz (-12dB/8ª) Fixed / LPF 90Hz (-12dB/8ª) Fixed and LEVEL control.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1 x Taramps TS400X4 Full
Range Amplifier Quantity: 1 Amplifier Number of
Channels: 04 Max Power at 13.8 VDC 2
Ohms: 400W (4 x 100W RMS)
Max Power at: 13.8 VDC 4
Ohms: 252W (4 x 63W RMS) Bridged at 13.8 VDC 4
Ohms: 400W (2 x 200W RMS)
Input Sensitivity: 200mV (Vol=Max) Signal to
Noise Ratio: greater than 90dB
Frequency Response: (Full
Range): 18Hz to 30kHz (-3dB)
High Pass Crossover (HPF): 90Hz (-12dB / 8th)
Low Pass Crossover (LPF): 90Hz (-12dB / 8th)
Input Impedance: 22K Ohms Thermal Protection System and Short
Output Minimum Supply Voltage: 8 VDC Maximum
Supply Voltage: 16
VDC Standby Power: 0.8
A Maximum Musical Power: at
13.8VDC: 16.5 A Maximum Consumption in
Sine Signal: (1kHz)
13.8VDC: 33 A
Range Amplifier Quantity: 1 Amplifier Number of
Channels: 04 Max Power at 13.8 VDC 2
Ohms: 400W (4 x 100W RMS)
Max Power at: 13.8 VDC 4
Ohms: 252W (4 x 63W RMS) Bridged at 13.8 VDC 4
Ohms: 400W (2 x 200W RMS)
Input Sensitivity: 200mV (Vol=Max) Signal to
Noise Ratio: greater than 90dB
Frequency Response: (Full
Range): 18Hz to 30kHz (-3dB)
High Pass Crossover (HPF): 90Hz (-12dB / 8th)
Low Pass Crossover (LPF): 90Hz (-12dB / 8th)
Input Impedance: 22K Ohms Thermal Protection System and Short
Output Minimum Supply Voltage: 8 VDC Maximum
Supply Voltage: 16
VDC Standby Power: 0.8
A Maximum Musical Power: at
13.8VDC: 16.5 A Maximum Consumption in
Sine Signal: (1kHz)
13.8VDC: 33 A
