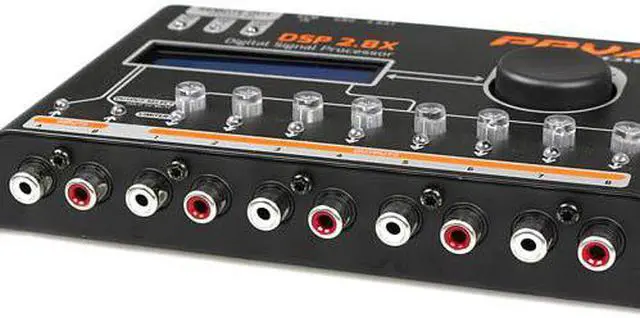

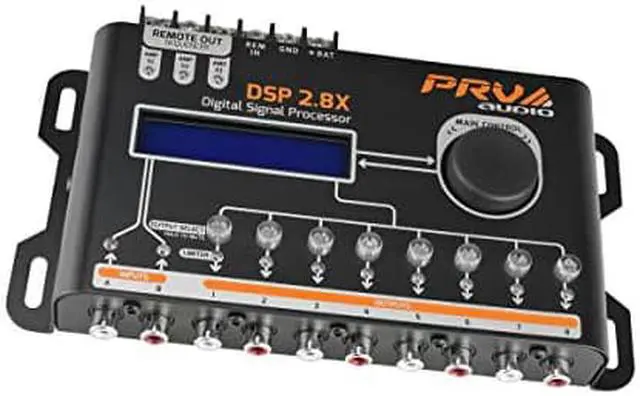

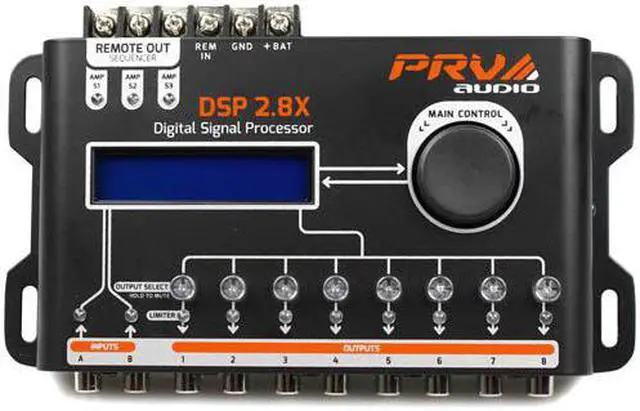

PRV Audio 8 Channel Digital Signal Processor Crossover and Equalizer DSP 2.8X

PRV 8 Way Digital Signal Processor DSP 2.8X

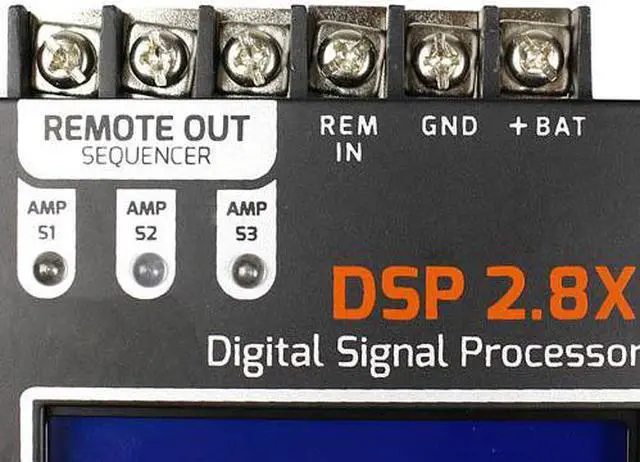

This DSP 2.8X Digital Signal Processor is capable of making various adjustments, from filters, graphic and parametric equalization, alignment, phase inversion, limiter, audio generator, among others. Its sequencer feature allows sequential triggering of other products through the remote trigger connection (REM). Use a cable of at least 20 AWG. The sequencer has three outputs (S1, S2, and S3) which are sequentially activated and deactivated according to the input signal from the remote input. For professional equalization adjustments, it has 1 INPUT Parametric Equalizer and 1 OUTPUT Parametric Equalizer with gain control, specific frequency setting, and equalizer bandwidth, allowing fine adjustments and detailed equalization control.

Features

Number of processors (DSPs): 1
Input Channels: 2
Output Channels: 8
Output Gain: Yes
Master Level: 0 ~ 100%
Graphic Equalizer: 15 Band
Graphic Equalizer Presets: 12
Parametric Equalizer Input: 1
Parametric Equalizer Output: 8 / 1 per Channel
Routing: A, B / A+B
Crossover Butterworth (dB/8ª): 12/18/24/36/48
Crossover Linkwitz-Riley (dB/8ª): 12/18/24/36/48
Limiter: Yes
Automatic Attack/Release: Yes
Delay: 0 to 8 ms (275 cm)
Frequency Generator: 10Hz 22kHz, Level -60 at 0dB
Frequency Scan: 10Hz 22kHz / Level -60 at 0dB / Control of speed
Display: LCD16x2 Characters
Screen Saver: Text
Security Password: Yes
Frequency Response(+/-3dB): 10Hz @ 22.5 kHz @ -1dB
Latency: 1.08 ms
Signal to Noise: >90dB
THD: <0,01%
Channel Separation: > 80 dB
Maximum Input Voltage: 5, 6 Vpp (+8, 2 dBu)
Maximum Output Voltage: 5, 6 Vpp (+8, 2 dBu)
Supply Voltage: 10V to 15V DC
Dimensions (HxWxL): 1.45 x 7.87 x 3.97
