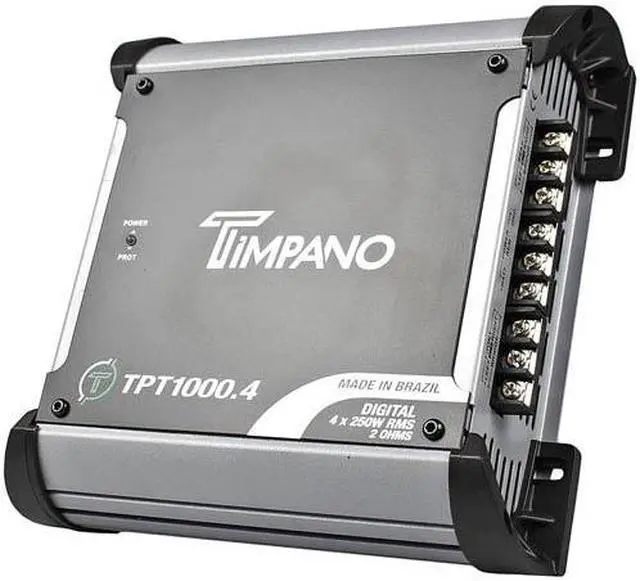

Timpano Digital Car Audio Amplifier 2 Ohm TPT 1000.4
Timpano amplifiers raise power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full-range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.
Features
Number of Channels: 4
RMS Power at 2 Ohms 12.6 Volts: 4x 225 Watts RMS
RMS Power at 4 Ohms 12.6 Volts: 4x 140 Watts RMS
Bridged RMS Power at 4 Ohms 12.6 Volts: 2x 450 Watts RMS
RMS Power at 2 Ohm 14.4 Volts: 4x 260 Watts RMS
RMS Power at 4 Ohm 14.4 Volts: 4x 165 Watts RMS
Bridged RMS Power at 4 Ohms 14.4 Volts: 2x 520 Watts RMS
Supply Voltage: 9 ~ 15V
Frequency Response: 10Hz ~ 26000KHz
Crossover Low Pass: Fixed at 90Hz
Crossover High Pass: Fixed at 90Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Sensitivity: 0.2 V
Input Impedance: 14K Ohms
Impedance Output: 2 Ohms
Consumption with Signal Musical: 4A ~ 50A
Dimensions (L x W x H): 8.11 x 8.11 x 2.60
