Timpano 4 Channel Amplifier 500 Watts Max 2 Ohm Digital Car Audio Amp TPT-500.4
- Dynamic Output: 4 x 125 Watts RMS 2 Ohms
- RMS Power at 2 Ohms 12.6 Volts: 4x 100 Watts RMS
- RMS Power at 4 Ohms 12.6 Volts: 4x 50 Watts RMS
- Bridged RMS Power at 4 Ohms 12.6 Volts: 2x 200 Watts RMS
- RMS Power at 2 Ohm 14.4 Volts: 4x 115 Watts RMS
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

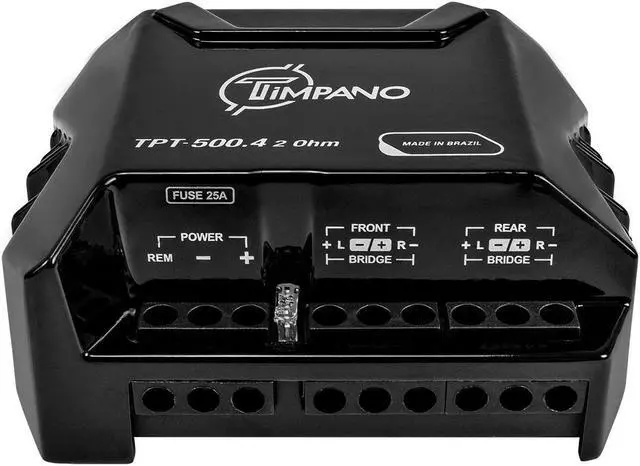

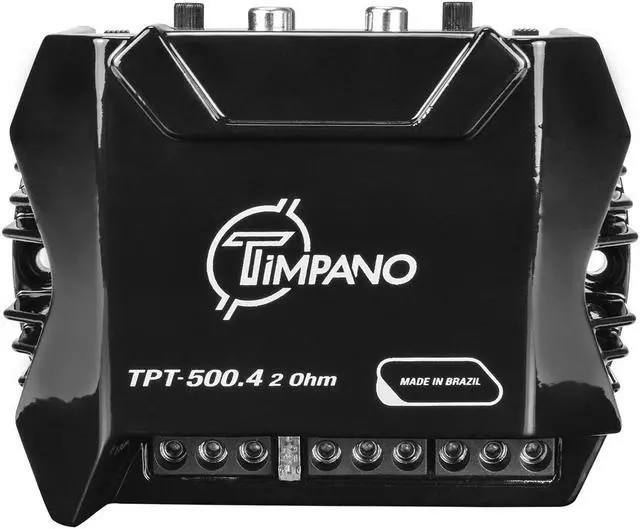

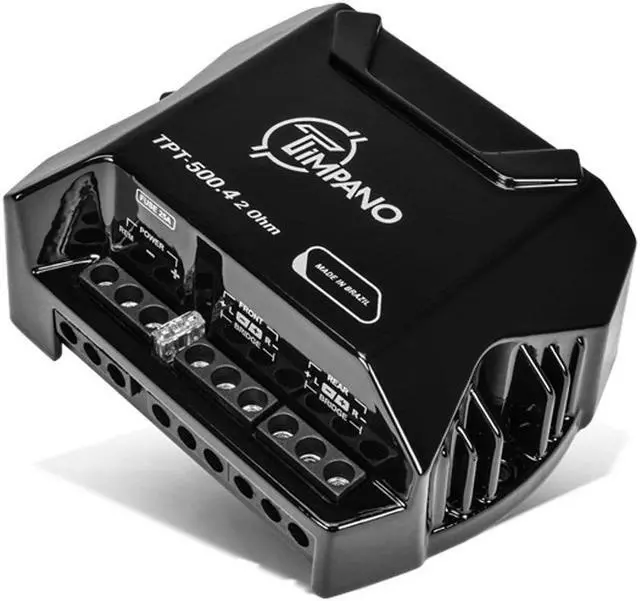

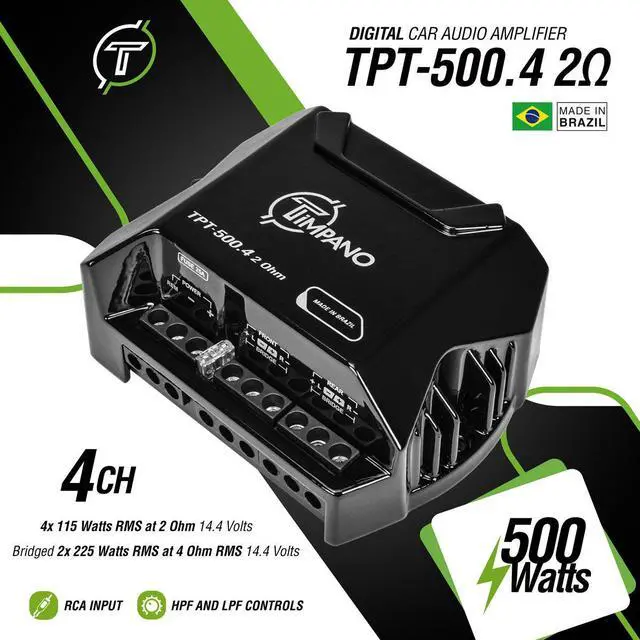

Timpano Digital Car Audio Amplifier 2 Ohm TPT- 500.4
Timpano amplifiers raise power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.
Features
Number of Channels: 4
Dynamic Output: 4 x 125 Watts RMS 2 Ohms
RMS Power at 2 Ohms 12.6 Volts: 4x 100 Watts RMS
RMS Power at 4 Ohms 12.6 Volts: 4x 50 Watts RMS
Bridged RMS Power at 4 Ohms 12.6 Volts: 2x 200 Watts RMS
RMS Power at 2 Ohm 14.4 Volts: 4x 115 Watts RMS
RMS Power at 4 Ohm 14.4 Volts: 4x 55 Watts RMS
Bridged RMS Power at 4 Ohms 14.4 Volts: 2x 225 Watts RMS
Supply Voltage: 10 ~ 15V
Frequency Response: 10Hz ~ 24KHz
Crossover Low Pass: Fixed at 90Hz + 45Hz bass boost
Crossover High Pass: Fixed at 90Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Impedance: 20K Ohms
Impedance Output: 2 Ohms
Consumption with Signal Musical: 1A ~ 17A
Dimensions (L x W x H): 3.93 x 5.02 x 2
Timpano amplifiers raise power amplification to a new standard of quality and usability. The new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers on the market. Loaded with features, it provides an unsurpassed efficiency rate of 85-95% in a compact Class D full range amplifier.
Features
Number of Channels: 4
Dynamic Output: 4 x 125 Watts RMS 2 Ohms
RMS Power at 2 Ohms 12.6 Volts: 4x 100 Watts RMS
RMS Power at 4 Ohms 12.6 Volts: 4x 50 Watts RMS
Bridged RMS Power at 4 Ohms 12.6 Volts: 2x 200 Watts RMS
RMS Power at 2 Ohm 14.4 Volts: 4x 115 Watts RMS
RMS Power at 4 Ohm 14.4 Volts: 4x 55 Watts RMS
Bridged RMS Power at 4 Ohms 14.4 Volts: 2x 225 Watts RMS
Supply Voltage: 10 ~ 15V
Frequency Response: 10Hz ~ 24KHz
Crossover Low Pass: Fixed at 90Hz + 45Hz bass boost
Crossover High Pass: Fixed at 90Hz
Signal to Noise: > 90 dB
Harmonic Distortion: < 0.9 % THD
Input Impedance: 20K Ohms
Impedance Output: 2 Ohms
Consumption with Signal Musical: 1A ~ 17A
Dimensions (L x W x H): 3.93 x 5.02 x 2
