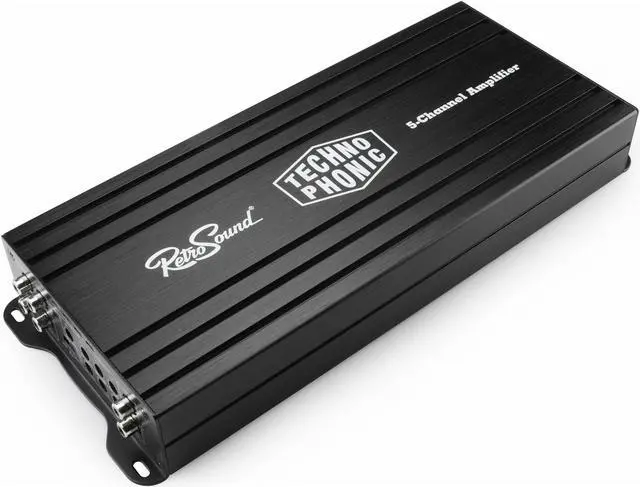

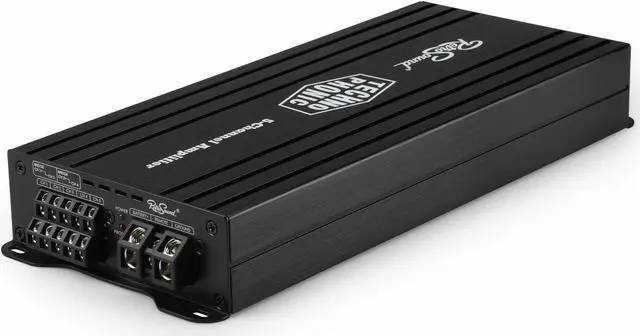

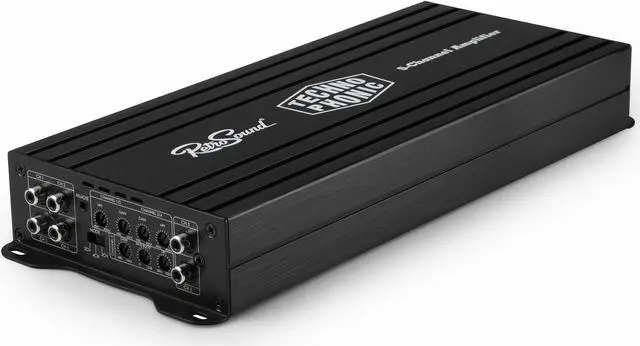

Technophonic 5-channel Class D Power Amplifier with Wiring Kit

Power your whole system with the RetroSound® Technophonic amplifier. The Technophonic is a 5-channel amplifier that pushes 65-watts RMS to all four speakers and delivers up to 330-watt RMS to your subwoofer. Switch the Technophonic to 2 or 4 channel modes for radios with only 2 or 4 inputs, and the Technophonic intelligently routes the selected inputs to all five balanced outputs. The Technophonic is 2-ohm or 4-ohm stable and bridgeable, giving you more flexibility to build your system. The low-level RCA inputs allow you to connect the Technophonic effortlessly to your RetroSound radio, or any aftermarket stereo with RCA outputs.

Whether you're looking to build a balanced system or going for high power and performance, the Technonphonic amplifier has everything you need.
Crank up the volume without distortion. The Technophonic features low current draw and Class D Digital circuitry, providing exceptional dynamic range and low distortion so you can listen to your favorite songs as loud as you want! High-pass and low-pass filters let you fine-tune your audio for the best listening experience, with remote gain control to adjust bass levels on the fly from the front seat.

5-channel amplifier
Full-range Class D digital circuitry
65-watts RMS x 4 channels full-range @ 4 ohms (95-watts RMS x 4 @ 2 ohms)
225-watts RMS x 1 channel subwoofer @ 4 ohms (330-watts RMS @ 2 ohms)
Selectable input mode switch for 2, 4, and 5 channel operation

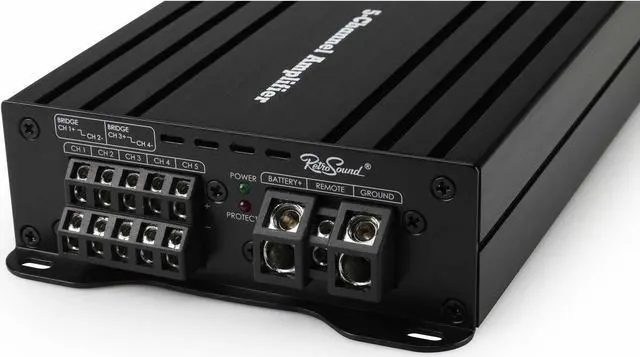

Bridgeable
2-ohm and 4-ohm stable

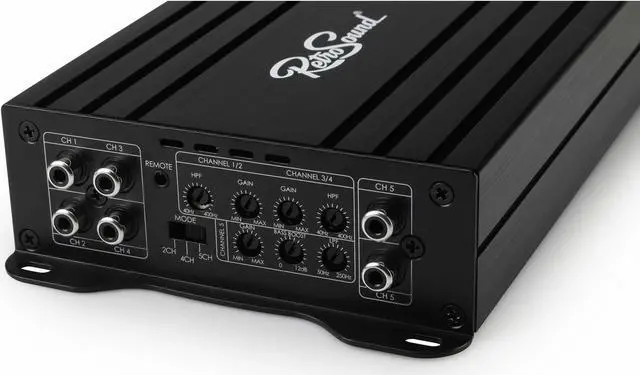

Built-in variable low pass and high pass full-range filters
Bass boost (0-12db) and remote gain control
Advanced protection circuitry
Easily connects to your RetroSound radio via RCA inputs
Works with any aftermarket radio with low-level RCA outputs
Dimensions: 12.9 in x 5.3 in x 1.87 in (33 cm x 13.4 cm x 4.75 cm)
Fuse Rating: 60-amp

Simplify the installation of your RetroSound® Technophonic amplifier with this convenient wiring kit that includes everything you’ ll need to get your 5-channel amplifier installed. The RetroSound 5 Channel Amplifier Wiring Kit comes with: one 60 amp mini-ANL fuse and quality fuse holder, 13 ft (4 m) of 8-gauge red power wire, 5 ft ( 1.5 m) of 8-gauge black ground wire, 13 ft (4 m) of 18-gauge blue turn-on wire, three sets of RCA cables, two 8-gauge ring terminals, two 18-gauge butt connectors, and a hex key.
