ORACLE Lighting Headlight Assembly For 07-18 Jeep Wrangler JK 5769-504

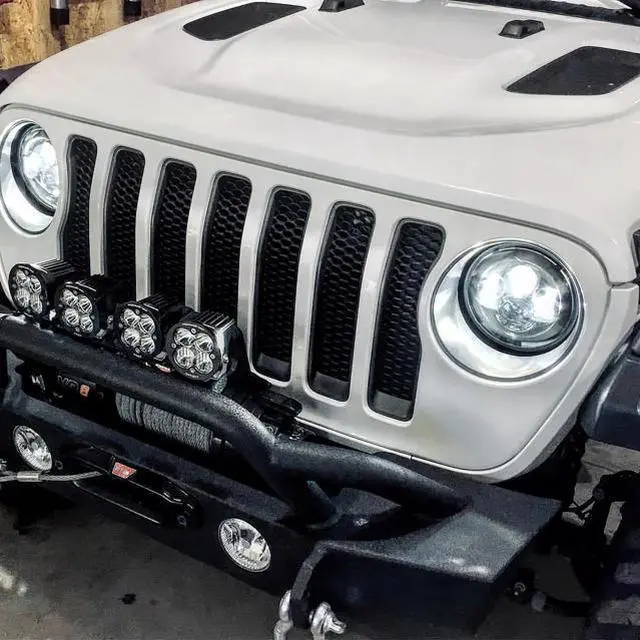

The Ultimate LED replacement headlight option for any vehicle with 7” Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 “Plug and Play” connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization! • Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.

• NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues. • Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. • Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. • Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.

• LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
Additional Specifications: •
Low Beam Wattage: 30W Normal/36W Max •
Low Beam Lumens: 2200 Lumens/3600 Raw Lumens •
High Beam Wattage: 40W Normal/48W Max •
High Beam Lumens: 3600 Lumens/4800 Raw
Lumens • Color Temperature: 6000K (Cool White Color) •
Input Voltage of Light: 12-24V DC • Input Voltage of
Halo (If Included): 12V DC •
Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC

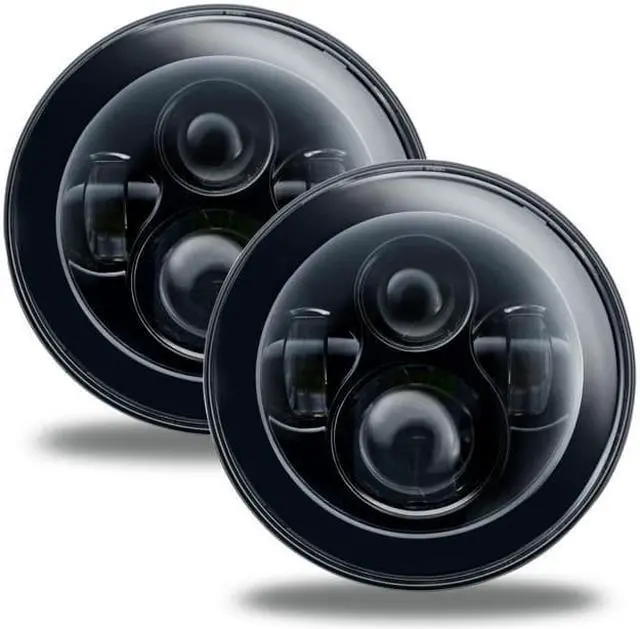

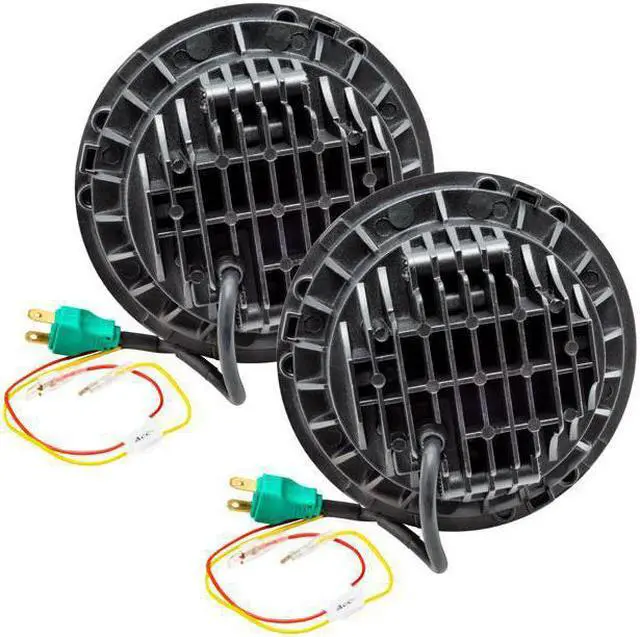

Package Includes: • 2 x ORACLE 7" High Powered LED Headlights (Pair) - Black Bezel • 2 x "Plug & Play" Wiring Adapters
