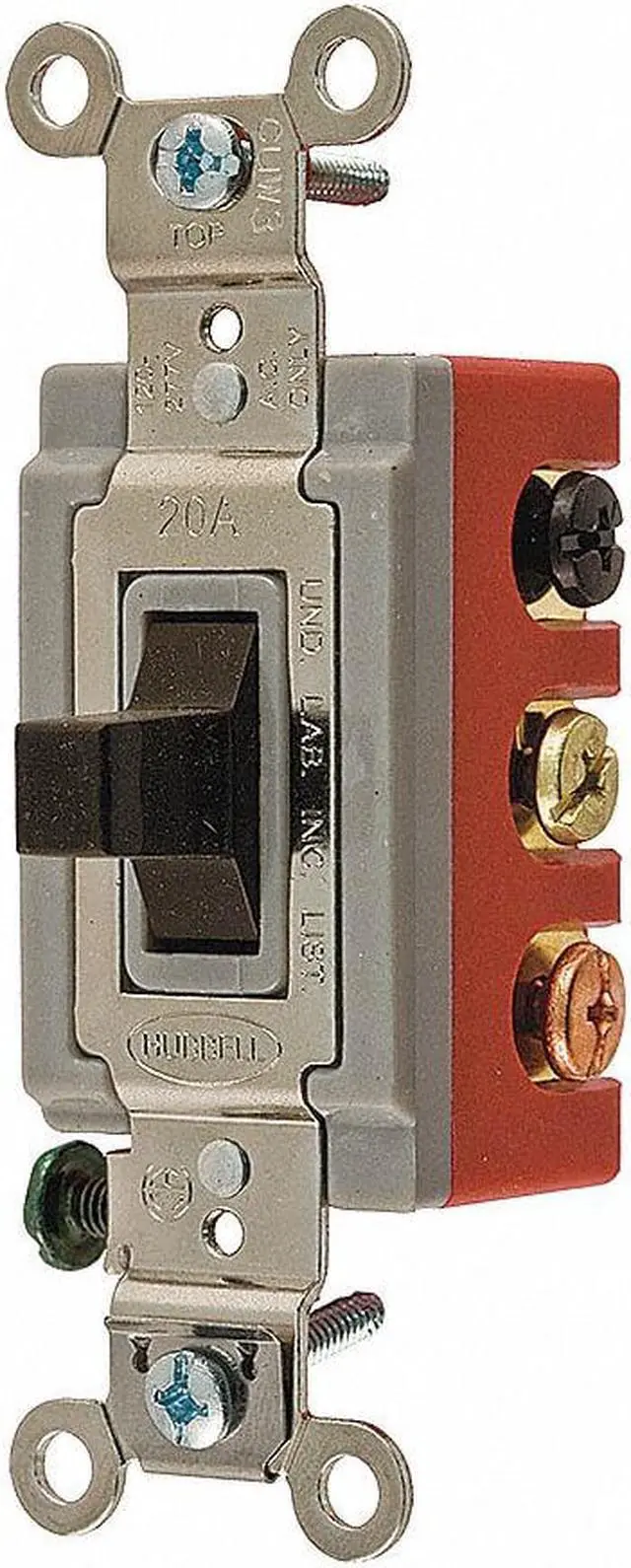

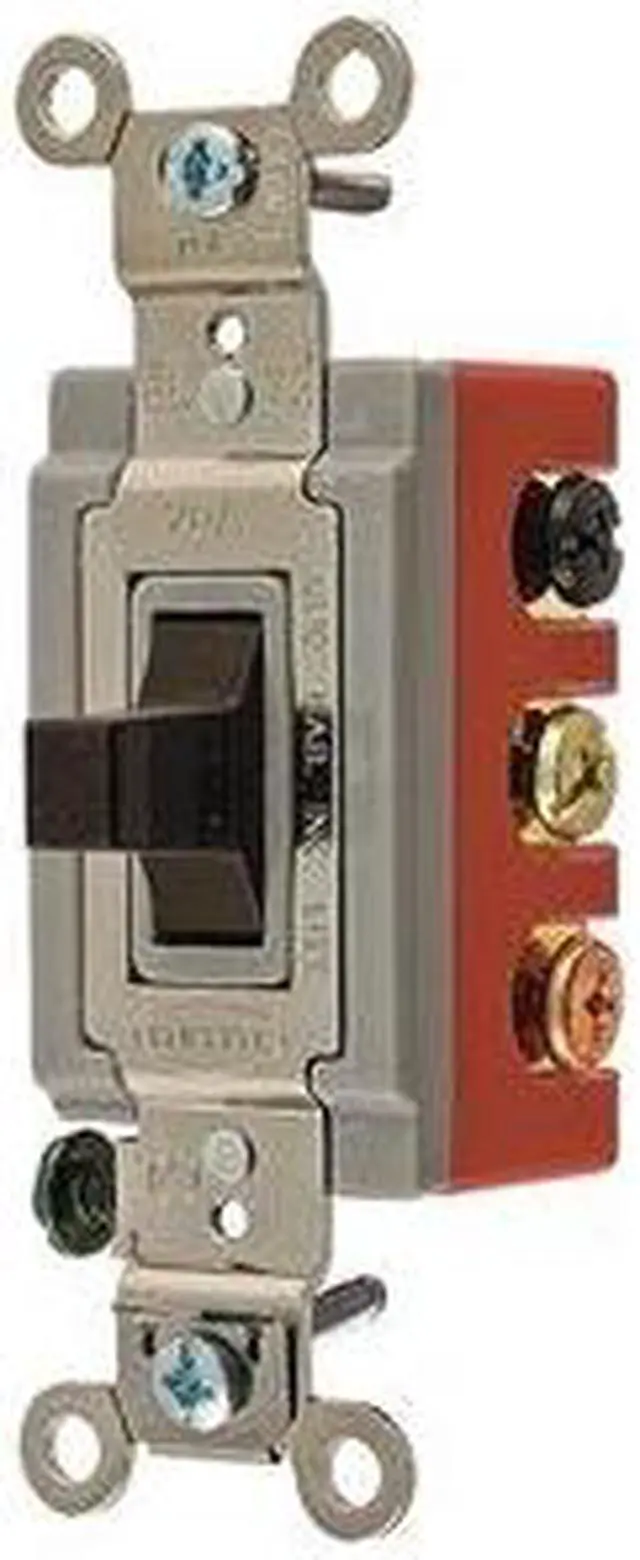

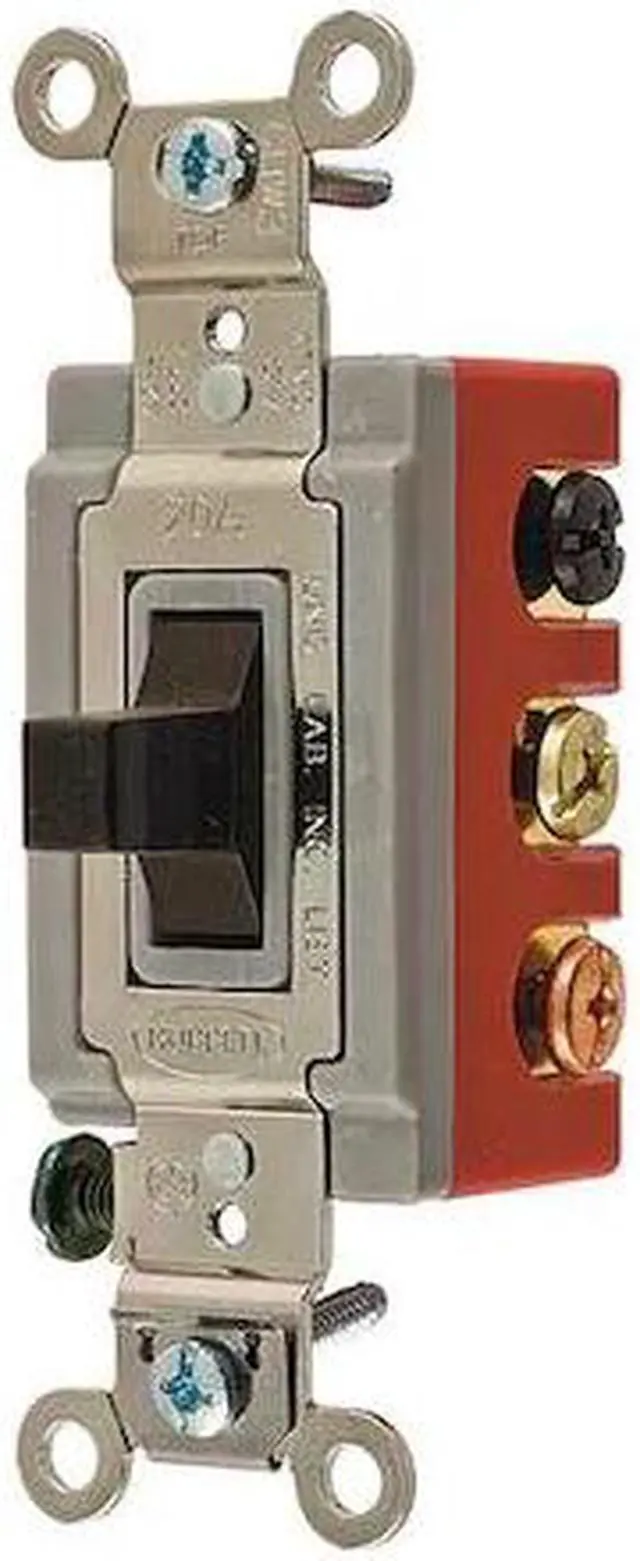

HUBBELL WIRING DEVICE-KELLEMS HBL1386 Wall Swtch,2-Pole,120/277V,20A,Brn,Toggl

The HUBBELL Wall Switch is a double pole, double throw (DPDT) industrial-grade toggle switch rated for 20A at 120/277V AC. Designed for back and side wiring, it features a maintained switch function with three handle positions and accommodates #14 to #10 AWG solid or stranded copper wire. The switch is constructed with a durable nylon toggle and housing, For use in industrial environments.

Key Features of the HUBBELL Wall Switch:

• Switch Type: Double Pole Double Throw (DPDT) with center off position


• Electrical Ratings: Rated for 20A, 120/277V AC; supports up to 1 horsepower


• Wiring Method: Back and side wired; screw terminals accommodate #14#10 AWG copper wire


• Construction: Nylon material construction


• Screw Terminals: Large brass binding head screws with deep slots for designed to facilitate fastening


• Strip Gauge: Integrated strip gauge aids in accurate wiring during installation


• Performance Standards: UL Listed and CSA Certified; meets UL 94V-2 flammability requirements


• Operating Temperature Range: -40°F to 167°F (-40°C to 75°C)
