Switch, Disconnect, 30 A

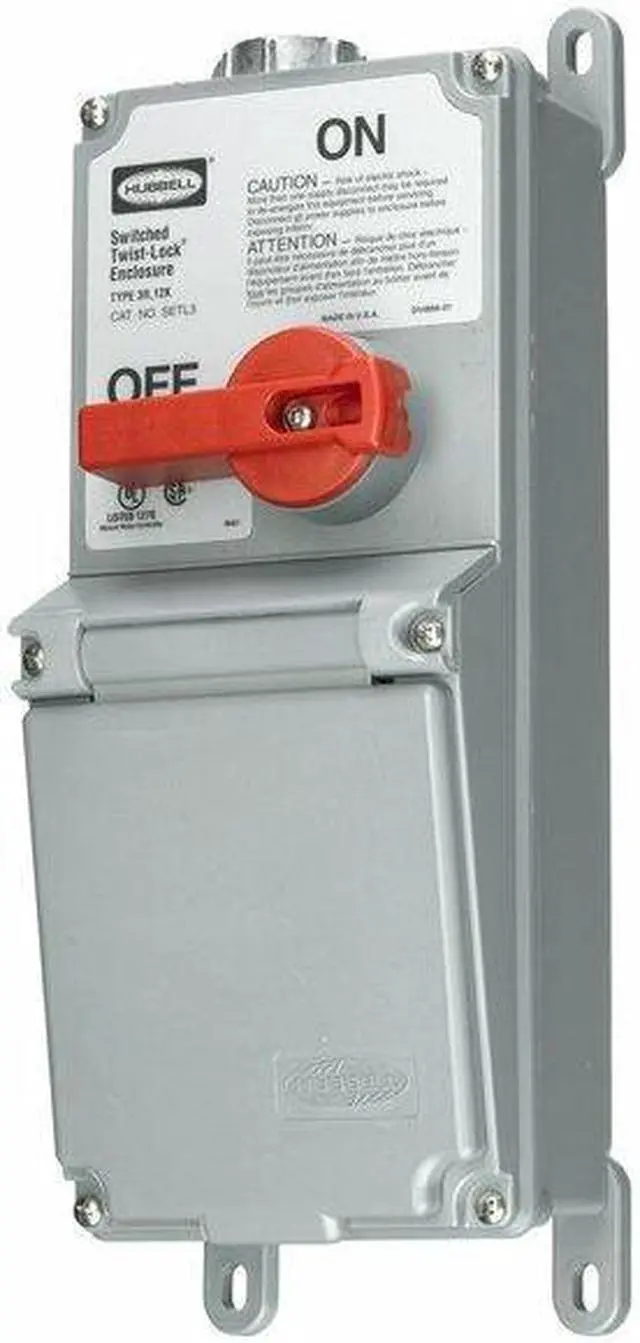

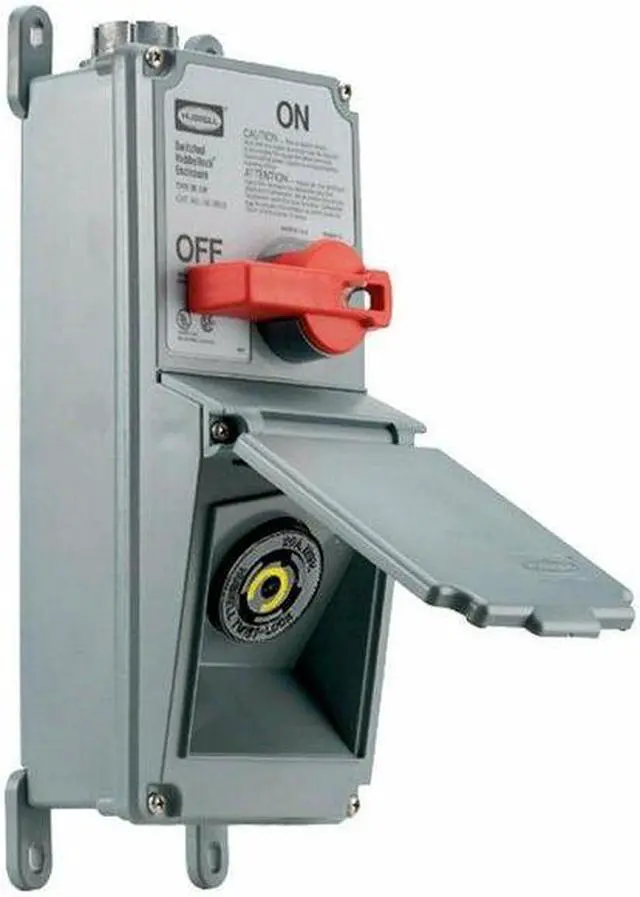

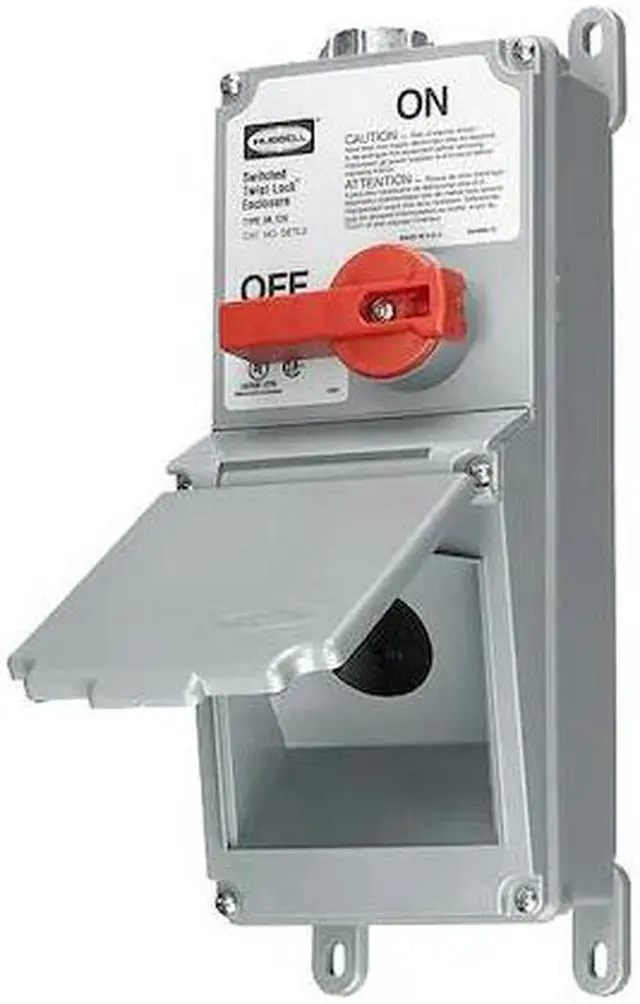

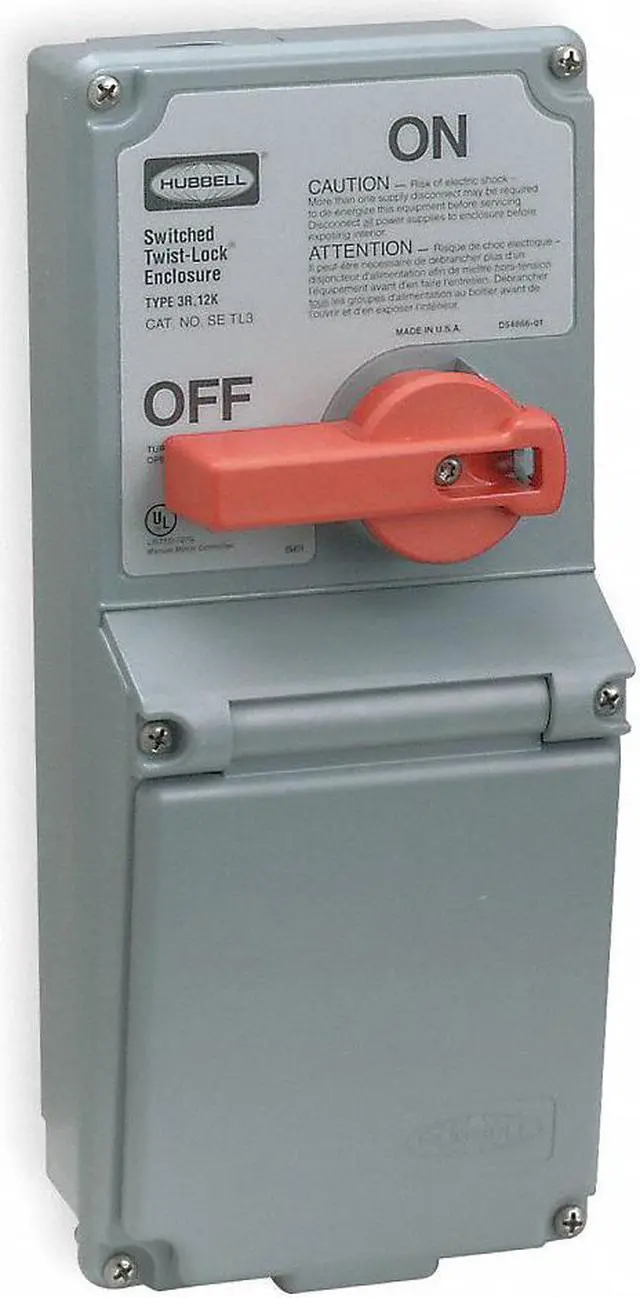

The HUBBELL Nonfusible Disconnect Switch is a 30 A, 600V AC, 3-pole switched enclosure compatible with Safety-Shroud Twist-Lock® receptacles. This non-metallic unit integrates both a disconnect switch and an angled receptacle in a compact housing suitable for indoor or outdoor environments. The enclosure meets NEMA 12K (dust-tight) and 3R (rainproof) ratings, providing suitability for various installation locations. It features lockable handle functionality for added operational control and supports top, bottom, or back feed wiring configurations.

Key Features of the HUBBELL Nonfusible Disconnect Switch:

• Current/Voltage Rating: Rated for up to 30 A at 600V AC; supports heavy-duty applications


• Pole/Phase Configuration: Three poles (3PST), three-phase operation


• NEMA Enclosure Ratings: Type 12K (dust-tight) and Type 3R (rainproof); IP54 suitability


• Material & Resistance: Constructed from non-metallic, UV stabilized materials


• Operating Temperature Range: -40°C minimum to +75°C maximum


• Mounting Options: External fully adjustable feet with flange mounting mechanism


• Terminal Accommodation: Accepts #10 AWG wire for up to 30A connections; terminals identified per UL standards


• Circuit Protection Method: Nonfusible design with mechanical life of up to 10,000 cycles and electrical life of up to 6,000 cycles


• Standards Compliance: Meets UL/CSA requirements; dielectric voltage withstands minimums as specified by manufacturer
