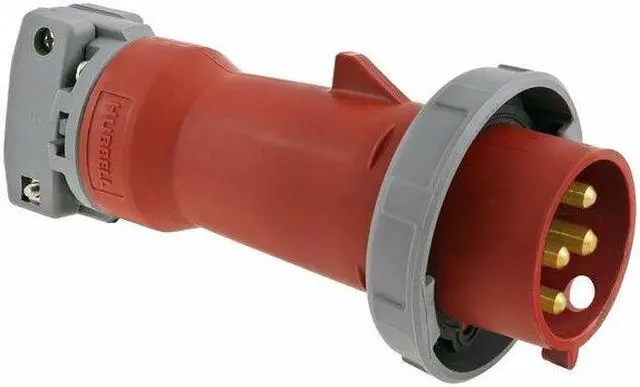

HUBBELL WIRING DEVICE-KELLEMS HBL4100P7W Watertight Pin & Sleeve Plug, 100 A,

The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. Rated for 100A and 480V AC, this three-phase, four-wire plug includes a non-metallic housing made from Zytel 801 nylon. The device includes solid one-piece pins for reliable contact, a gasketed sealing ring; rated IP67, to maintain watertight integrity, and external cord grips for strain relief. It meets multiple standards including UL IEC 60309-1, CSA Certified C22.2 No. 182.1, and carries an IP67/NEMA 4X rating.

Key Features of the HUBBELL IEC Pin & Sleeve Plug:

• Current/Voltage Rating: Rated for 100A at 480V AC (three-phase)


• Body Material: Constructed from impact-resistant Zytel 801 nylon


• Watertight Design: Gasketed sealing ring; rated IP67


• NEMA Enclosure Rating: Suitable for NEMA Type 4X applications


• Cable Accommodation: Accepts wire sizes from 3 AWG to 1/0 AWG; cable diameter up to 1.065 in


• Operating Temperature Range: -40°C to +75°C


• Wire Connection Type: Screw terminals with straight connection orientation


• Pole/Wire Configuration: Three poles, four wires; grounded per IEC style


• Standards Compliance: UL E146032 listed; CSA Certified C22.2 No.182.1; UL IEC 60309-1 compliant
