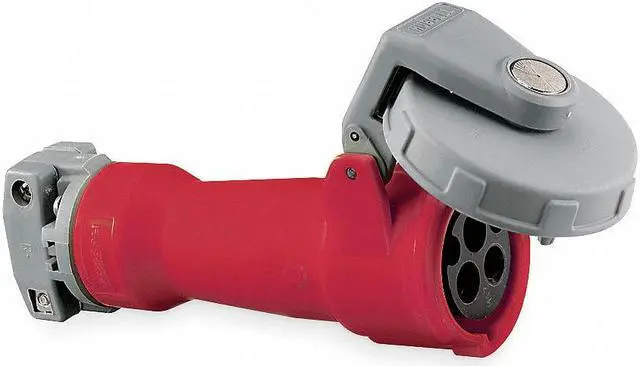

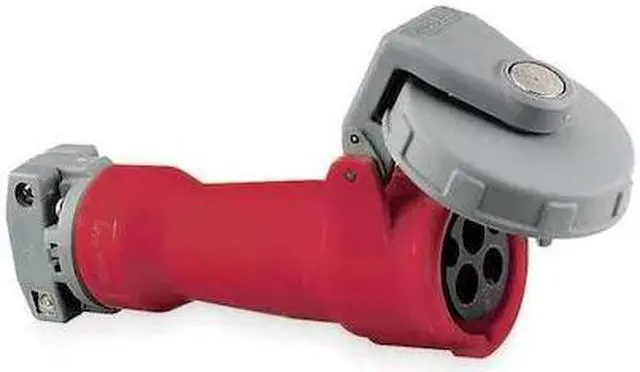

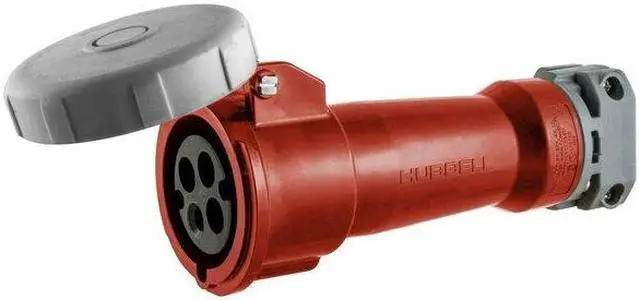

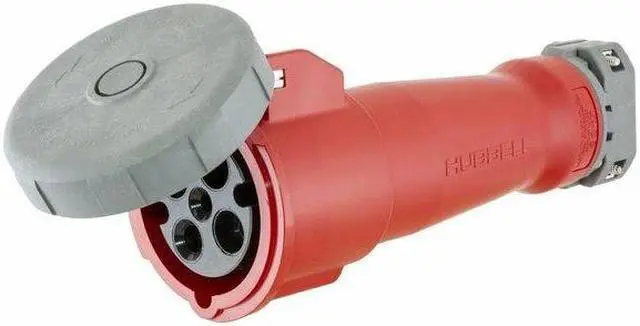

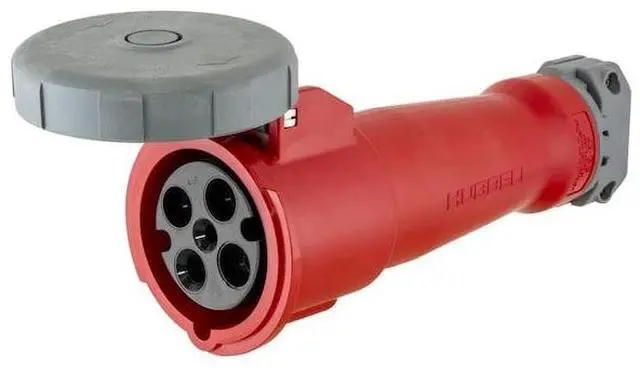

HUBBELL WIRING DEVICE-KELLEMS HBL430C7W Watertight Pin & Sleeve Connector, 30

The HUBBELL IEC Pin and Sleeve Connector is a rated IP68/IP69K for ingress protection connector suitable for industrial applications, rated for 30A and 480V AC in three-phase systems. This connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, housing material is Zytel 801 nylon and PBT. It supports wire sizes from 12 AWG to 8 AWG with screw terminal connections and includes a spring-loaded cap.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 30 amps at 480V AC (three-phase)


• Housing Material: Constructed from Zytel 801 nylon with PBT housing grade


• Ingress Protection: IP68/IP69K rating; NEMA Type 4X enclosure


• Cable Compatibility: Accepts cable diameters from 0.375 in to 1.25 in


• Operating Temperature Range: -40°C to +75°C


• Number of Poles/Wires: Three poles, four wires; grounded per IEC style


• Cord Grip & Cap: External cord grip with self-closing gasketed cover (spring-loaded cap)


• Color Coding: Red color-coded housing for voltage identification


• Flammability Rating: UL94 V-0


• Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed
