HUBBELL WIRING DEVICE-KELLEMS HBL460R7W Watertight Pin & Sleeve Receptacle, 60

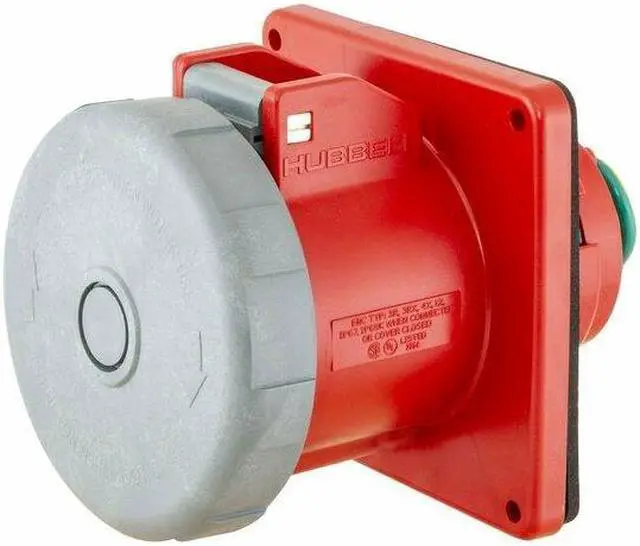

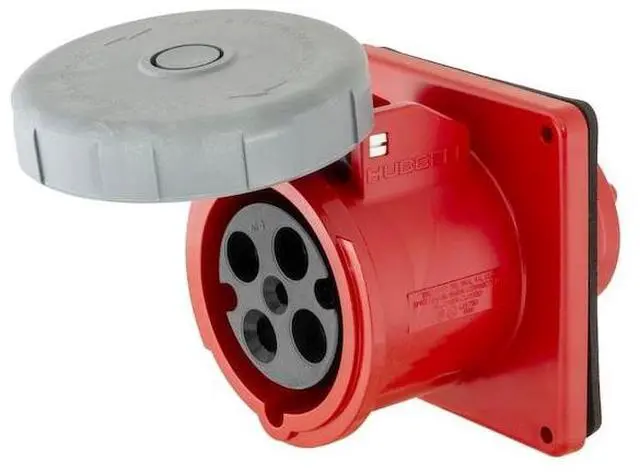

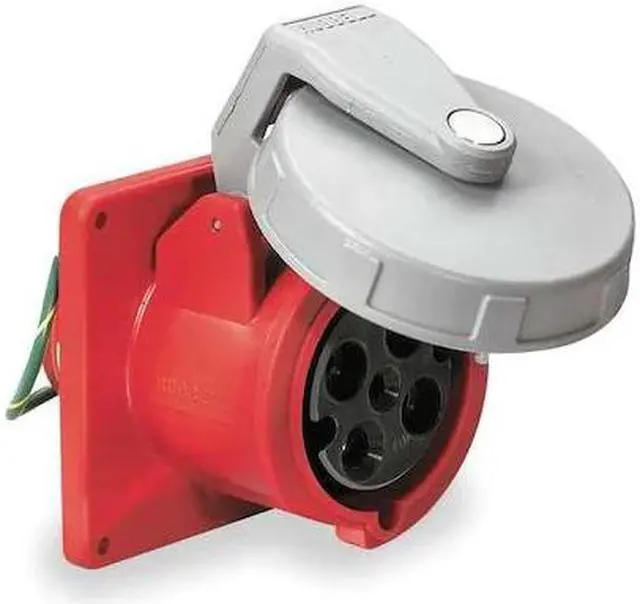

The HUBBELL IEC Pin and Sleeve Receptacle is rated for 60 amps and 480V AC in three-phase systems. Constructed with a Zytel 101 nylon body and housing, this receptacle offers resistance to impact, moisture, and high temperatures. It features a flanged design with screw terminal wire connections suitable for wire sizes from 8 AWG to 2 AWG. The unit meets IP67 and NEMA 4X enclosure ratings, making it suitable for demanding environments where protection against water ingress is required.

Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:

• Current/Voltage Rating: Rated for 60A at 480V AC (three-phase)


• Body/Housing Material: Zytel 101 nylon


• Ingress Protection: IP67 rating; NEMA Enclosure Type 4X


• Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG


• Operating Temperature Range: -40°C to +75°C


• Number of Poles/Wires: Four poles, five wires configuration


• Connection Orientation: Straight; screw terminal connection type


• Flange/Gasket Materials: Flanged design with neoprene gasket for watertight sealing


• Resistance Properties: Constructed from materials rated as impact resistant, moisture resistant, watertight per applicable standards
