HUBBELL WIRING DEVICE-KELLEMS HBL5678C Straight Blade Inlet, 15 A, 250V AC, 2

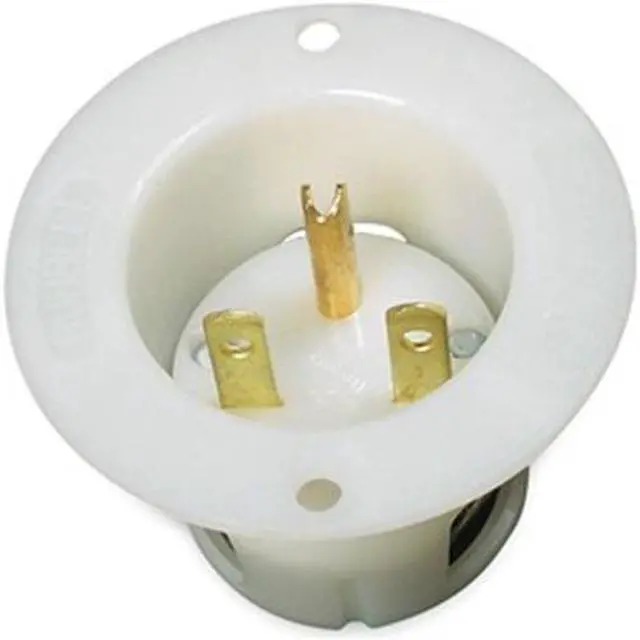

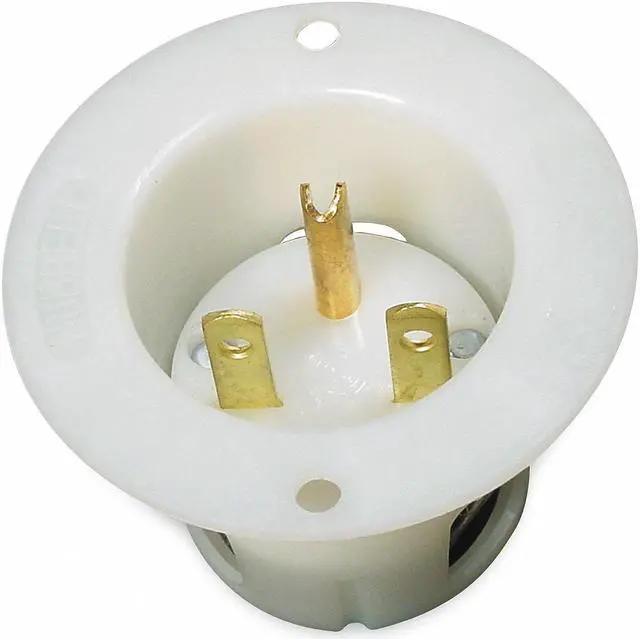

The HUBBELL Flanged Inlet is a panel mount, single straight blade receptacle suitable for use in industrial applications. Rated for 15A and 250V AC, this inlet includes a round flange; NEMA 6-15R configuration. It is housing made of thermoplastic materials and includes backwired terminations to accommodate #18-#10 AWG copper conductors. The device is equipped with screw terminals for grounding and comes with mounting screws for installation.

Key Features of the HUBBELL Flanged Inlet:

• Amperage/Voltage: Rated for 15A, 250V AC


• NEMA Configuration: 6-15R (2 pole, 3-wire grounding)


• Construction: Nylon/polycarbonate housing; brass blades


• Mounting Type: Panel mount with included mounting screws


• Wire Connection: Backwired screw terminals suitable for #18#10 AWG copper wire


• Dielectric Strength: rated at 2,000V


• Temperature Range: Operating temperature range: -40°C to +75°C


• Certain Standards Met: UL Listed (E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant


• No cover or surge/tamper/weather resistance features included; indoor dry use unless otherwise protected
