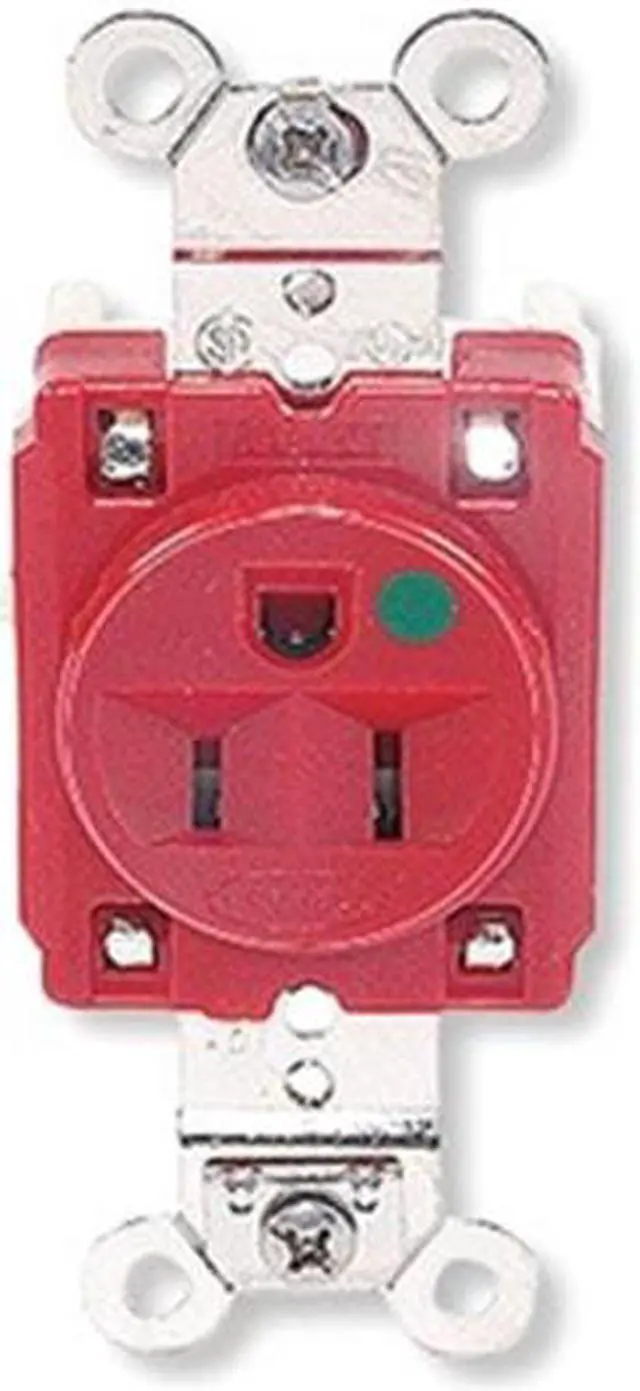

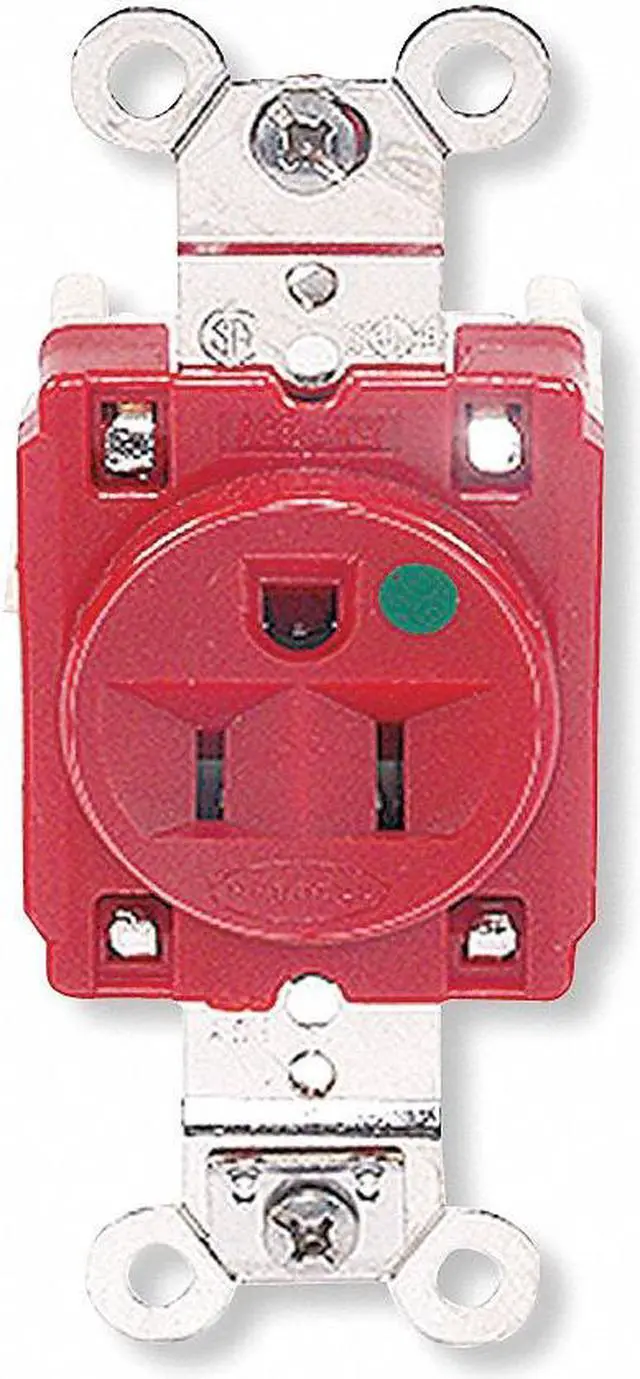

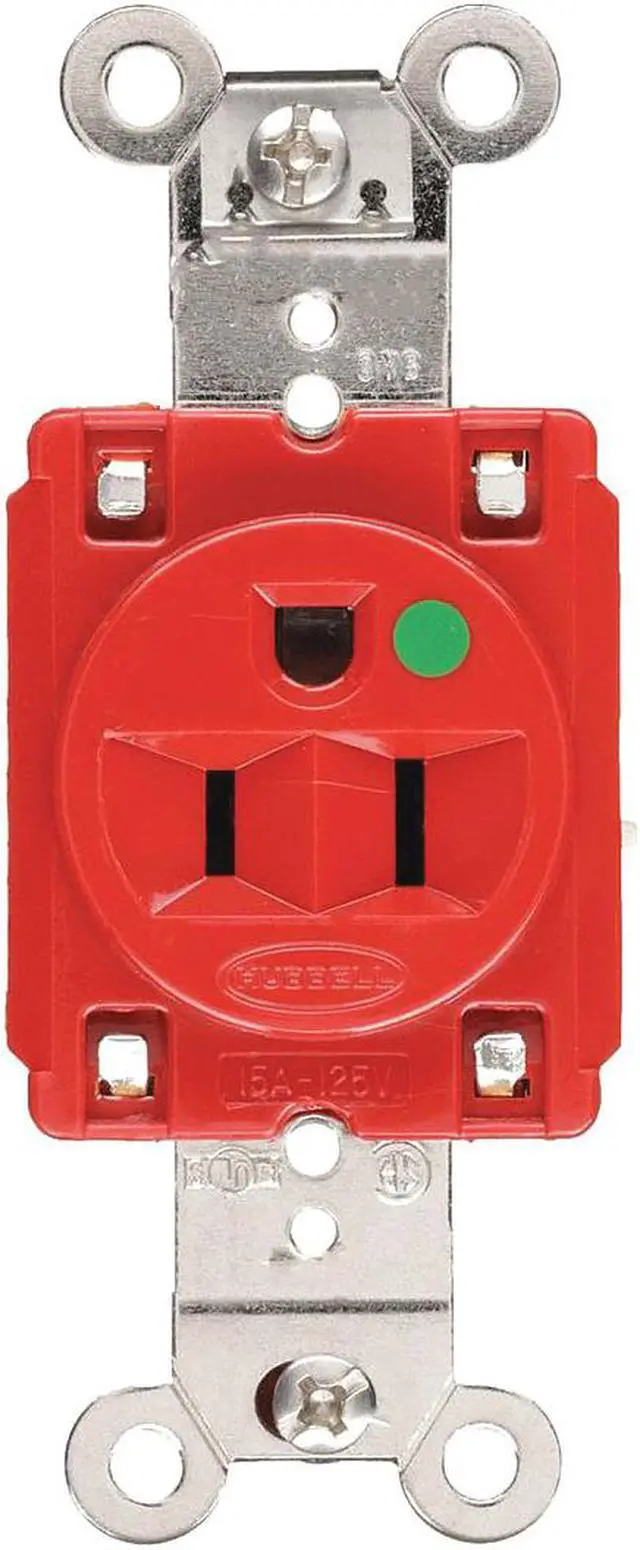

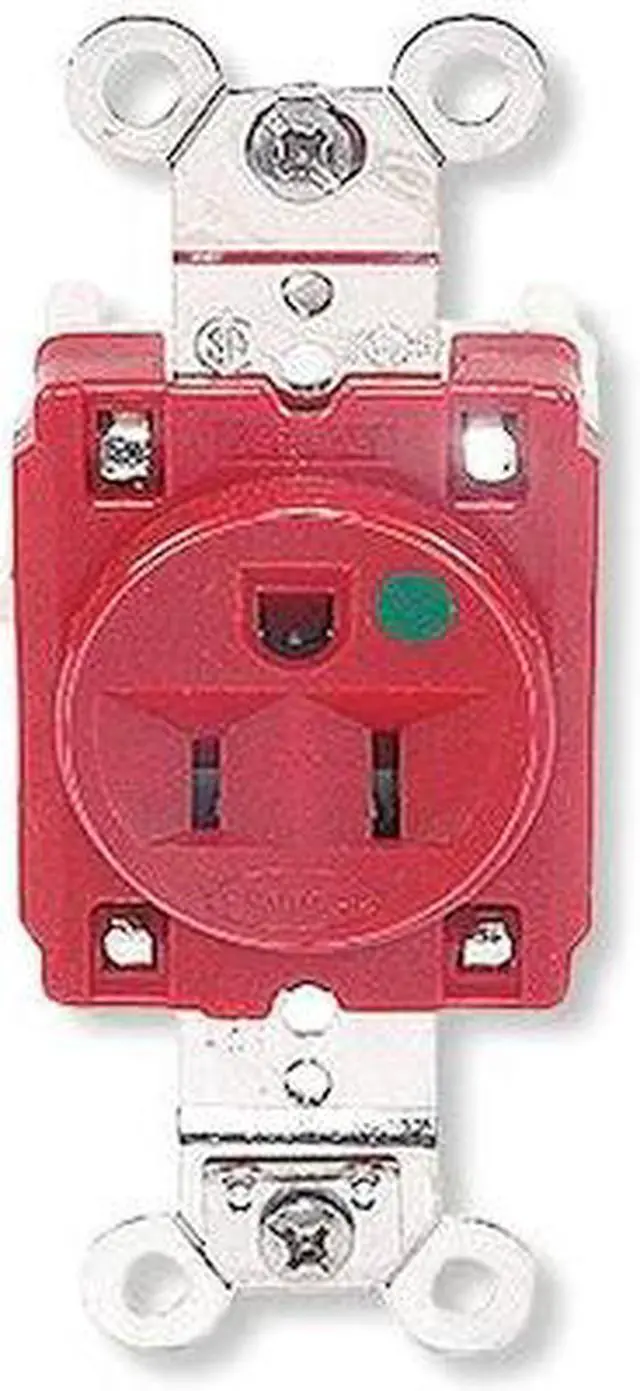

HUBBELL WIRING DEVICE-KELLEMS HBL8210R Straight Blade Receptacle, 5-15R, 15 A,

The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for use in high-traffic or commercial settings. This single NEMA 5-15R receptacle features a one-piece nickel-plated brass integral ground strap and features a patented bypass contact design to increase contact pressure and reduce operating temperature. It is rated for hospital grade applications, meets applicable UL requirements (UL498 File E2186).

Key Features of the HUBBELL Hospital Grade Single Receptacle:

• Amperage/Voltage: Rated for 15A at 125V AC


• NEMA Configuration: Single outlet, NEMA 5-15R


• Mounting Type: Flush mount with included grounding clip and mounting hardware


• Wiring Method: Back and side wired screw terminals; accommodates #14#10 AWG copper conductors


• Contact Material: Brass contacts with exclusive nickel-plated bypass design


• Grounding System: Four-point grounding provides redundant low-resistance continuity


• Material Construction: Nylon/reinforced thermoplastic polyester housing; impact-resistant deep face design


• Operating Temperature Range: -40°C to +75°C (without impact)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186


• Dielectric Strength & Flammability Ratings: Withstands minimum 2,000V; Top flammability rating UL94V-2/Base UL94V-0 & UL94-5VA
