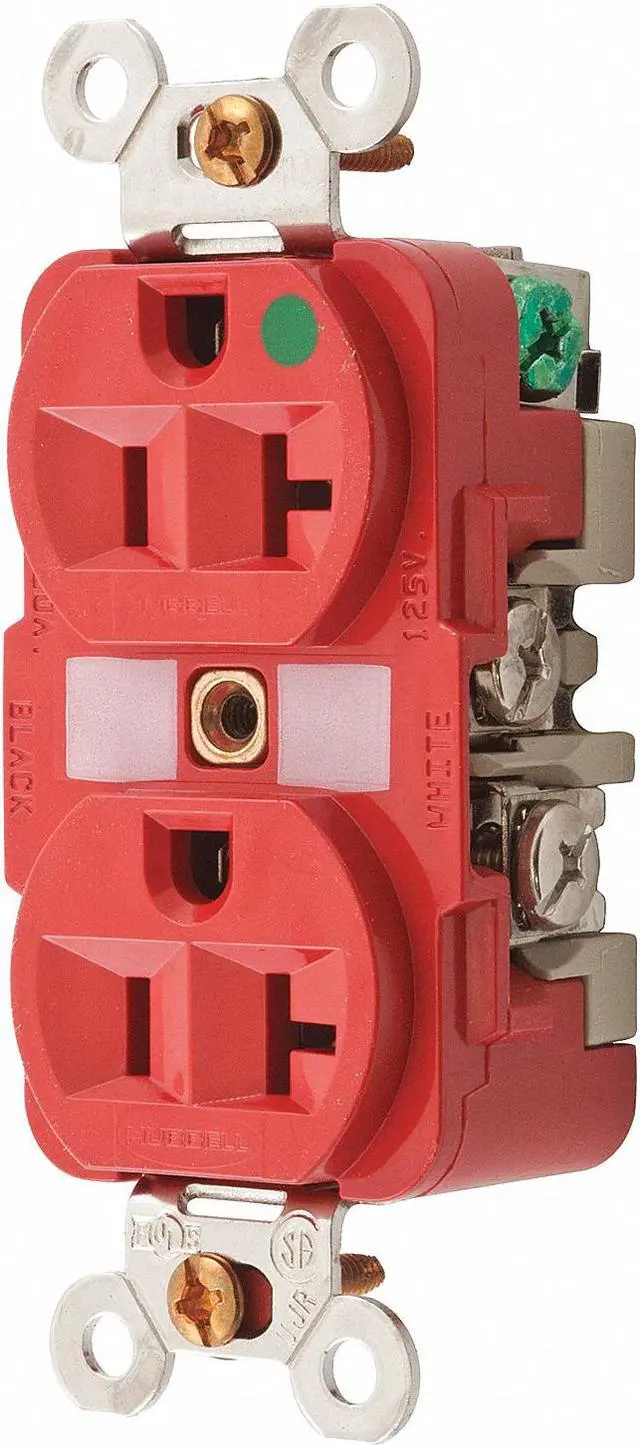

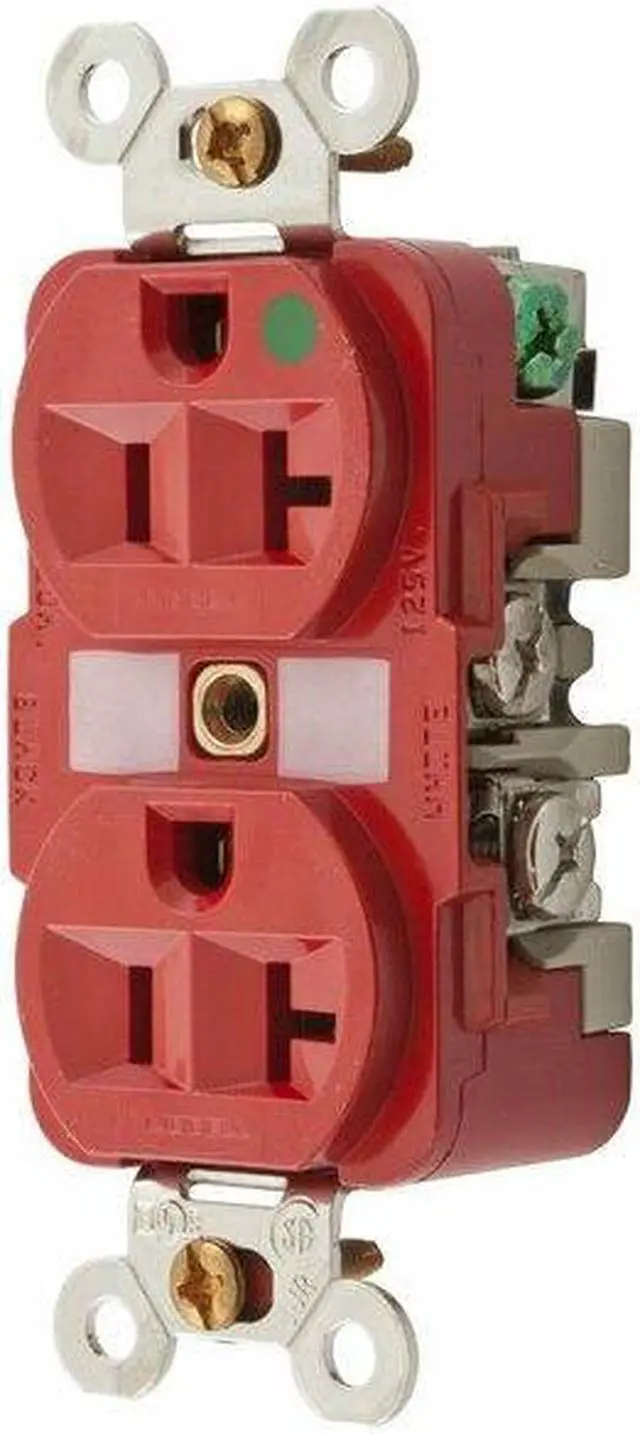

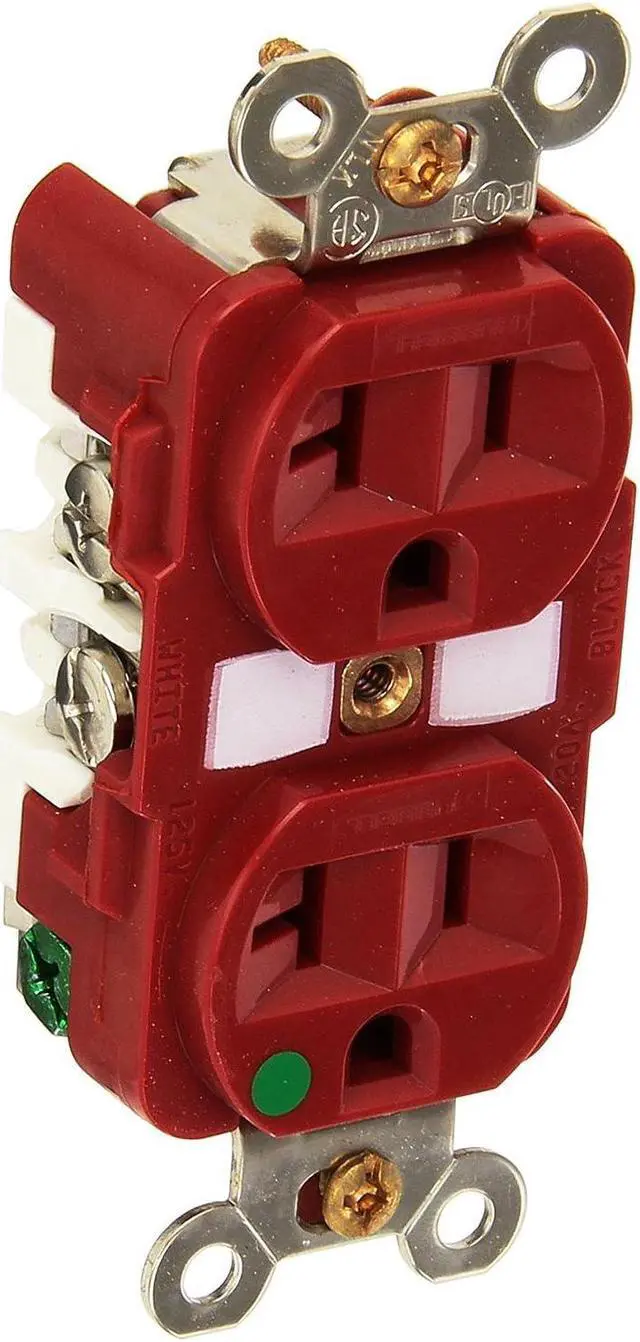

HUBBELL WIRING DEVICE-KELLEMS HBL8300RMRI Duplex Straight Blade Receptacle,

The HUBBELL 20A Duplex MRI Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in medical and MRI lab environments. It features all non-ferrous construction to prevent magnetic interference, with a flush mount design suitable for indoor installations. The receptacle supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG copper wire.

Key Features of the HUBBELL 20A Duplex MRI Receptacle:

• Amperage/Voltage: Rated for 20 A at 125 VAC


• NEMA Configuration: 5-20R duplex outlet with polarized, grounded connections (2-pole, 3-wire)


• Construction: Non-ferrous materials; nickel-plated brass contacts and integral ground strap


• Hospital Grade: Meets Federal Specification W-C-596 and UL Hospital Grade requirements


• Impact Resistant: Deep nylon face


• Grounding System: Four-point grounding system


• Wiring Method: Back or side wired screw terminals compatible with stranded or solid copper wire (#12#10 AWG)


• Operating Temperature Range: -40°F to +167°F (maximum continuous temperature up to 75°C)


• Includes mounting hardware; wall plate or weatherproof cover included as specified by application needs
