HUBBELL WIRING DEVICE-KELLEMS HBL8300GY Duplex Straight Blade Receptacle,

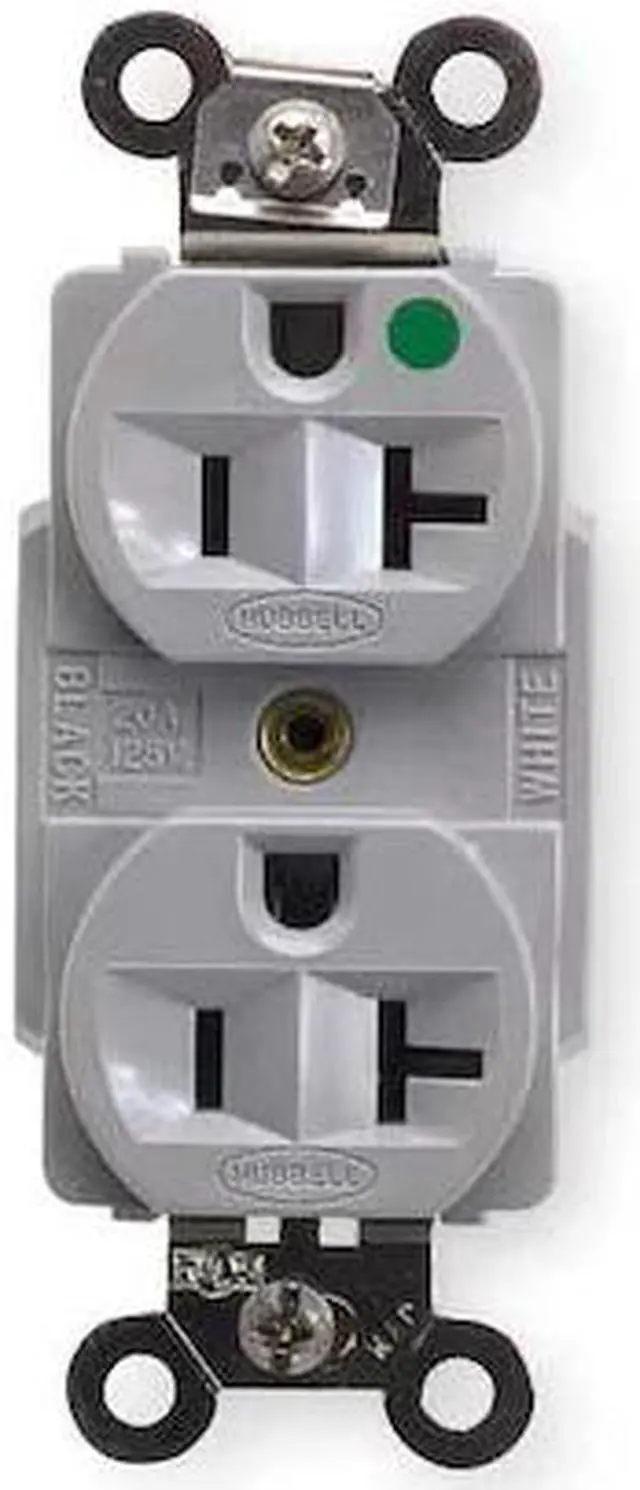

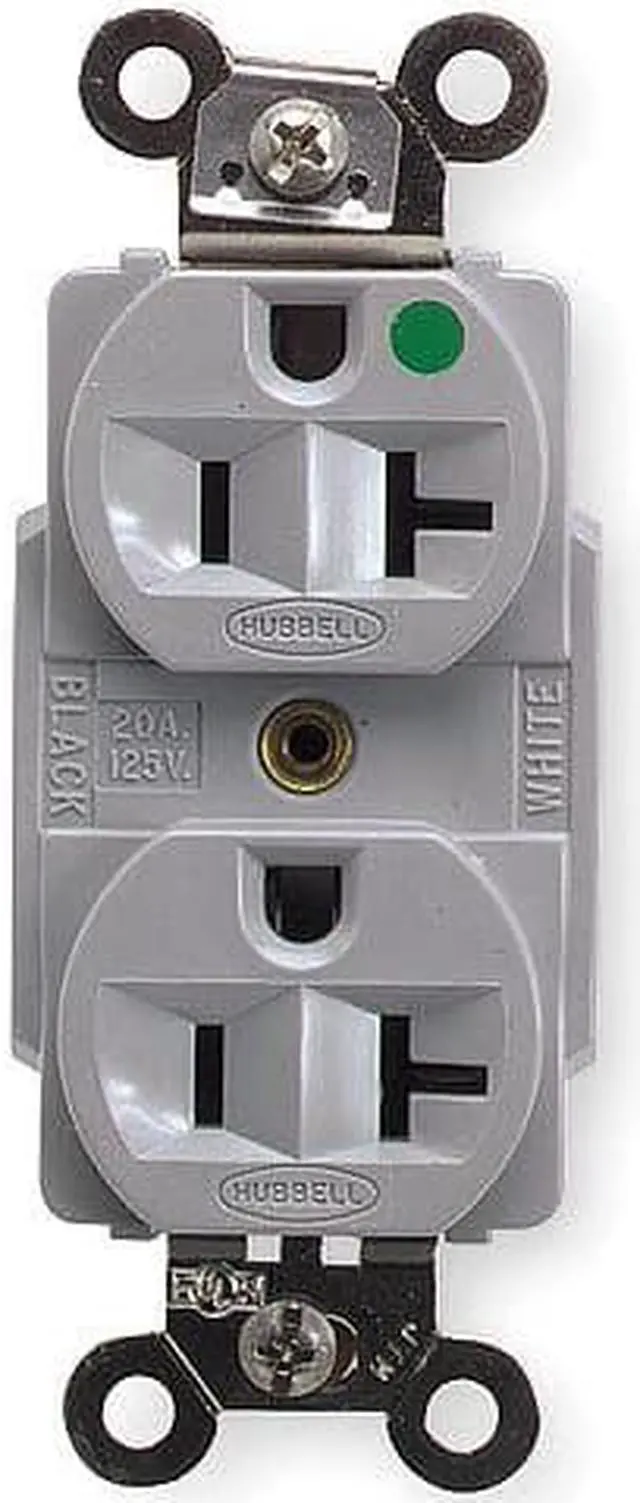

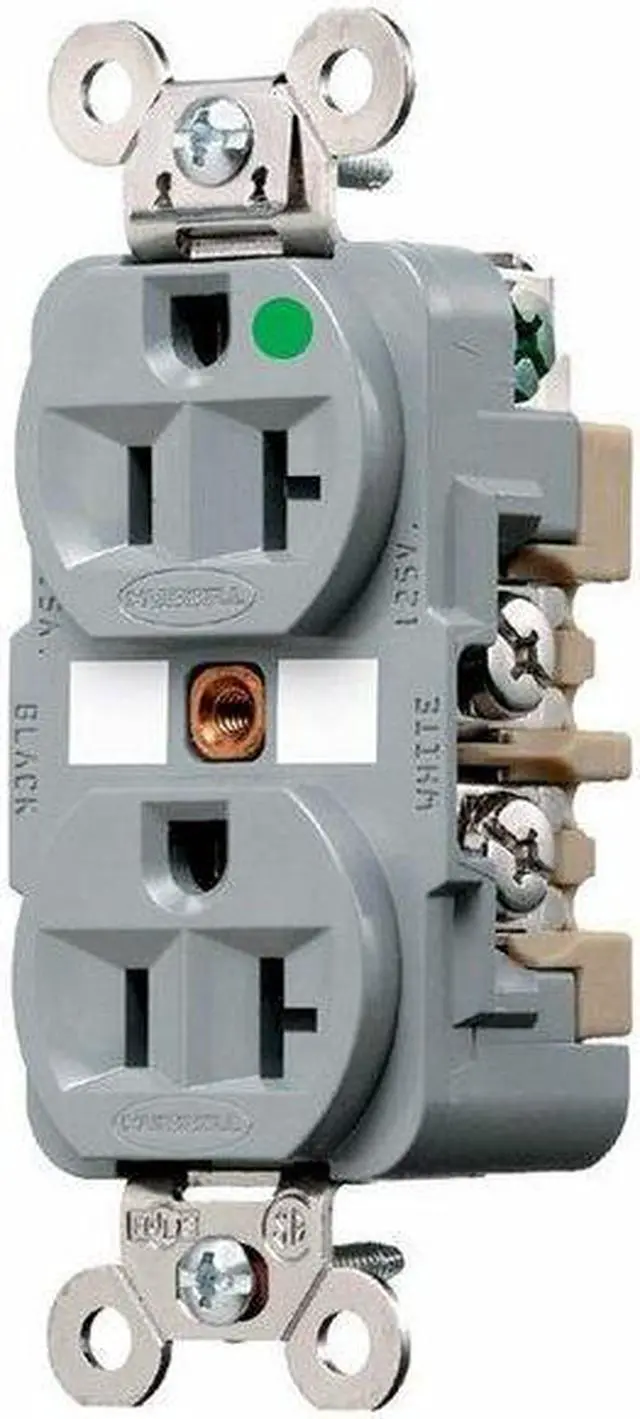

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a Hospital grade electrical receptacle rated for use in specified applications. This duplex outlet features a deep body with an impact resistant thermoplastic polyester face and is rated for 20 amps at 125 volts AC. It includes both back and side wired screw terminals to accommodate #12#10 AWG copper wire, supporting flexible installation options in flush mount applications.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Hospital Grade: Meets UL requirements for hospital grade devices; intended for use in designated areas.


• Contact Design: Nickel-plated brass bypass contacts


• Grounding System: Four-point grounding


• Impact Resistance: Deep face design constructed with impact resistant thermoplastic polyester


• Circuit ID Marking Area: Circuit ID marking area


• Wiring Options: Back and side wired screw terminals accept #12#10 AWG stranded or solid copper wire


• NEMA Configuration: NEMA 5-20R, single phase, two-pole, three-wire grounded configuration


• Operating Temperature Range: Operating temperature range: -40°F to 167°F (-40°C to +75°C)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 standards.
