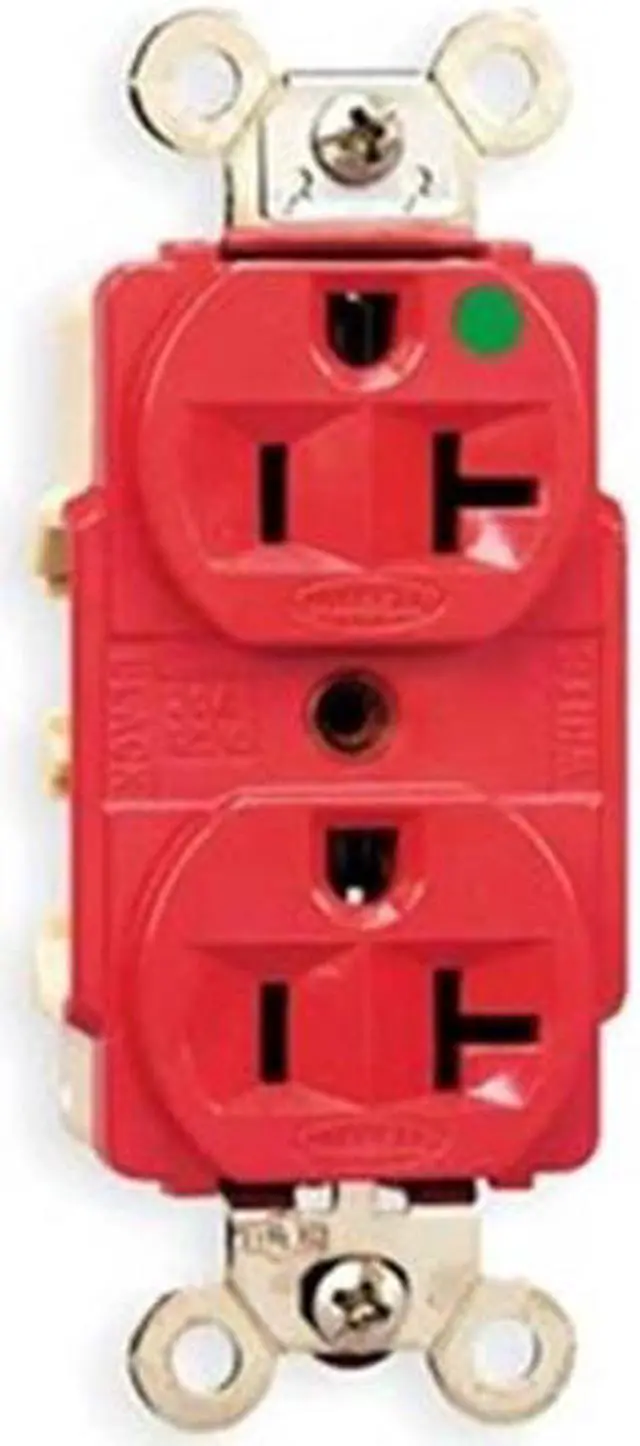

HUBBELL WIRING DEVICE-KELLEMS HBL8300RED Duplex Straight Blade Receptacle,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in various commercial and institutional settings. It features a flush mount design and supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. This device is rated for 20 amps at 125 volts AC and complies with the following standards: UL, CSA, NEMA, and applicable Federal Specifications.

Key Features of the HUBBELL - 20A Duplex Receptacle 125VAC 5-20R RD:

• Amperage/Voltage: Rated for 20 A at 125 V AC


• NEMA Configuration: 5-20R (2-pole, 3-wire)


• Hospital Grade: Rated as hospital grade per relevant standards


• Contact Material: Features nickel-plated brass bypass power contacts


• Grounding System: Four-point grounding system included


• Impact Resistance: Deep face design constructed from thermoplastic polyester material


• Flammability Rating: UL94 V-0 rated materials


• Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C (without impact)


• Circuit Interrupting Capability: Certified for current interrupting at full rated current


• Certain Accessories Included: Grounding clip and mounting hardware included; wallplate or weatherproof cover compatible with duplex opening (not included unless specified)
