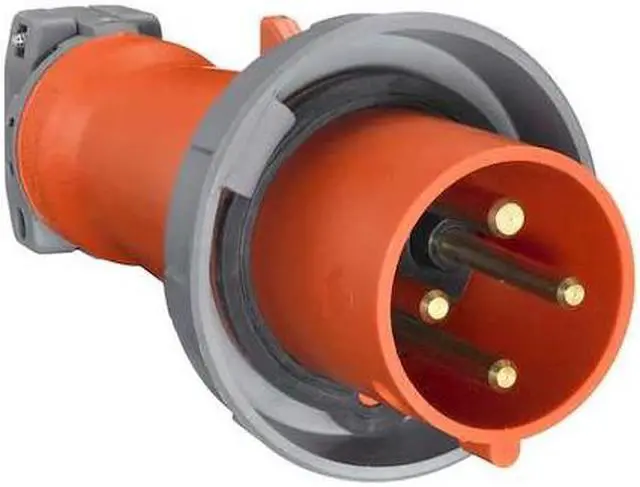

HUBBELL WIRING DEVICE-KELLEMS HBL420P12W IEC Pin and Sleeve Plug,3P,4W,20A,250V

The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. This 3-pole, 4-wire plug is rated for 20A at 125/250V AC and features a rugged non-metallic housing made from Zytel 801 nylon. It uses screw terminals for conductor attachment and includes a gasketed sealing ring; rated IP67.

Key Features of the HUBBELL IEC Pin & Sleeve Plug:

• Current/Voltage Rating: Rated for 20 amps at 125/250V AC single phase


• Pole/Wire Configuration: 3 poles, 4 wires; grounded with IEC grounding style


• Body/Housing Material: Housing material: Zytel 801 nylon


• Watertight Design: Gasketed sealing ring; rated IP67


• NEMA Enclosure Rating: NEMA 4X enclosure rating


• Cable Accommodation: Accepts cable diameters from 0.33 in to 0.83 in; supports wire sizes from #14 AWG to #10 AWG


• Temperature Range: Operates between -40°C and +75°C maximum temperature


• Horsepower Rating: Maximum circuit horsepower rating: 2 hp


• Shrouded Pins: Shrouded pins


• Wire Connection Type: Uses screw terminals for conductor attachment


• Standards Compliance: CSA Certified C22.2 No.182.1, UL E146032, UL IEC60309-1 listed product
