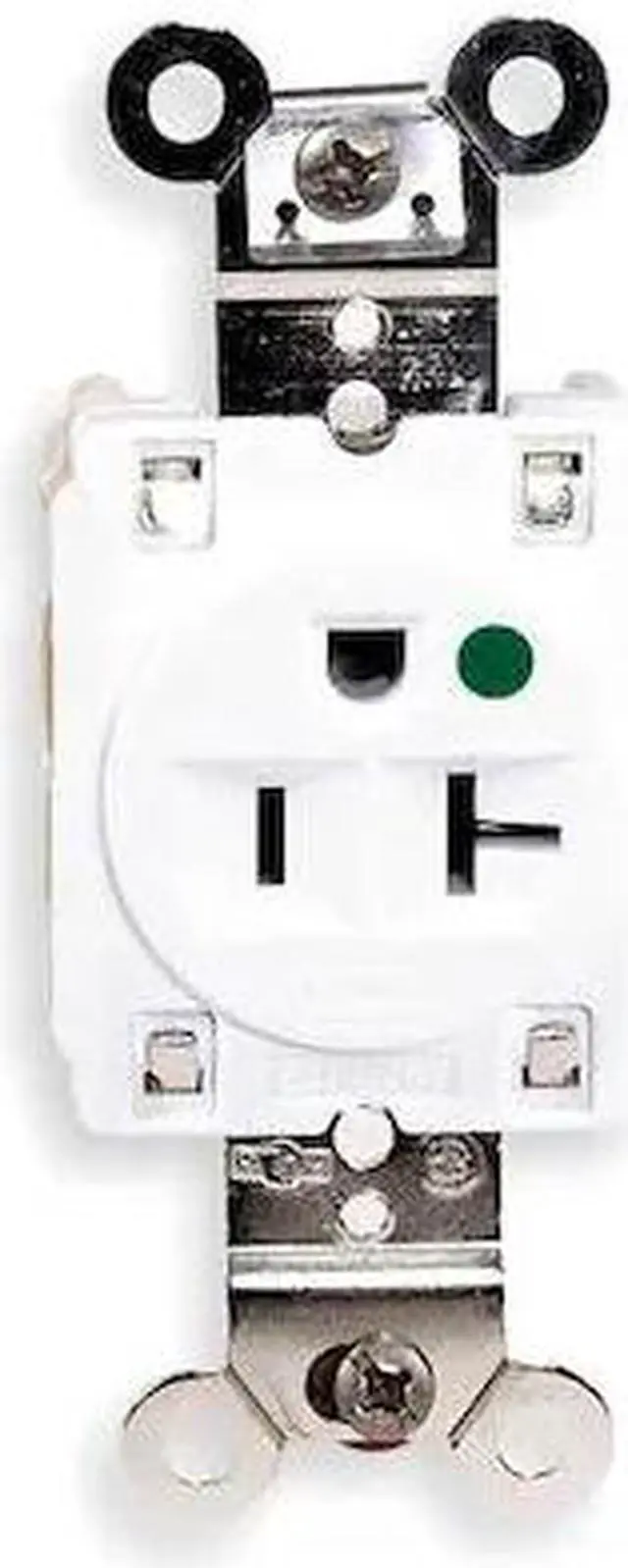

HUBBELL WIRING DEVICE-KELLEMS HBL8310W Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 5-20R Hospital Grade Receptacle is a single flush mount outlet rated for 20A and 125V AC. Suitable for use in applications requiring higher durability, it features a one-piece nickel-plated brass integral ground strap and patented bypass contact design. This receptacle meets hospital grade requirements.

Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20R (2 pole, 3 wire, grounded)


• Mounting Type: Flush mount with included mounting hardware


• Wiring Method: Back and side wired screw terminals; accommodates #12#10 AWG copper wire


• Material: Nylon/reinforced thermoplastic polyester housing with brass contacts


• Operating Temperature Range: -40°C to +75°C (without impact)


• Dielectric Strength: Withstands minimum of 2,000V


• Flammability Ratings: Top UL94V-2; Base UL94V-0 & UL94-5VA


• Certifications/Standards: CSA C22.2 No.42 File 285; Federal Spec W-C-596; NEMA WD-6; UL498 File E2186
