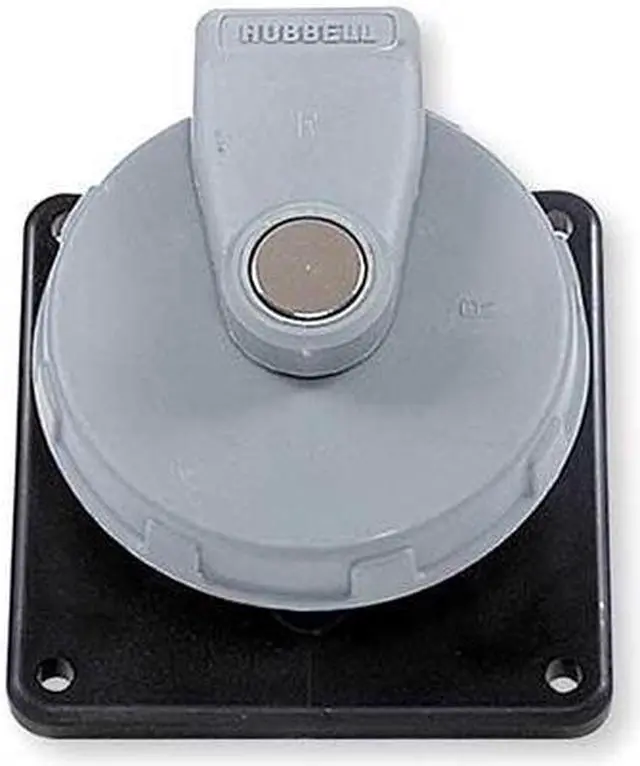

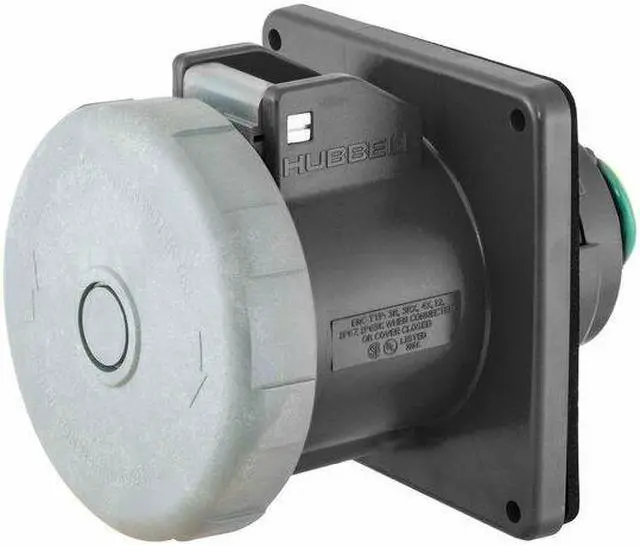

HUBBELL WIRING DEVICE-KELLEMS HBL420R5W Watertight Pin & Sleeve Receptacle, 20

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device designed for industrial use, providing secure power connections in demanding environments. Rated for 20A and 600V AC, this receptacle features a straight connection orientation with screw terminal wire connections, supporting wire sizes from 14 to 10 AWG. The unit includes a flanged design with a spring-loaded cap; IP67 rated and NEMA 4X classified enclosure.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: Rated for 20 amps at 600V AC


• Body Material: Zytel 101 nylon


• Operating Temperature Range: -40°C to 75°C


• Cord Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG


• Number of Poles/Wires: Three poles, four wires configuration


• Enclosure Ratings: IP67, NEMA Type 4X


• Grounding Style: IEC grounding system included


• Resistance Properties: Corrosion resistance per product specifications; impact resistance per product specifications; moisture resistance per product specifications; IP67 rated construction


• Screw Material: Made with stainless steel screws for durability in harsh conditions


• Standards Compliance: Meets CSA C22.2 No.182.1, IEC 60309-2, UL E146032, UL IEC60309-1 standards
