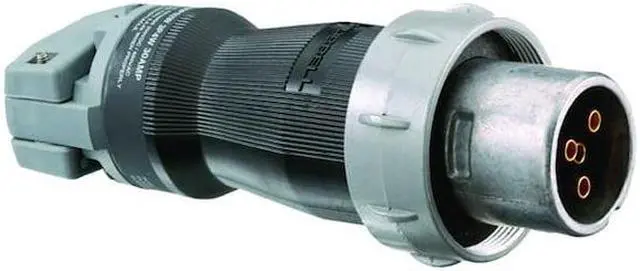

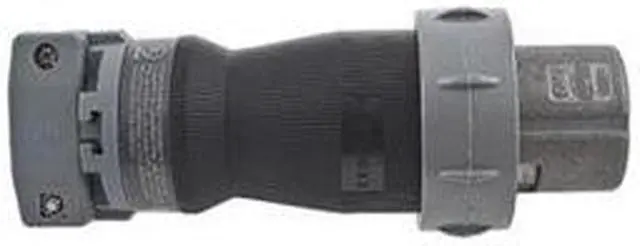

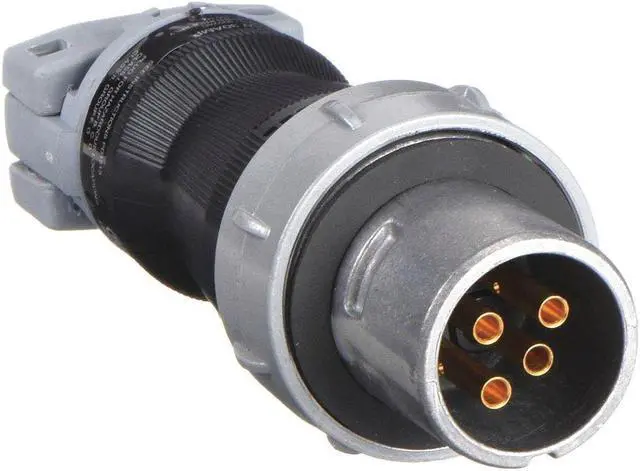

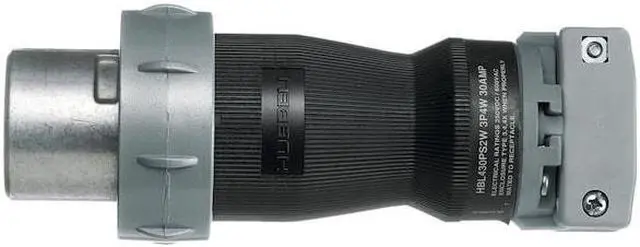

HUBBELL WIRING DEVICE-KELLEMS HBL430PS2W Pin & Sleeve Plug, 30 A, 600V AC,

The HUBBELL Pin and Sleeve Plug, 3P, 4W, 30A, 600VAC is an electrical connector rated for industrial and commercial applications.

Key Features of the HUBBELL Pin & Sleeve Plug:

• Current/Voltage Rating: Rated for 30 amps at up to 600V AC or 250V DC (three-phase).


• Construction: with a metallic shroud and non-metallic Valox 357 housing


• NEMA Enclosure Rating: Type 4X for protection against water and dust ingress.


• Sleeve Contacts: All-brass sleeve contacts


• Locking Ring: UL Type 4X; Locking ring; UL Type 4X



• Cable Accommodation: Accepts cable diameters from 0.36 in to 0.78 in; maximum wire size of 8 AWG.


• Temperature Range: Operates between -40°C minimum and +75°C maximum temperature.


• Connection Orientation/Wire Connection Type: Straight orientation with screw terminals for secure wiring.


• Certifications/Standards: Complies with the following certifications/standards: CSA Certified C22.2 No.159 & Type 4X; UL Listed (UL1010, UL1682); UL94 V-0 flammability rating; meets multiple industry standards for performance requirements.
