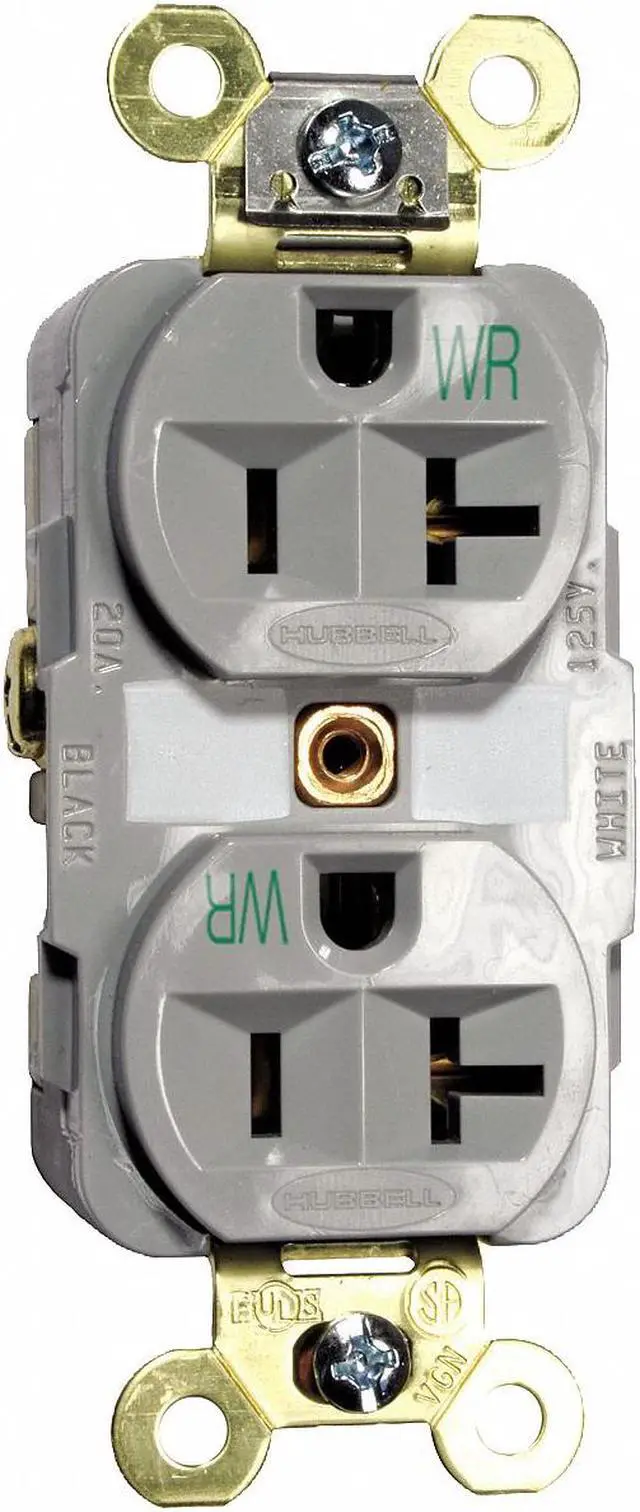

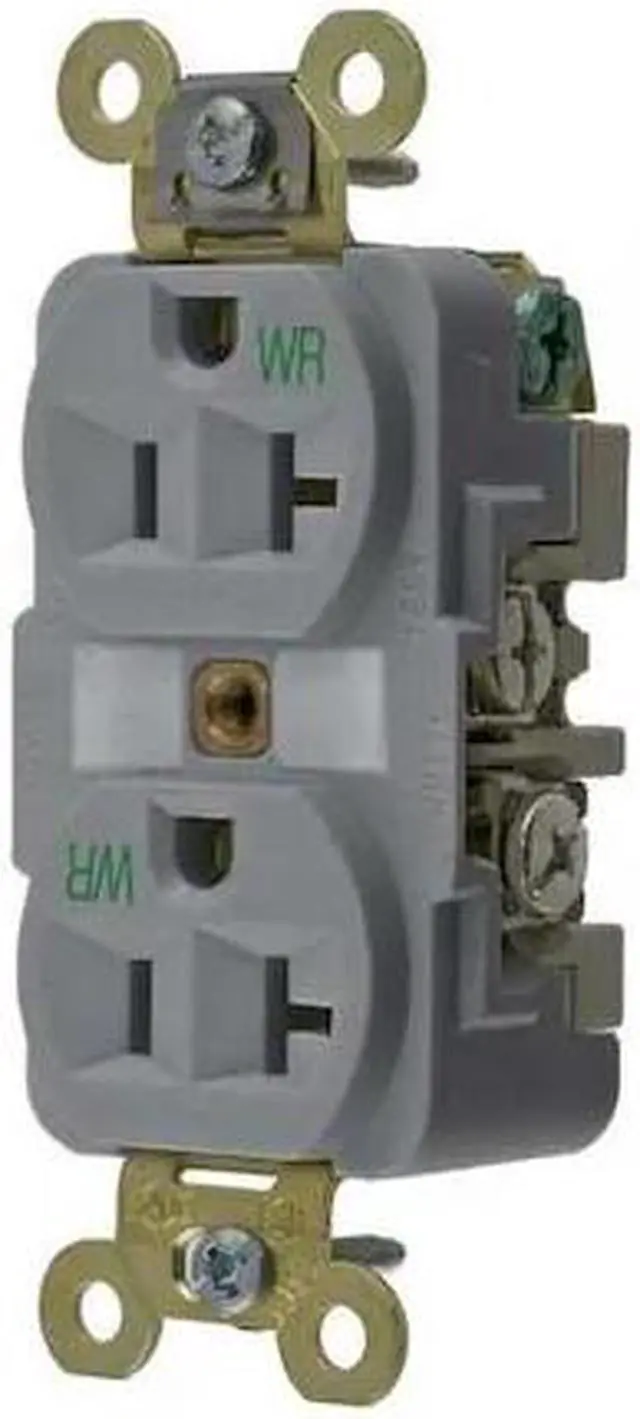

HUBBELL WIRING DEVICE-KELLEMS HBL5362GYWR Straight Blade Receptacle, 5-20R, 20

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a traditional duplex straight blade receptacle intended for use in demanding environments; meets specification-grade requirements. Rated for 20 amps and 125 volts AC, this device is constructed with materials rated as weather resistant per applicable standards. It includes both back and side wired screw terminals to accommodate #12 to #10 AWG copper wire, with a grounded design and finder groove face style for circuit identification.

Key Features of the HUBBELL - 20A Duplex Receptacle:

• Amperage/Voltage: Rated for 20 A, 125 VAC operation


• NEMA Configuration: NEMA 5-20R, standard duplex outlet type


• Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12#10 AWG)


• Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts


• Weather Resistant: Rated for resistance to environmental exposure per applicable standards


• Mounting Type: Flush mount installation with included mounting hardware


• Grounding Features: One-piece brass integral ground strap; includes grounding clip


• Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant


• Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C without impact
