HUBBELL WIRING DEVICE-KELLEMS HBL8300SGIA Straight Blade Receptacle, 5-20R, 20

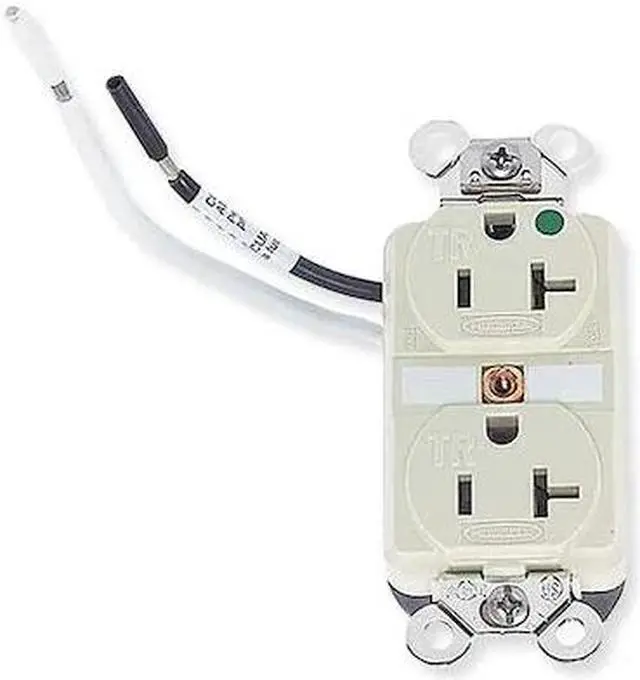

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex, hospital grade receptacle suitable for demanding applications. It features a grounded, tamper-resistant design with nickel-plated brass contacts and thermoplastic housing. This device is suitable for indoor applications where high durability and reliable electrical performance are required.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Amperage/Voltage: Rated for 20 A at 125 VAC


• NEMA Configuration: 5-20R, duplex outlet type


• Hospital Grade: Meets hospital grade requirements


• Tamper Resistant: Tamper-resistant design


• Grounding: Four-point grounding system; accommodates #12#10 AWG copper wire


• Contact Material: Nickel-plated brass contacts


• Wire Connection Type: Wire leads for fast installation; screw terminals also available (back or side wiring)


• Flammability Rating: UL 94V-0 and UL 94-5 VA rated thermoplastic housing


• Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


• Certain Standards Met: CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
