HUBBELL WIRING DEVICE-KELLEMS HBL460R9W Watertight Pin & Sleeve Receptacle, 60

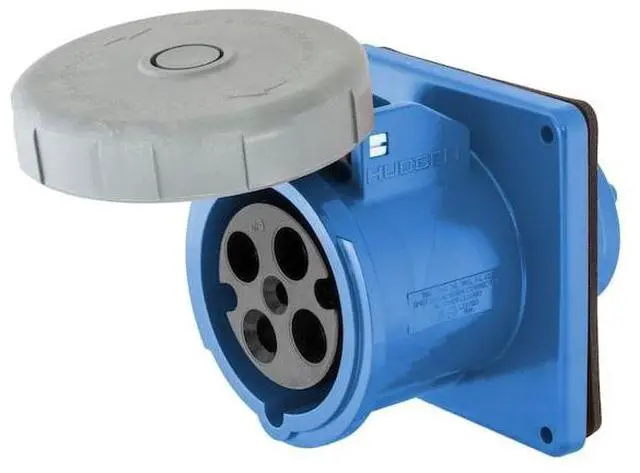

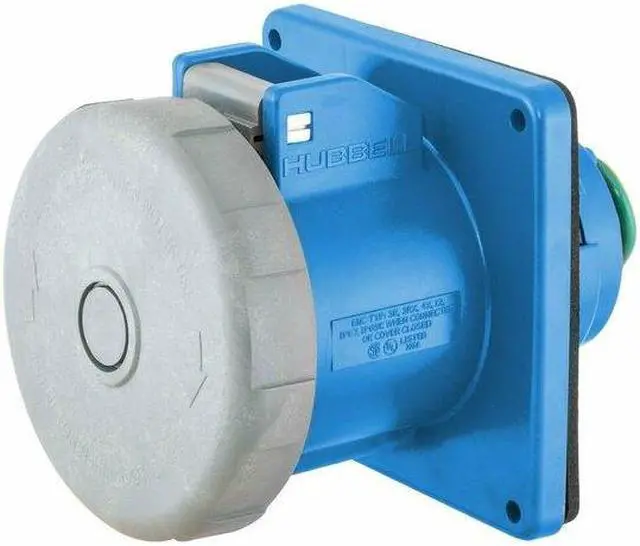

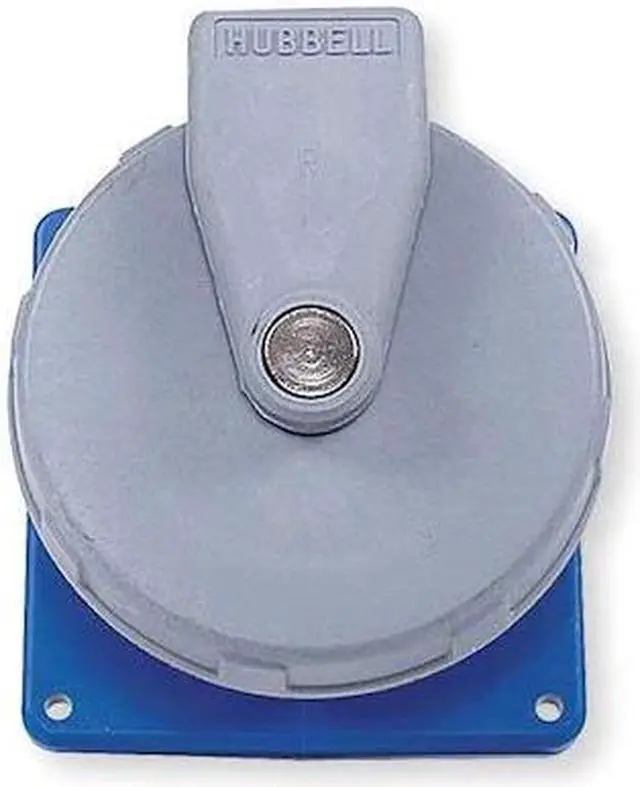

The HUBBELL IEC Pin and Sleeve Receptacle is suitable for industrial applications, rated for 60A and 250V AC in three-phase systems. It features a rugged Zytel 101 nylon body with a flanged design, providing impact resistance and moisture protection. The receptacle accommodates wire sizes from 8 to 2 AWG and uses screw terminals for secure connections.

Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:

• Current/Voltage Rating: Rated for 60 amps and 250V AC, three-phase operation


• Body Material: Zytel 101 nylon


• Ingress Protection: IP67 rated; NEMA Type 4X enclosure


• Cord Accommodation: Accepts wire sizes from 8 to 2 AWG


• Operating Temperature Range: -40°C to +75°C maximum operating temperature


• Connection Orientation: Straight entry with screw terminal connections


• Grounding Style: IEC grounding configuration; shrouded contacts enhance safety during connection/disconnection


• Resistance Properties: Impact-resistant, moisture-resistant construction with neoprene gasket material


• Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, and IEC standards
