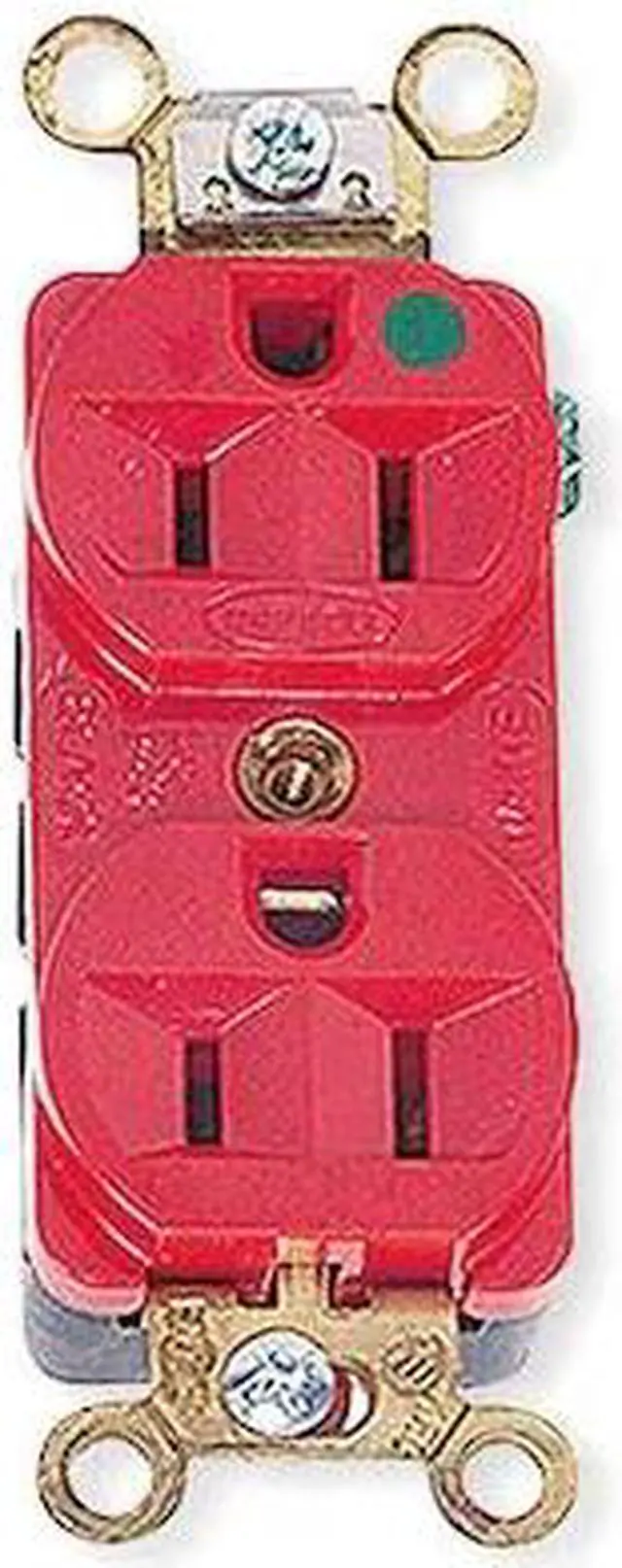

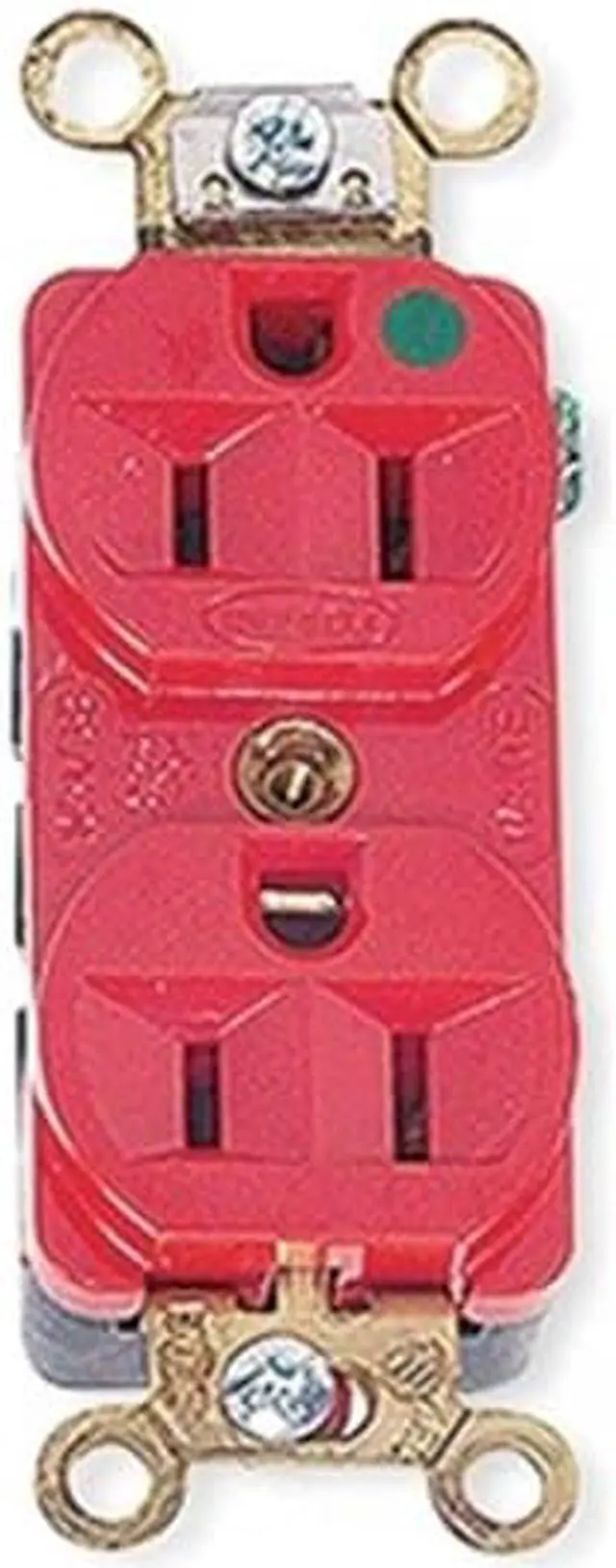

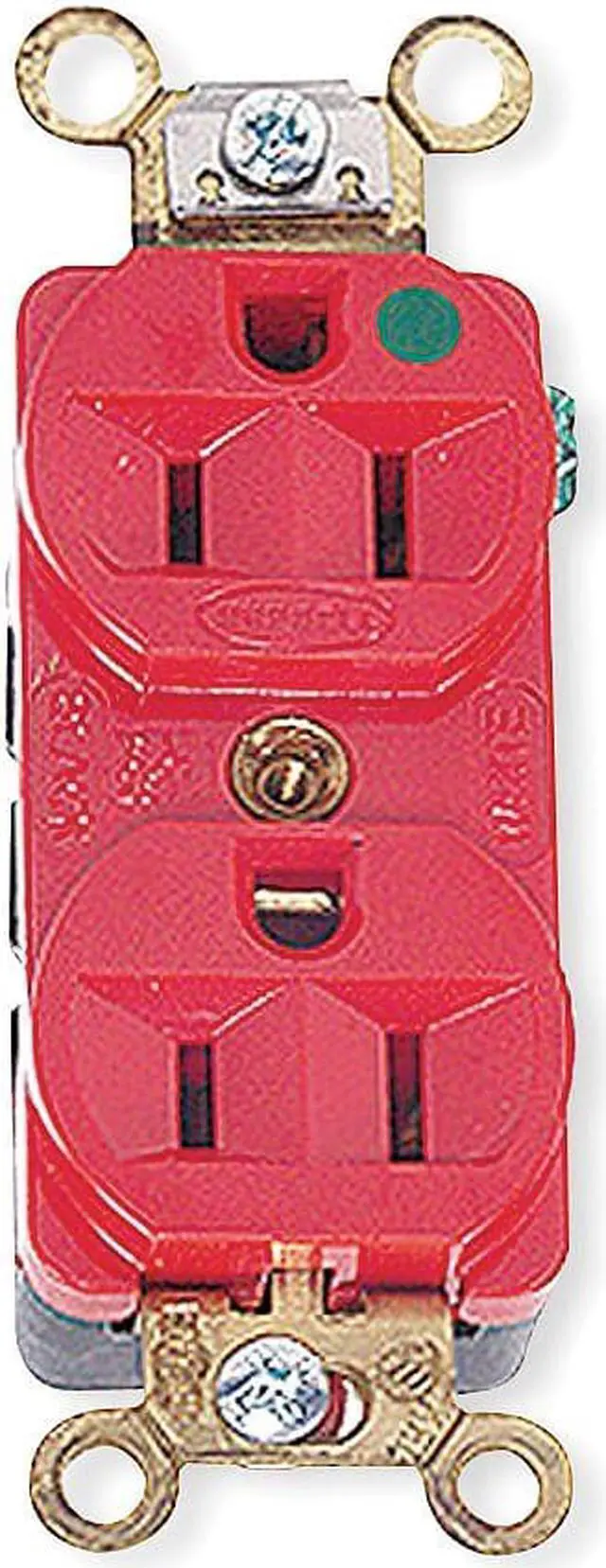

HUBBELL WIRING DEVICE-KELLEMS HBL8300HRED Straight Blade Receptacle, 5-20R, 20

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in commercial and healthcare environments. It features a slender, compact design with a nylon face and housing. The device supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Rated for 20 amps at 125 volts AC, this receptacle complies with UL Hospital Grade requirements and multiple industry standards.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Hospital Grade: Complies with Federal Specification W-C-596 and UL498 standards for hospital grade devices.


• Amperage/Voltage Rating: Rated for 20 A at 125 V AC; NEMA configuration 5-20R.


• Construction: Nylon face and housing with nickel-plated steel clamping plate; PBT base material.


• Wiring Options: Back and side wired screw terminals compatible with #12#10 AWG copper wire only.


• Grounding System: Four-point grounding system; includes stainless steel automatic self-grounding staple.


• Operating Conditions: Rated for operation at temperatures from -40°C (without impact) up to +75°C continuous operation; dielectric strength rated at a minimum of 2,000V.


• Flammability Rating: UL94 V-0 rated materials used throughout construction.


• Mounting Type: Flush mount installation with included mounting hardware; standard size product dimensions (3.28 in x 1.33 in x 1.05 in).


• Certifications & Standards: CSA Certified C22.2 No.42 File285, NEMA WD-6 compliant, UL Listed to UL498 File E2186.
