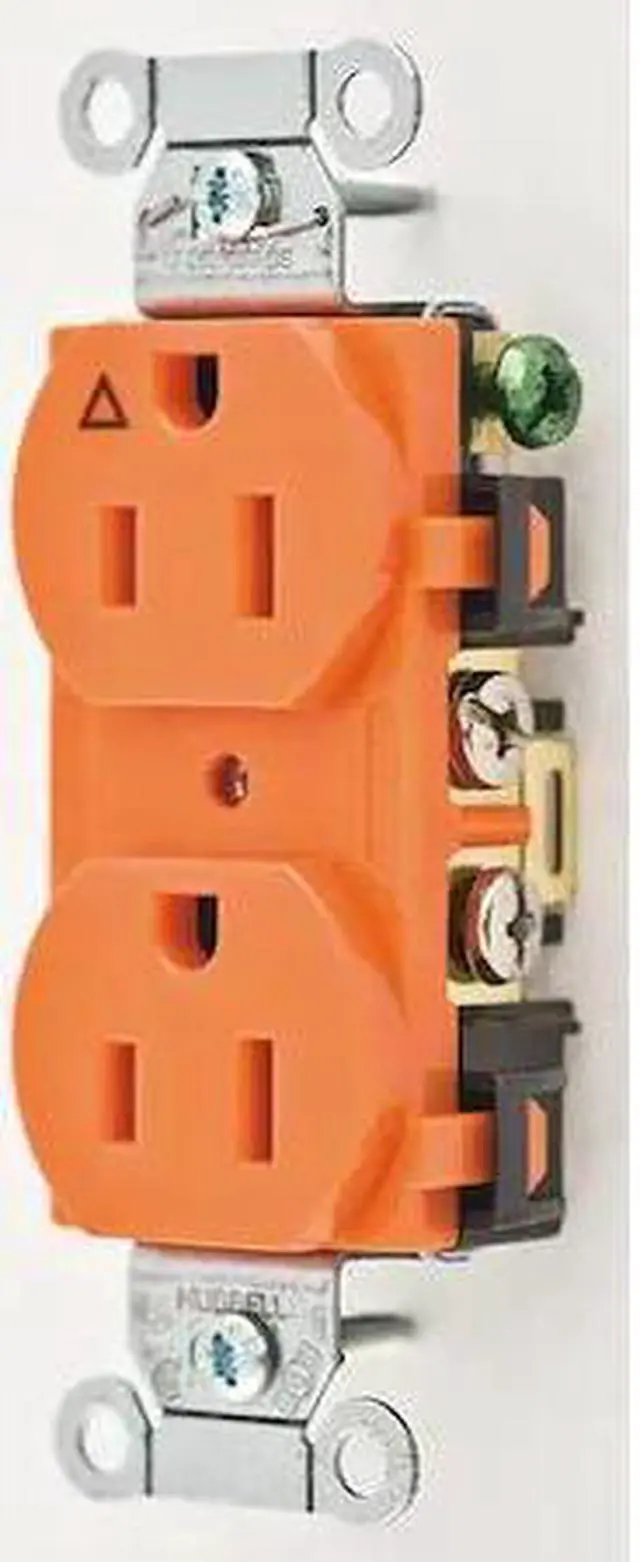

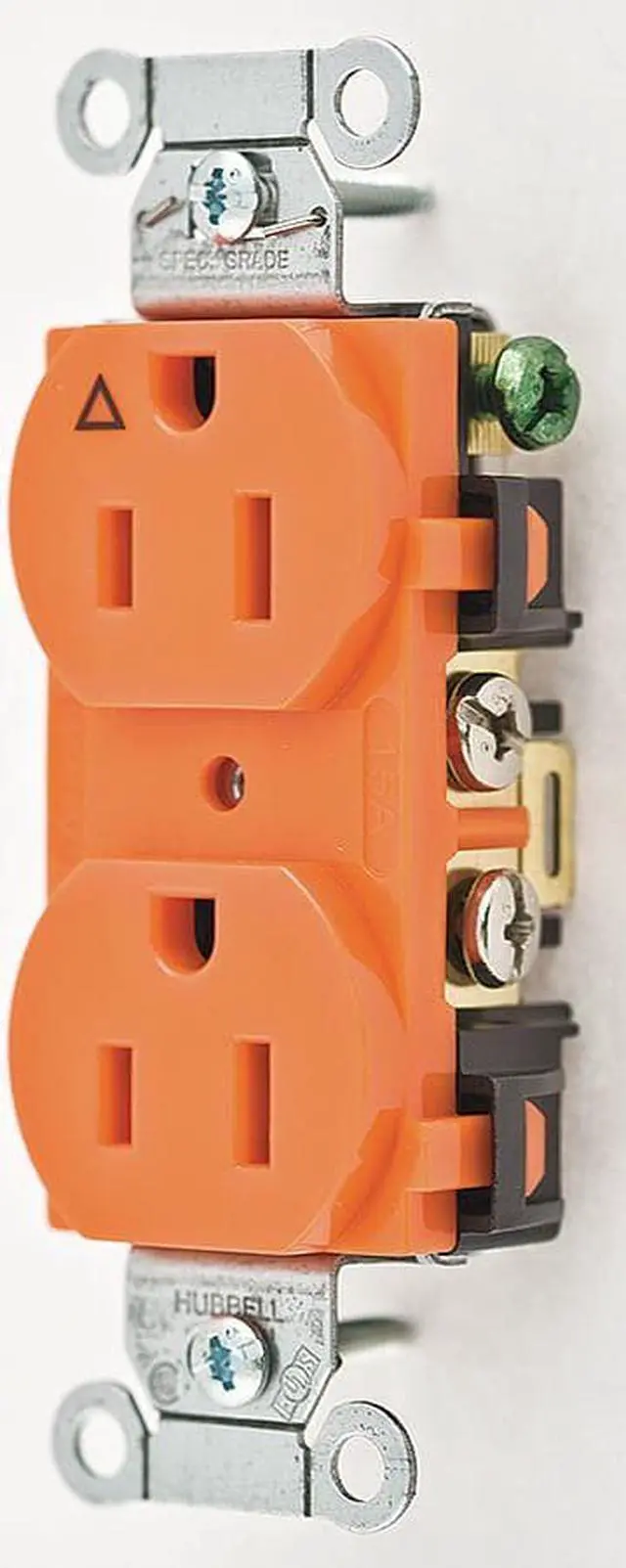

HUBBELL WIRING DEVICE-KELLEMS IG15CR Straight Blade Receptacle, 5-15R, 15 A,

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is suitable for commercial specification grade applications. This receptacle features an isolated ground system, which separates the ground contacts from the mounting strap. It is rated for 15 amps and 125 volts, with side-wired screw terminals suitable for #14#10 AWG copper conductors.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Isolated Ground: Features insulation barrier construction that isolates ground contacts from the mounting strap.


• Electrical Ratings: Rated for 15 A and 125 V AC; NEMA configuration 5-15R.


• Material Construction: Nylon base and face with brass power and ground contacts; galvanized steel mounting hardware included.


• Wiring Method: Side-wired screw terminals accommodate #14#10 AWG copper stranded or solid wire.


• Performance: Rated for dielectric voltage of at least 2,000V; certified for current interrupting at rated current.


• Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186.

KEY_TAB
