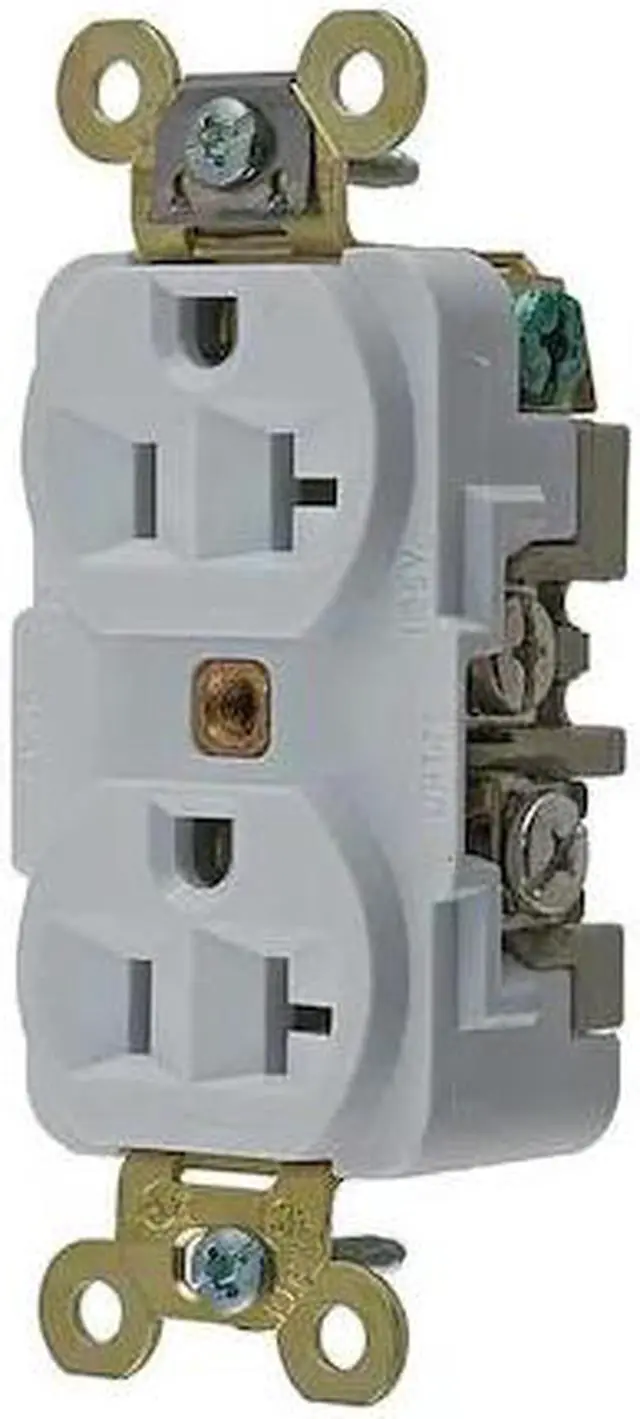

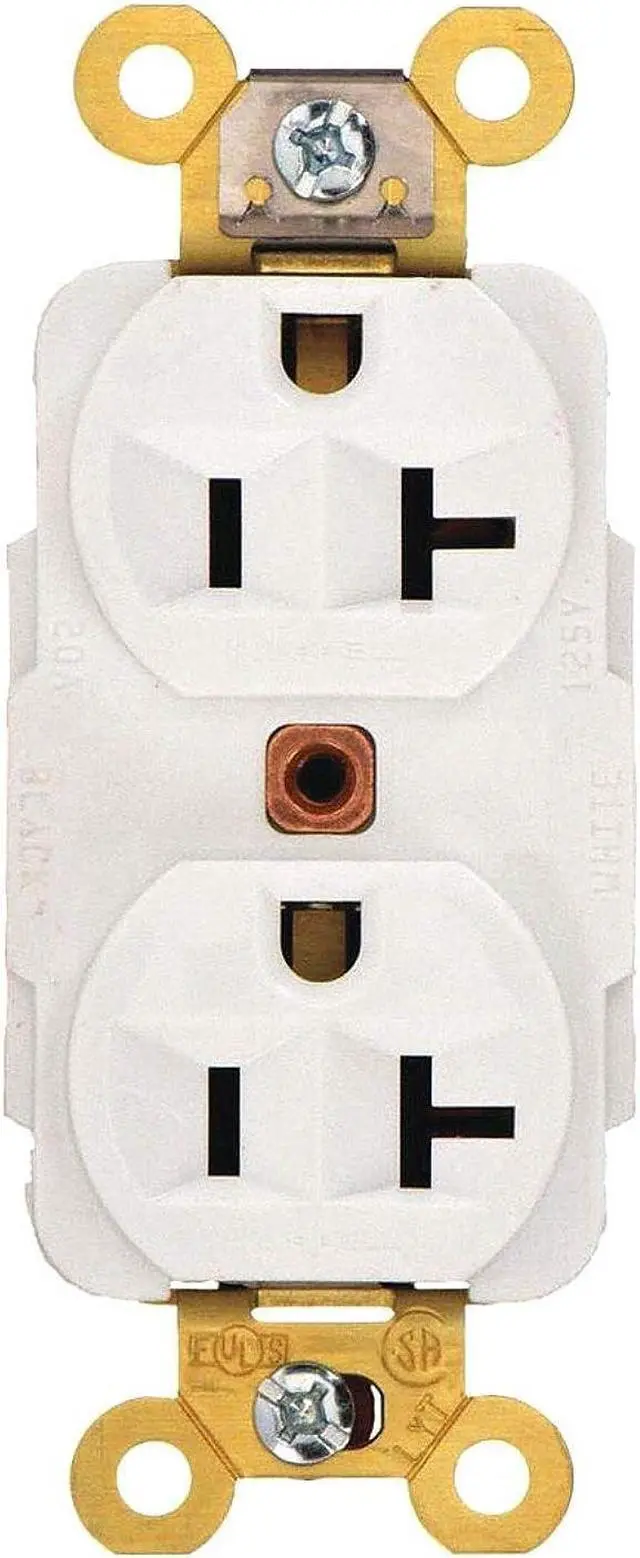

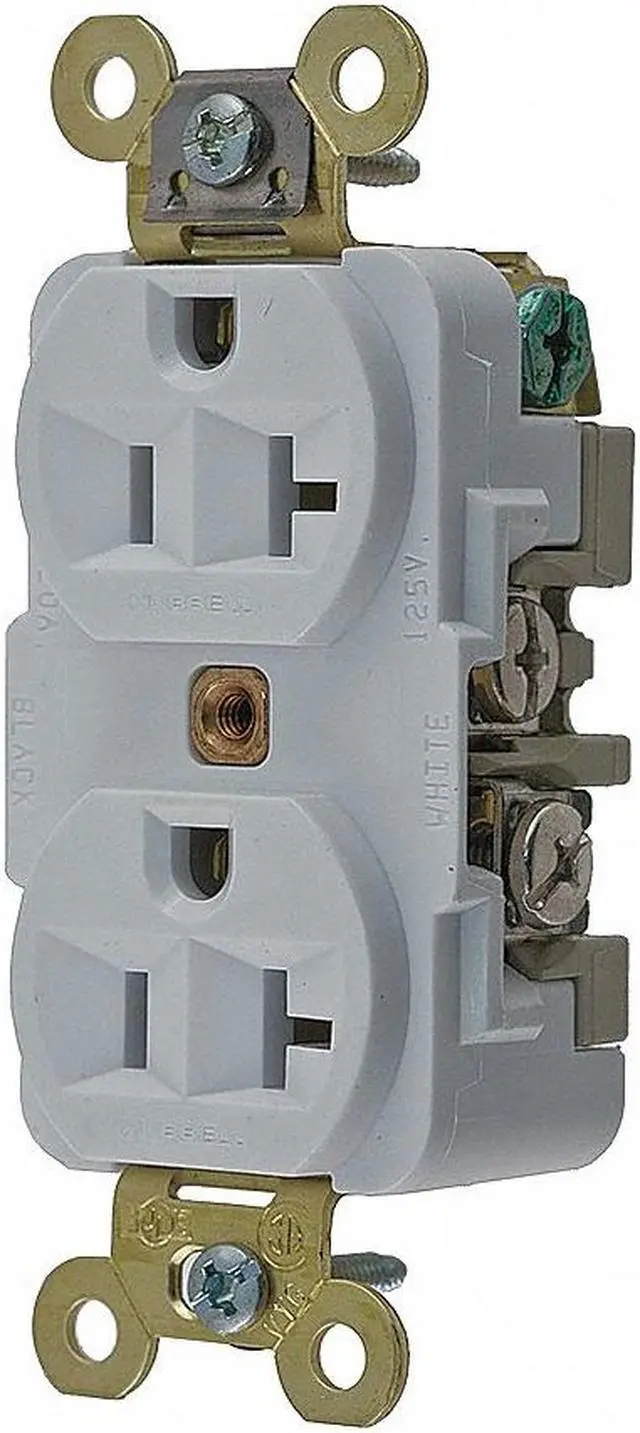

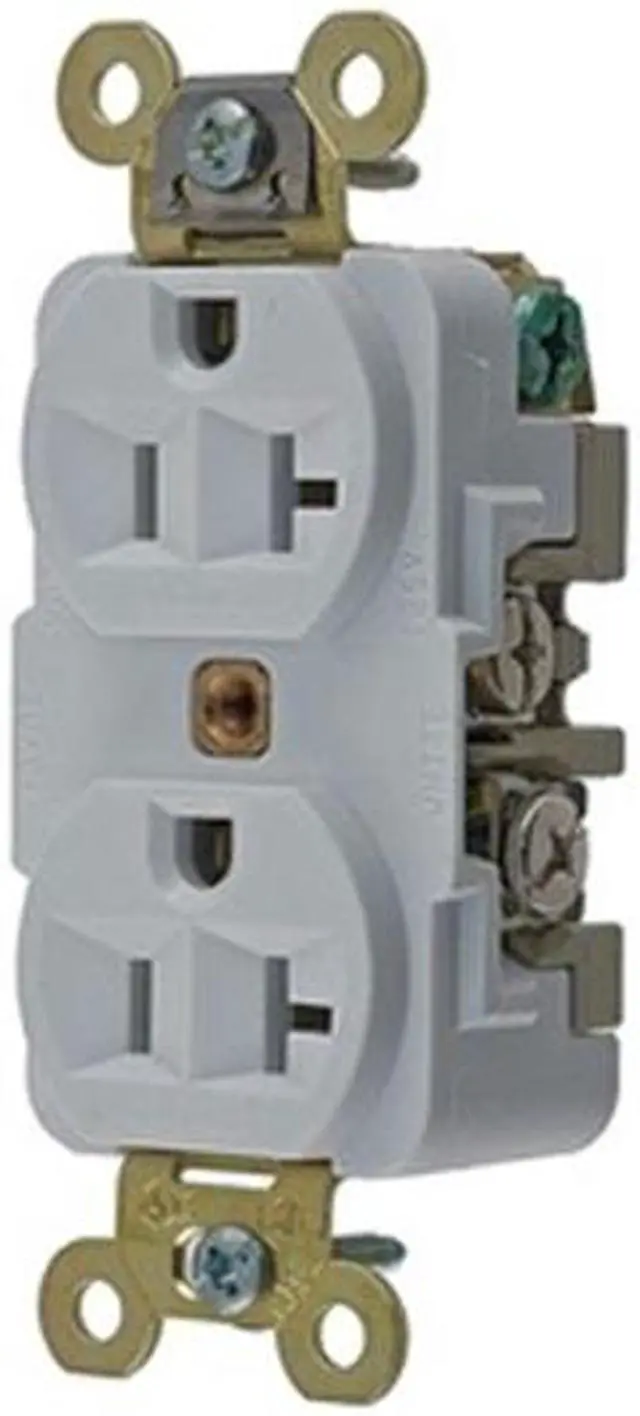

HUBBELL WIRING DEVICE-KELLEMS HBL5362W Duplex Straight Blade Receptacle, 5-20R,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex electrical outlet suitable for specification grade applications. This receptacle features a standard NEMA 5-20R configuration, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. It is rated for 20 amps at 125 volts AC and includes grounding provisions with a one-piece brass integral ground strap. The device is suitable for indoor dry locations, including industrial environments.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Amperage/Voltage Rating: Rated for 20 A, 125 VAC operation


• NEMA Configuration: Standard NEMA 5-20R duplex outlet


• Wiring Method: Back and side wired screw terminals support #14#10 AWG copper conductors


• Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts


• Mounting Type: Flush mount design with included mounting hardware


• Grounding: Grounded with stainless steel auto ground clip and one-piece brass ground strap


• Operating Temperature Range: -40°C to +75°C (without impact)


• Certification & Standards Compliance: UL Listed to UL498, CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant


• Dielectric Strength & Flammability Ratings: Withstands minimum dielectric voltage of 2,000V; top flammability rating UL94V-2/base UL94V-0 or better
