HUBBELL WIRING DEVICE-KELLEMS HBL8200 Duplex Straight Blade Receptacle, 5-15R,

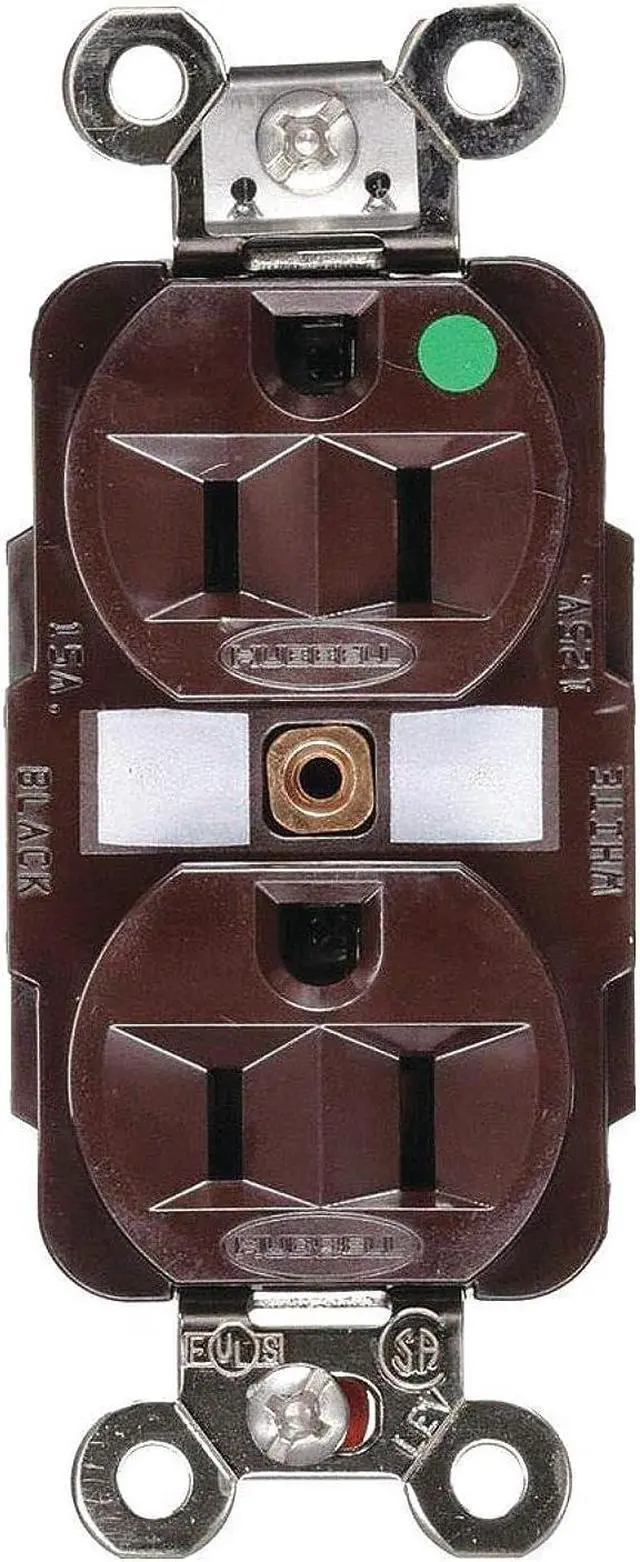

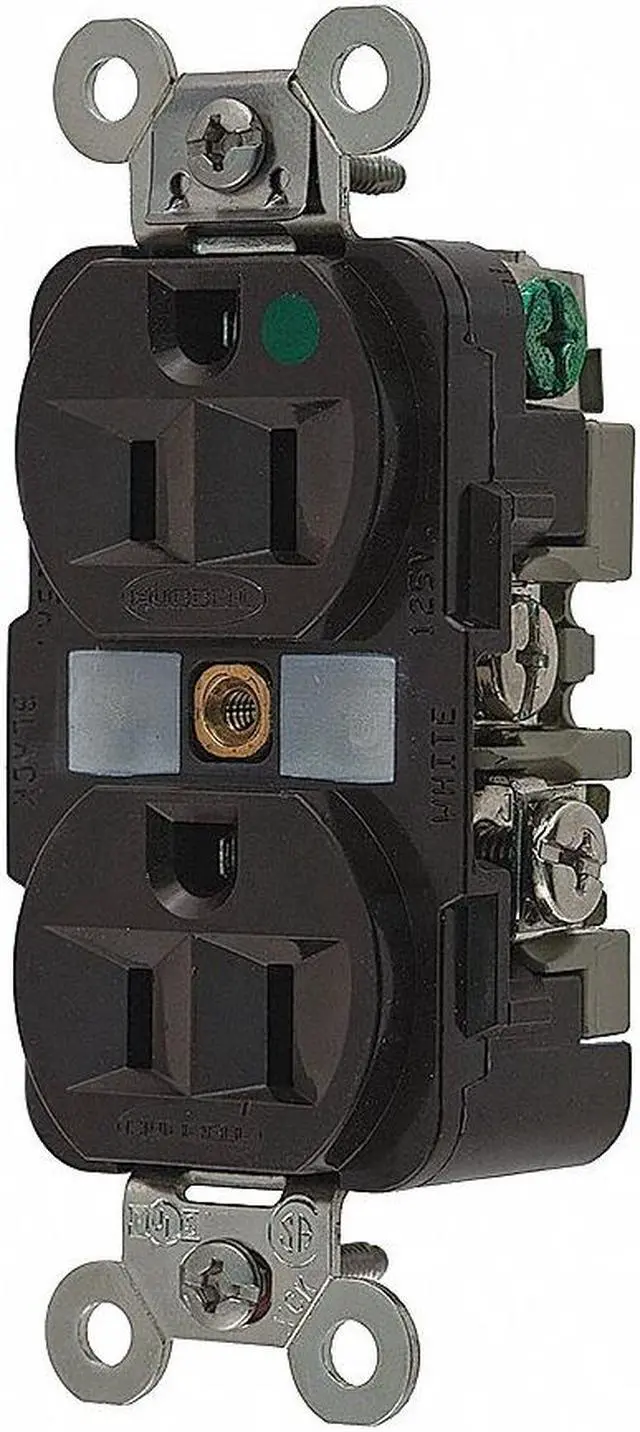

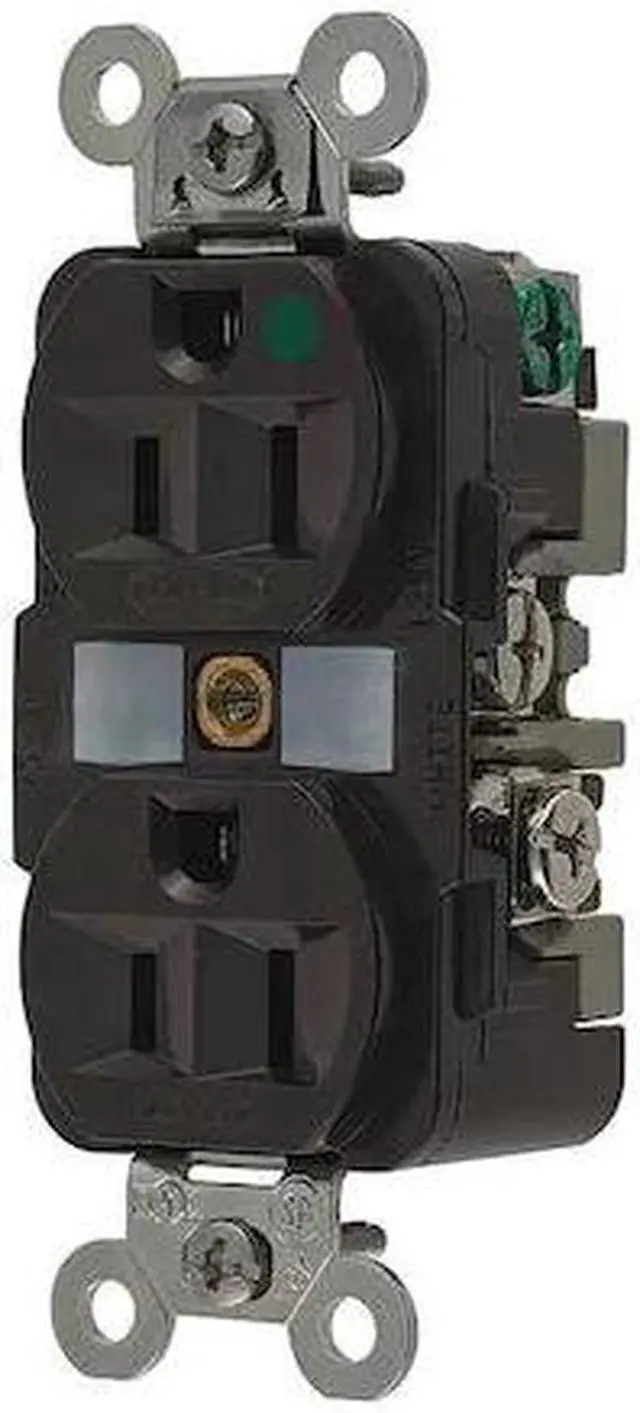

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex outlet rated for use in hospital grade environments. It features a deep body design with circuit ID face and is constructed from impact-resistant thermoplastic material. This receptacle is UL Listed to UL498 File E2186 and includes bypass and ground contact designs to provide redundant grounding and increased contact pressure.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Amperage/Voltage: Rated for 15 A, 125 VAC operation


• NEMA Configuration: 5-15R, standard duplex outlet type


• Wiring Method: Back and side wired screw terminals accommodate #14#10 AWG copper wire


• Contact Material: Nickel-plated brass contacts


• Grounding System: Four-point grounding


• Impact Resistance: Deep face design resists breakage in high-abuse areas


• Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


• Flammability Rating: UL94 V-0 rated thermoplastic housing for enhanced resistance to ignition


• Operating Temperature Range: -40°C (w/o impact) to +75°C continuous use


• Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
